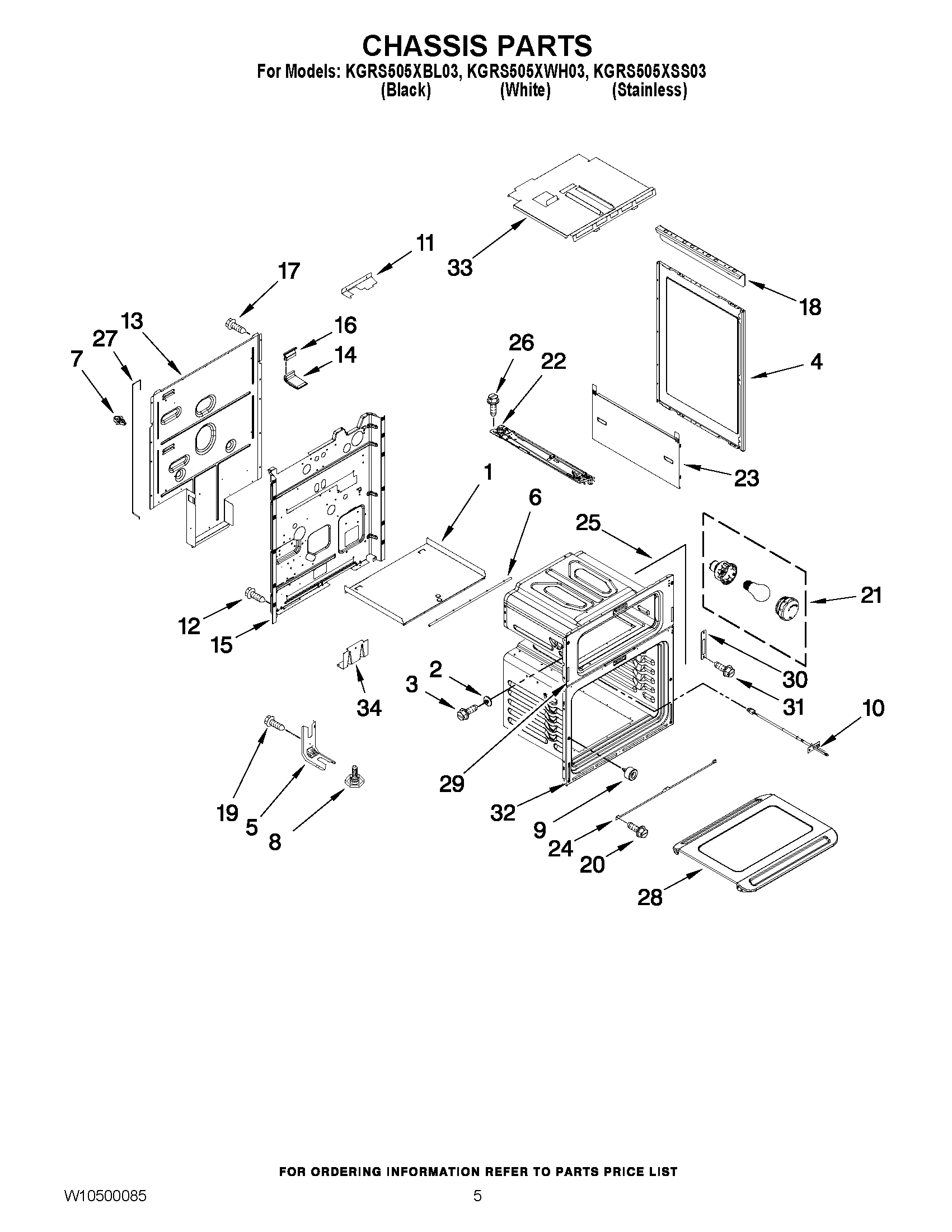

KGRS505XWH03 04 – CHASSIS PARTS

Products

Position	Product
NI	W11688777 Whirlpool Insulation
NI	W11688385 Whirlpool Insulation
NI	W11684769 Whirlpool Insulation
NI	W11684919 Whirlpool Insulation
NI	W11685611 Whirlpool Insulation
1	W10319038 Whirlpool Heat Shield
2	WPW10237689 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4	WPW10330376 Whirlpool Side Panel
4	ASSEMBLY, SIDE PANEL (BLACK)
5	BRACKET, ANTI TIP
6	W10319000 Whirlpool Oven Gasket Assembly
7	GUIDE, ROD
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	SCREW (BLACK)
14	W10272519 Whirlpool Oven Flue
14	W11243157 Whirlpool Oven Flue
15	WPW10260580 Whirlpool Rear Cover
16	W10321445 Whirlpool Oven Flue Assembly
16	W10321446 Whirlpool Oven Flue
17	WPW10261387 Whirlpool Wire Cover
18	W10319087 Whirlpool Support Bracket
19	SCREW, ANTI-TIP KIT
21	ASSEMBLY, LIGHT
22	WPW10471348 Whirlpool Door Latch
23	WPW10253471 Whirlpool Shield
24	TRIM, KICKPLATE
25	WPW10269069 Whirlpool Door Gasket
25	W10318928 Whirlpool Door Gasket
26	SCREW
27	ROD, SHUTOFF
28	WPW10292551 Whirlpool Broil Pan
29	FRONT, MAIN UPPER
30	COVER, HINGE UPPER
30	W10410463 Whirlpool Cover Assembly
30	W10410461 Whirlpool Cover
31	Screw
32	WPW10308654 Whirlpool Front Frame
33	W10324643 Whirlpool Support
34	W10260703 Whirlpool Support
