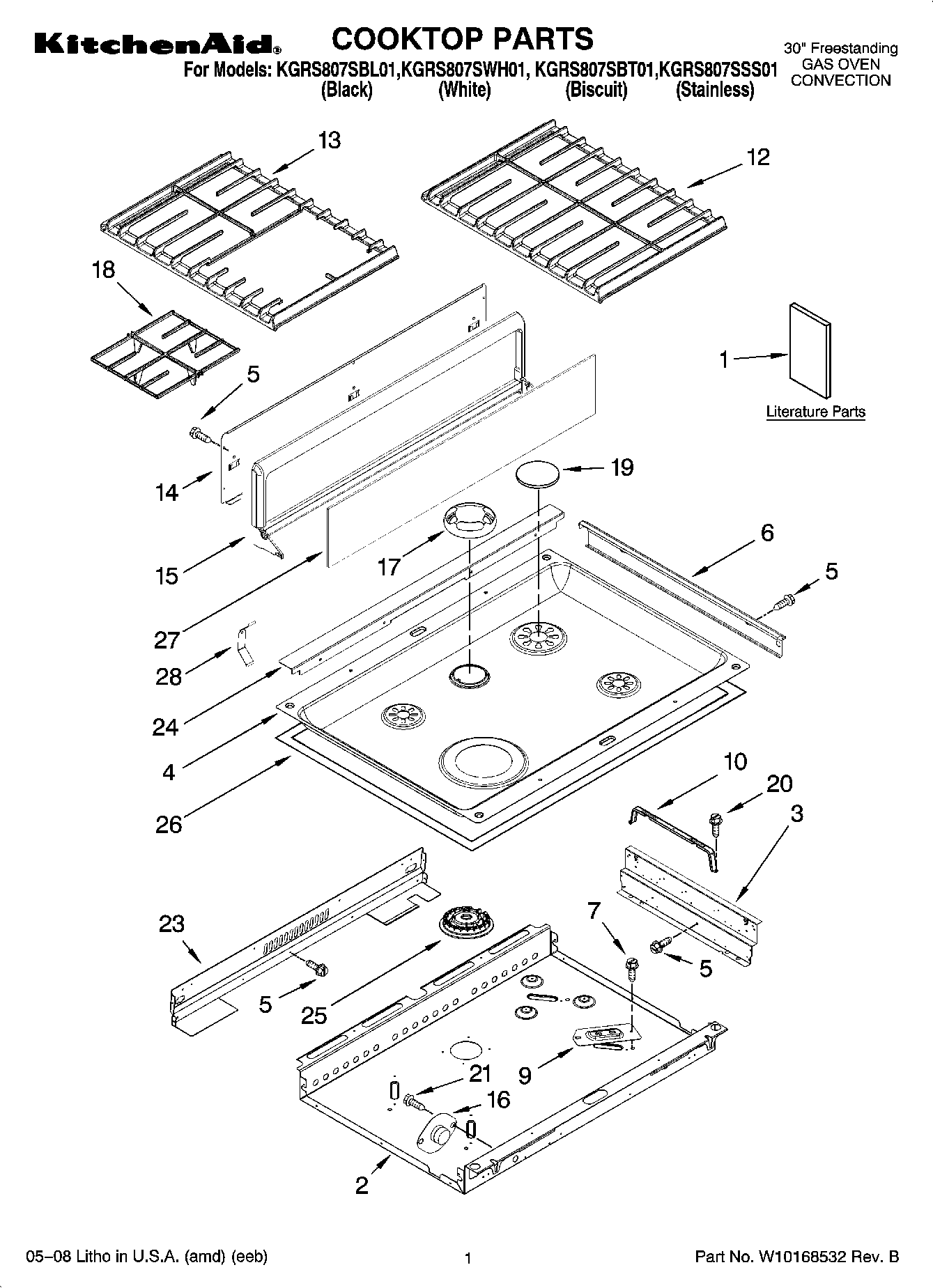

KGRS807SBL01 01 – COOKTOP PARTS

KGRS807SBL01 01 – COOKTOP PARTS

Written by

in

KGRS807SBL01 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Easy Set Guide
1Use & Care Guide
1Anti-Tip Instruct.
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (French)
1Tech Sheet (English)
2Burner Box
3Bracket, Mounting
4Cooktop (White)
4Cooktop (Biscuit)
4Cooktop (Black/Stainless)
5WP3196557 Whirlpool Screw
6Trim, Cooktop Right (White)
6Trim, Cooktop Right (Stainless)
6Trim, Cooktop Left (Stainless)
6Trim, Cooktop Right (Black)
6Trim, Cooktop Right (Biscuit)
6Trim, Cooktop Left (Biscuit)
6Trim, Cooktop Left (White)
6Trim, Cooktop Left (Black)
7WP12990527 Whirlpool Microwave Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
12Grate, Burner (RH)
12Grate, Burner Right (Satin Moleskin)
12Grate, Burner Right (Satin Cumberland)
13Grate, Burner Left (Stain Moleskin)
13Grate, Burner (LH)
13Grate, Burner Left (Satin Cumberland)
14Panel, Backsplash
15Backsplash (Biscuit)
15Backsplash (Black)
15Backsplash (White)
15Gasket (Gray)
15Gasket, Backsplash
15Backsplash
16WP9759944 Whirlpool Thermostat
17Vent, Center (Biscuit)
17Vent, Center (White)
17Vent, Center (Black)
18Grate, Insert (Satin Cumberland)
18Grate, Insert (Satin Moleskin)
18GRATE-BRNR
19WP9761562SN Whirlpool Burner Cap
19WP9761562SD Whirlpool Burner Cap
199761563SN Whirlpool Burner Cap
199761563SD Whirlpool Burner Cap
19WP8284669 Whirlpool Burner Cap
199761563CB Whirlpool Burner Cap
20WP4449809 Whirlpool Screw
21W10491985 Whirlpool Screw
23WPL 9759627
24WP9763436 Whirlpool Rear Cover
25WPW10406243 Whirlpool Burner Head Auxiliary 6K
25WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26Gasket
27Glass, Backsplash (White)
27WPL 9761749BT
27Glass, Backsplash
28Clip, Retainer (3)
