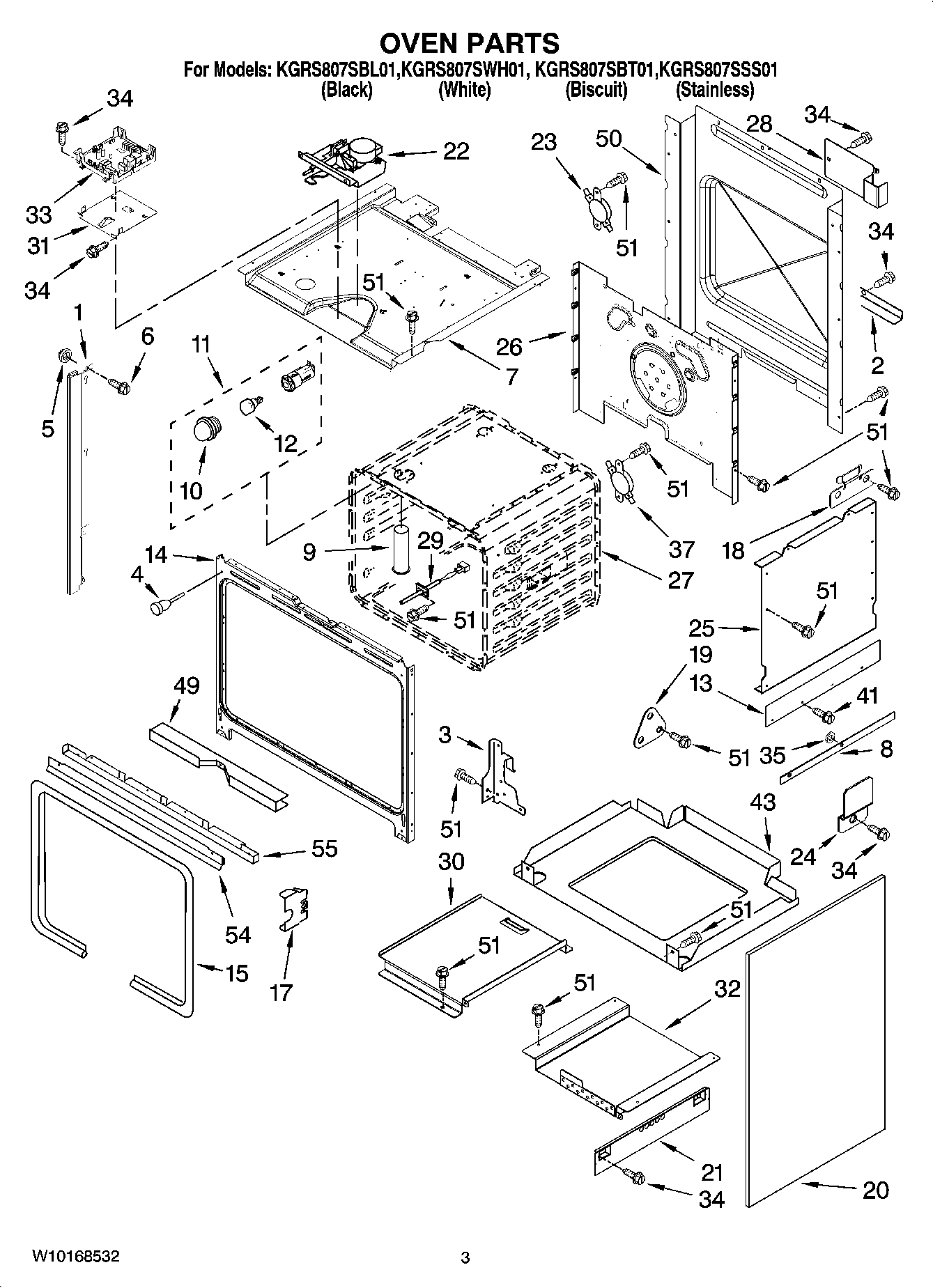

KGRS807SBL01 02 – OVEN PARTS

Products

PositionProduct
WPL ARI88054A5
WPL ARI88055A7
WPL 9756470
WPL 9756817
1TRIM, SIDE (RIGHT STAINLESS)
1TRIM, SIDE (LEFT) (BLACK)
1TRIM, SIDE (LEFT) (WHITE)
1Trim, Side Right (Black)
1TRIM, SIDE (LEFT STAINLESS)
1TRIM, SIDE (LEFT) (BISCUIT)
1Trim, Side Right (Biscuit)
1Trim, Side Right (White)
2Brace, Main Back
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP4448444 Whirlpool Grommet
6WP3400832 Whirlpool Screw
7Top Chassis
8WPL 9759722
9Tube, Vent
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19BRACKET,SIDE PANEL
20BODY, SIDE BLACK
20Body, Side (Biscuit)
20Body, Side (White)
21Brace, Side Panel
22WP9760889 Whirlpool Door Latch
23WP9757807 Whirlpool High Limit Thermostat
24Clip, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Cover, Rear Standoff
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31Slide, GOC
32W10083460 Whirlpool Slide Assembly
33Central, Appliance
34WP3196557 Whirlpool Screw
35WPL 9760481
37WP9759242 Whirlpool Thermostat
41WP4449743 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50Cover, Back
51WP4449809 Whirlpool Screw
54Vent, Bottom Upper (Black)
54Vent, Bottom Upper (Biscuit)
54Ve
54Vent, Bottom Upper (S. Steel)
55Vent, Bottom Lower (Biscuit)
55Vent, Bottom Lower (White)
55Trim, Btm Vent (S.Steel)
55Vent, Bottom Lower (Black)
