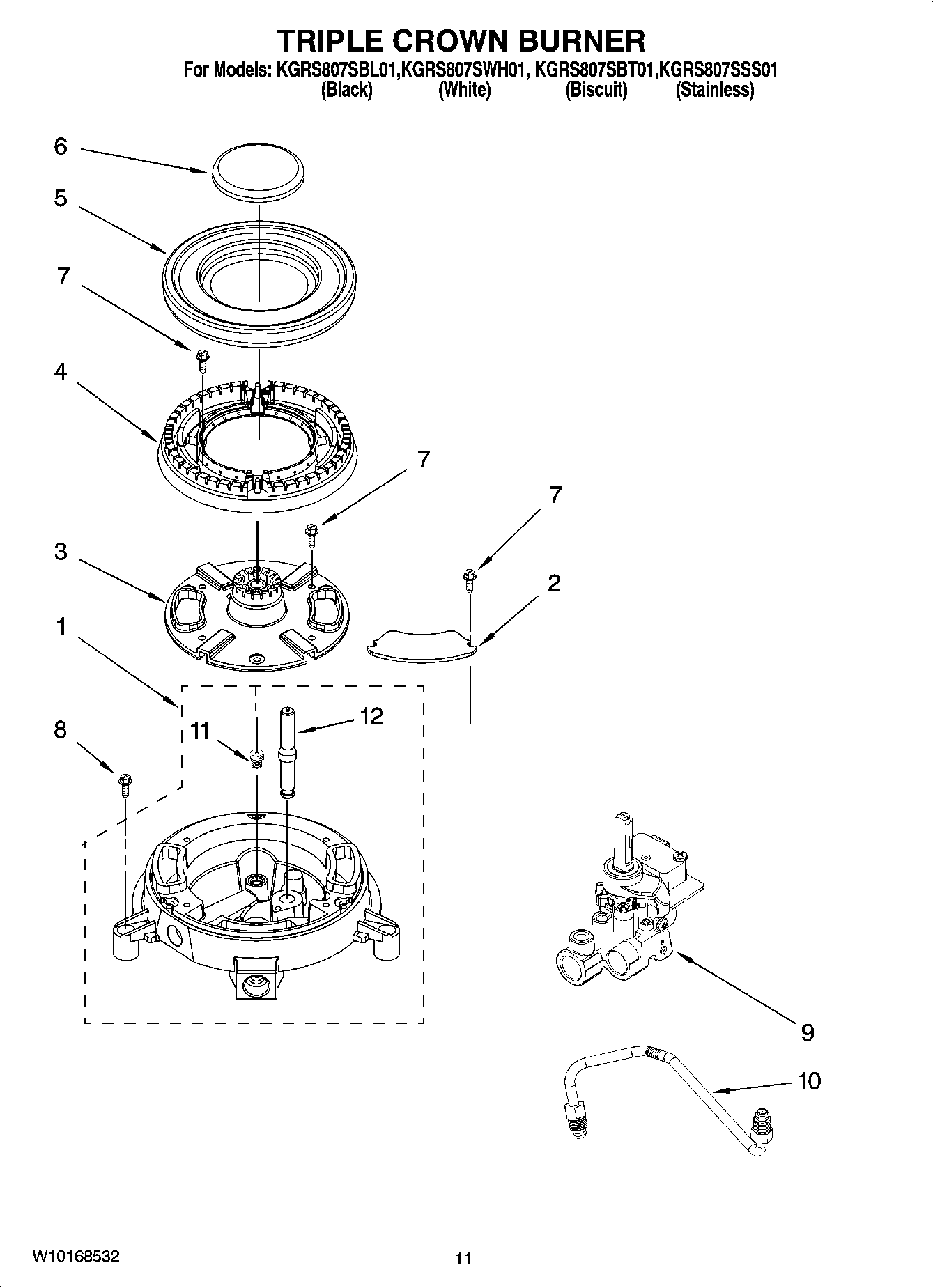

KGRS807SBL01 08 – TRIPLE CROWN BURNER

KGRS807SBL01 08 – TRIPLE CROWN BURNER

Written by

in

KGRS807SBL01 08 – TRIPLE CROWN BURNER

Products

PositionProduct
1WP9761639 Whirlpool Orifice Holder
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5Cap, Burner External (Satin Moleskin)
5WP8285258SD Whirlpool Burner Cap
5WP8285258 Whirlpool Top Cap
6WP9758829CB Whirlpool Burner Cap
6WP9758829SD Whirlpool Burner Cap
6Cap, Burner Internal (Satin Moleskin)
7WP3400702 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
9VALVE, TCB
10TUBE, T.C.B. GAS (INNER)
109761072 Whirlpool Oven Gas Tubing
119762443 Whirlpool Oven Orifice Spud
11Orifice (External)
12WP9763494 Whirlpool Surface Igniter
