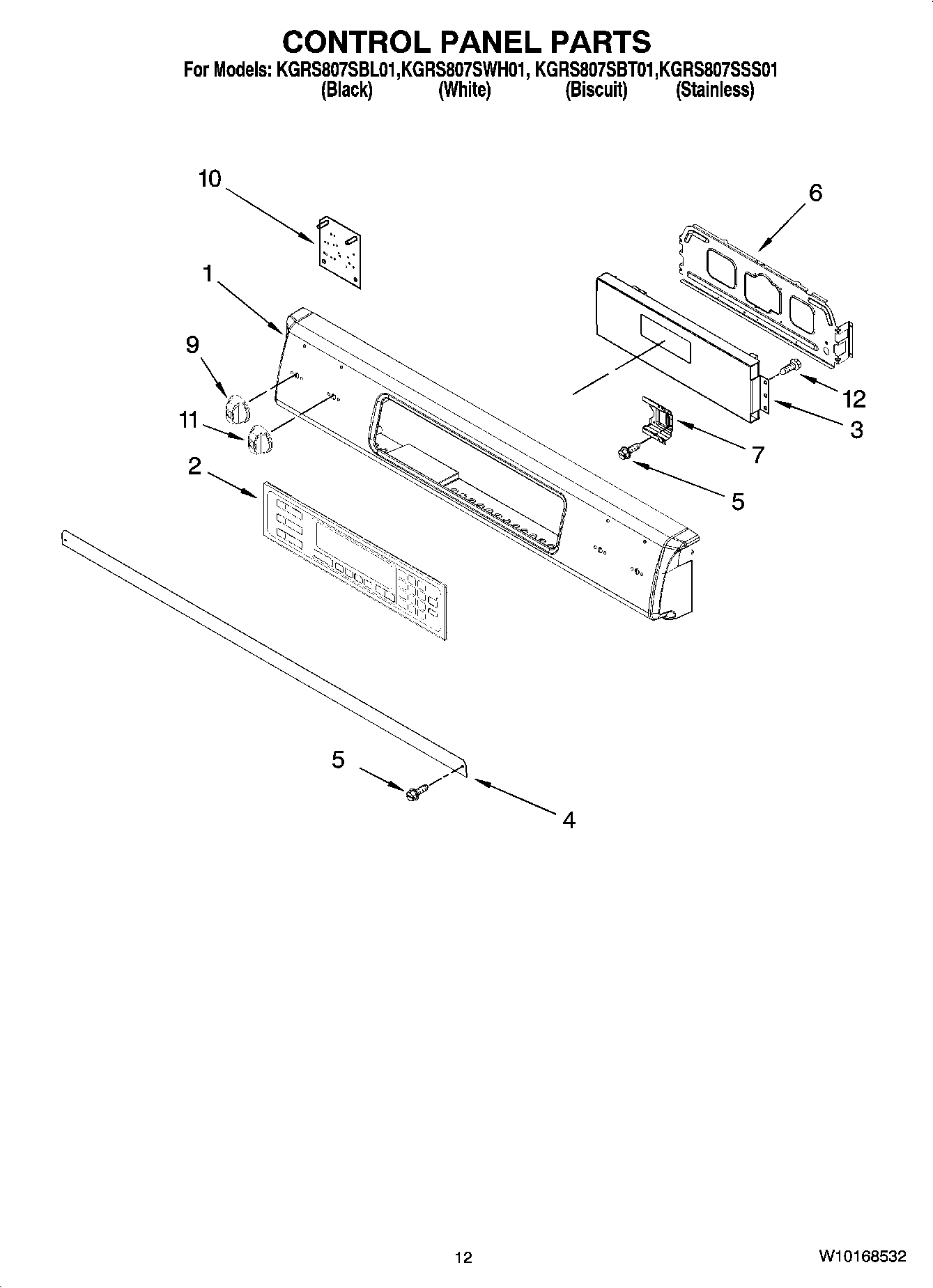

KGRS807SBL01 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

KGRS807SBL01 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KGRS807SBL01 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Filler, Counter Top (White)
WPL 591014
WP4455352 Whirlpool Mounting Bracket
WPL ARI88059A8
261900 Whirlpool Microwave Spray
WPL ARI88058A2
WPL ARI88057A3
W10624584 Whirlpool Power Cord
WPL ARI88056A8
WP9762904 Whirlpool Wire Harness
9763481 Whirlpool Oven Wire Harness
HARNESS, COMMUNICATION
9756921 Whirlpool Oven Wire Harness
9757426 Whirlpool Oven LP Conversion Kit
W10157936 Whirlpool Wire Harness
W10110533 Whirlpool Wire Harness
Filler, Counter Top (Black)
Filler, Counter Top (Biscuit)
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
W11447673 Whirlpool Range Tip Anchor
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
W11209404 Whirlpool Wire Harness
1WPW10110720 Whirlpool Control Panel
1WPW10110718 Whirlpool Control Panel
1Control Panel (Biscuit)
1Control Panel (Stainless)
2WP9761566 Whirlpool Membrane Switch
3WP9762794-includeCORE Whirlpool WP9762794 Electronic Control Board + Core
4Shield, Console Vent
5WP3196557 Whirlpool Screw
6Support, Gas Valve
7Bracket, Thermostat (2)
9Knob, Burner RF, RR, LR (Black)
9W10851044 Whirlpool Knob Assembly
9WPW10156265 Whirlpool Knob
9Knob, Burner RF, RR, LR (Biscuit)
10WPW10331686 Whirlpool Oven Spark Module
11Knob, TCB LF (White)
11Knob, TCB LF (Biscuit)
11Knob (LF)
11Knob, TCB LF (Black)
12Screw
