KGRS807SSS00 06 – COOKTOP BURNER PARTS

KGRS807SSS00 06 – COOKTOP BURNER PARTS

Written by

in

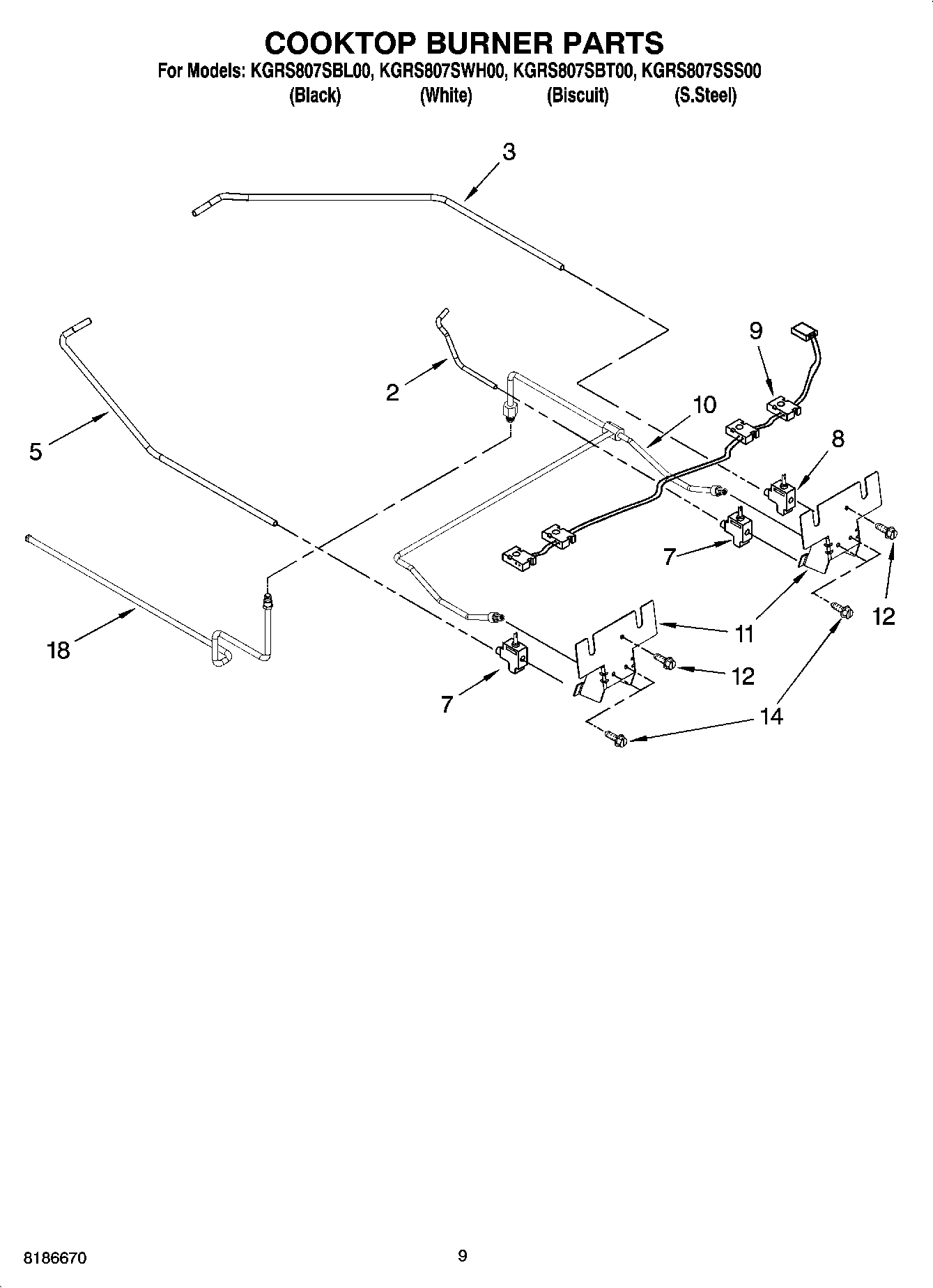

KGRS807SSS00 06 – COOKTOP BURNER PARTS

Products

PositionProduct
2TUBING, BURNER(RF)
3TUBING, BURNER(RR)
5TUBING, BURNER(LR)
7WP4456816 Whirlpool Burner Valve
8WP4456817 Whirlpool Burner Valve
9WP9756824 Whirlpool Wire Harness
10Tube, Manifold
119761641 Whirlpool Oven Manifold Pipe
119761642 Whirlpool Manifold Pipe
12WP3196557 Whirlpool Screw
14WP3186217 Whirlpool Screw
184453754 Whirlpool Oven Burner Tube
