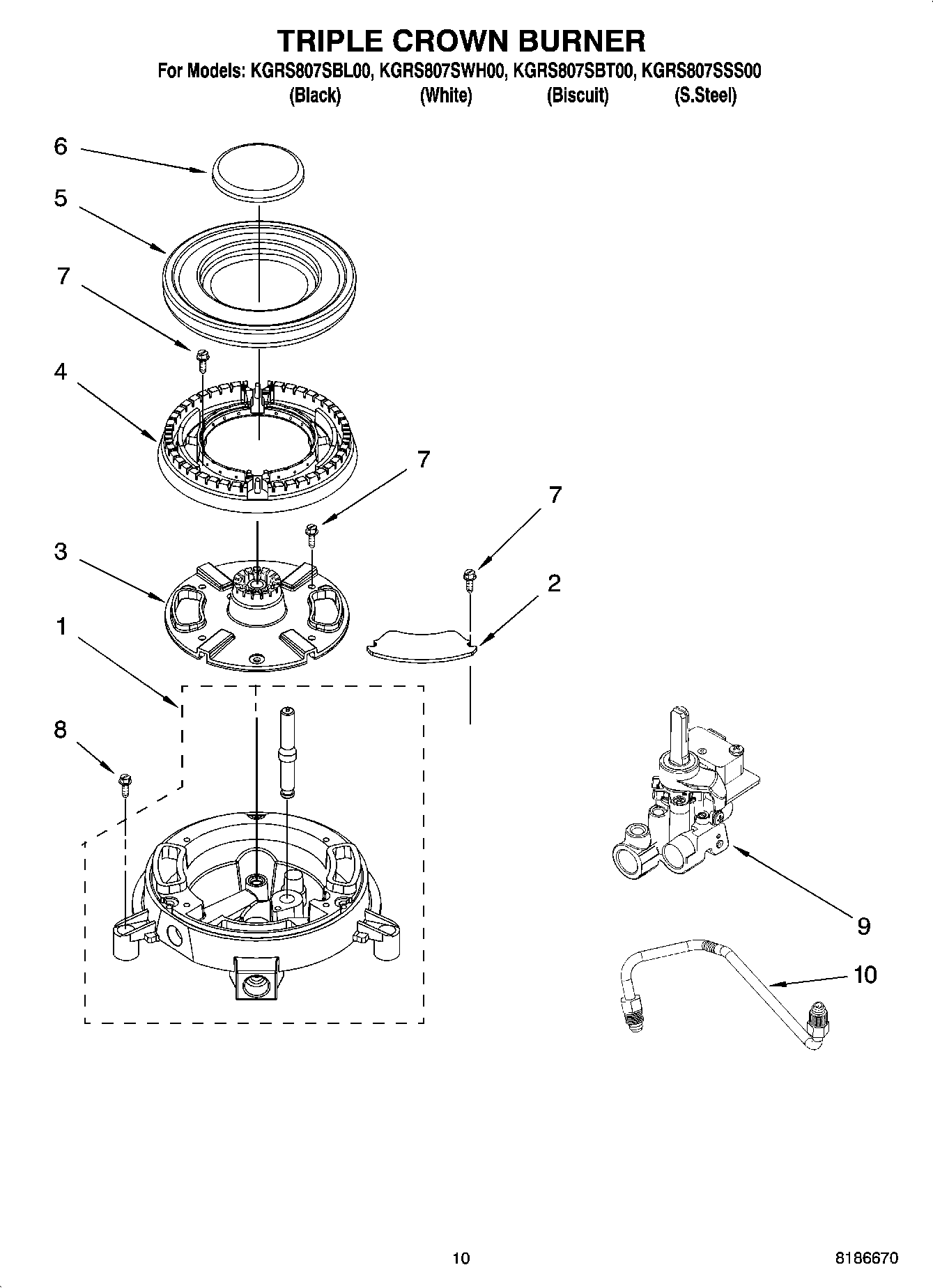

KGRS807SSS00 07 – TRIPLE CROWN BURNER

KGRS807SSS00 07 – TRIPLE CROWN BURNER

Written by

in

KGRS807SSS00 07 – TRIPLE CROWN BURNER

Products

PositionProduct
1WP9761639 Whirlpool Orifice Holder
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5Cap, Burner External (Satin Moleskin)
5WP8285258SD Whirlpool Burner Cap
5WP8285258 Whirlpool Top Cap
6WP9758829CB Whirlpool Burner Cap
6WP9758829SD Whirlpool Burner Cap
6Cap, Burner Internal (Satin Moleskin)
7WP3400702 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
9VALVE, TCB
10TUBE, T.C.B. GAS (INNER)
109761072 Whirlpool Oven Gas Tubing
