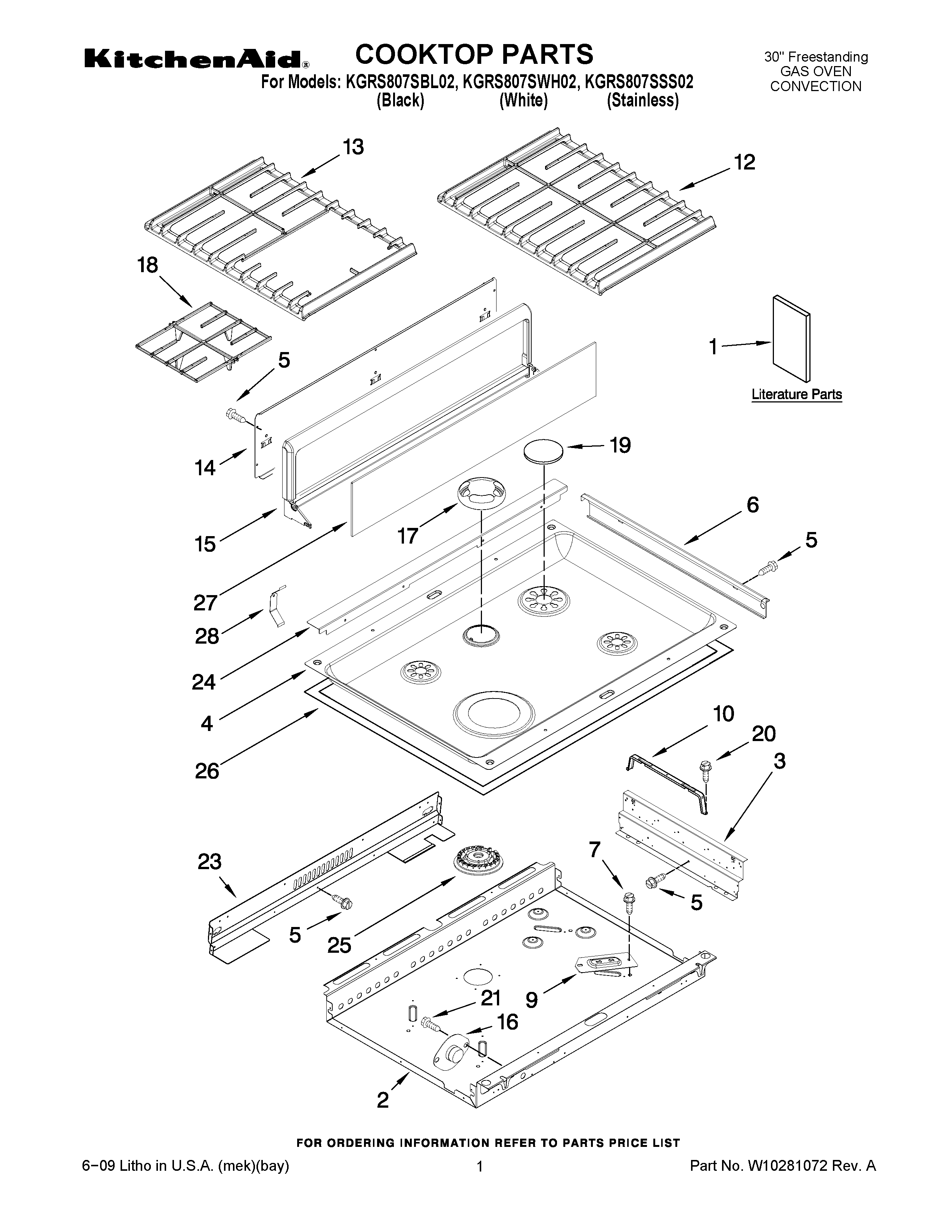

KGRS807SSS02 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet (French)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Anti-Tip Instruct.
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Tech Sheet (English)
1Easy Set Guide
2BURNER BOX
3Bracket, Mounting
4COOKTOP (WHITE)
4Cooktop (Black/Stainless)
5WP3196557 Whirlpool Screw
6Trim, Cooktop Right (Stainless)
6Trim, Cooktop Left (Stainless)
6Trim, Cooktop Right (Black)
6Trim, Cooktop Right (White)
6Trim, Cooktop Left (Black)
6Trim, Cooktop Left (White)
7WP12990527 Whirlpool Microwave Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
12Grate, Burner (RH)
12Grate, Burner Right (Satin Moleskin)
12Grate, Burner Right (Satin Cumberland)
13Grate, Burner (LH)
13Grate, Burner Left (Satin Cumberland)
13Grate, Burner Left (Stain Moleskin)
14Panel, Backsplash
15Backsplash (White)
15Backsplash
15Gasket (Gray)
15Gasket, Backsplash
15Backsplash (Black)
16WP9759944 Whirlpool Thermostat
17Vent, Center (Black)
17Vent, Center (White)
18Grate, Insert (Satin Moleskin)
18Grate, Insert (Satin Cumberland)
18GRATE-BRNR
199761563CB Whirlpool Burner Cap
19WP8284669 Whirlpool Burner Cap
19WP9761562SN Whirlpool Burner Cap
19WP9761562SD Whirlpool Burner Cap
199761563SN Whirlpool Burner Cap
199761563SD Whirlpool Burner Cap
20WP4449809 Whirlpool Screw
21W10491985 Whirlpool Screw
23WPL 9759627
24WP9763436 Whirlpool Rear Cover
25WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
25WPW10406243 Whirlpool Burner Head Auxiliary 6K
26Gasket
27Glass, Backsplash (White)
27Glass, Backsplash
28Clip, Retainer (3)
