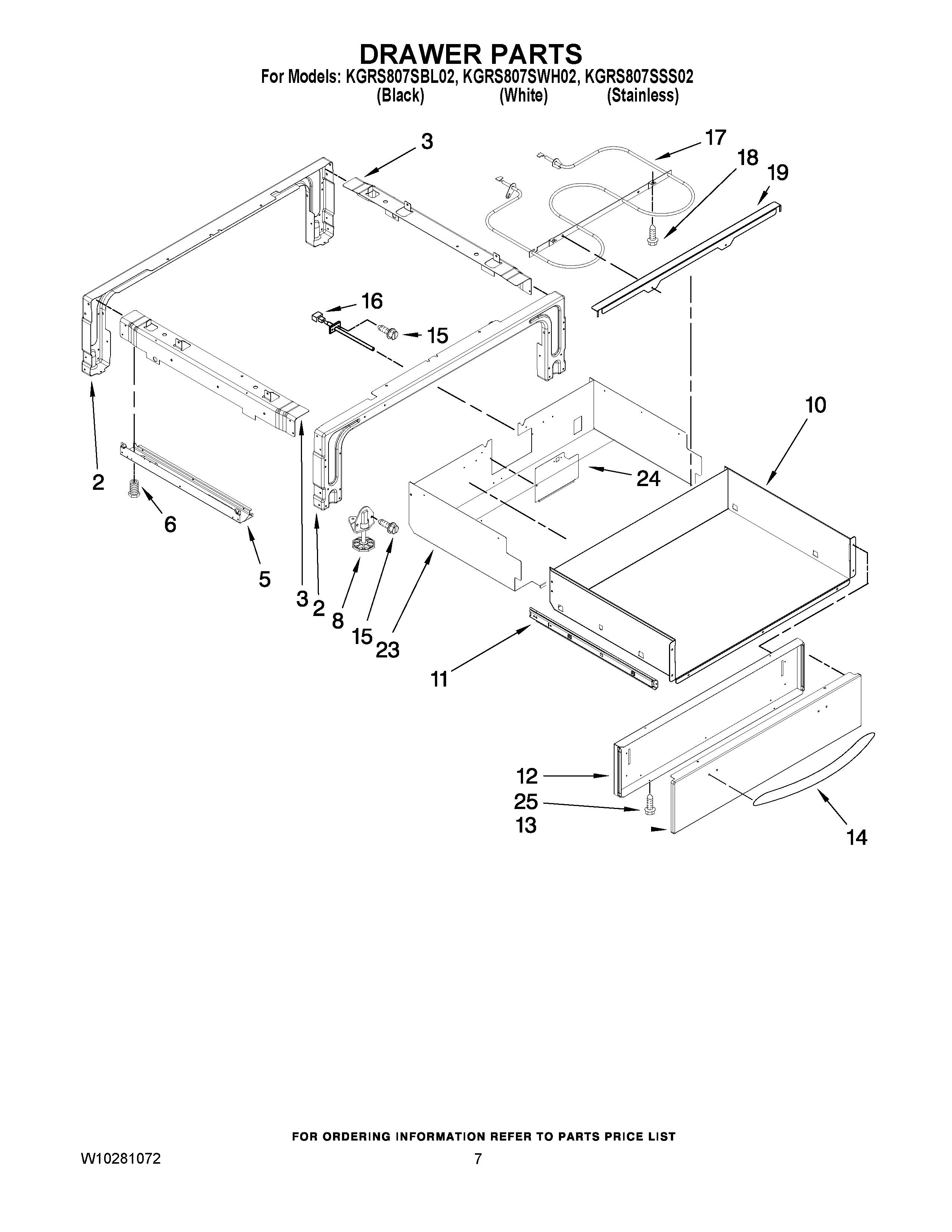

KGRS807SSS02 04 – DRAWER PARTS
Written by
in
KGRS807SSS02 04 – DRAWER PARTS
Products
Position
Product
2
Support, Front & Rear
3
Brace, Drawer (Left)
3
Brace, Drawer (Right)
5
Side, Base (R.Side)
5
Side, Base (L.Side)
6
WPW10058460 Whirlpool Appliance Levelling Leg
8
WP3196037 Whirlpool Leveling Foot
10
DRAWER
11
WPW10155632 Whirlpool Slide Drawer Assembly
11
WPW10155633 Whirlpool Drawer Slide Rail
12
PANEL, DRAWER
13
Front, Drawer (Stainless)
13
Front, Drawer (White)
13
Front, Drawer (Black)
14
Handle, Drawer (Black)
14
Handle, Drawer (Stainless)
14
Handle, Drawer (White)
15
WP3196557 Whirlpool Screw
16
WP8274149 Whirlpool Sensor Assembly
17
ELEMENT, WARMING DRAWER
18
WP4449809 Whirlpool Screw
19
Support, Element
23
Enclosure, Warming Drawer
24
Cover, Access
25
WP3400805 Whirlpool Screw Assembly
←
