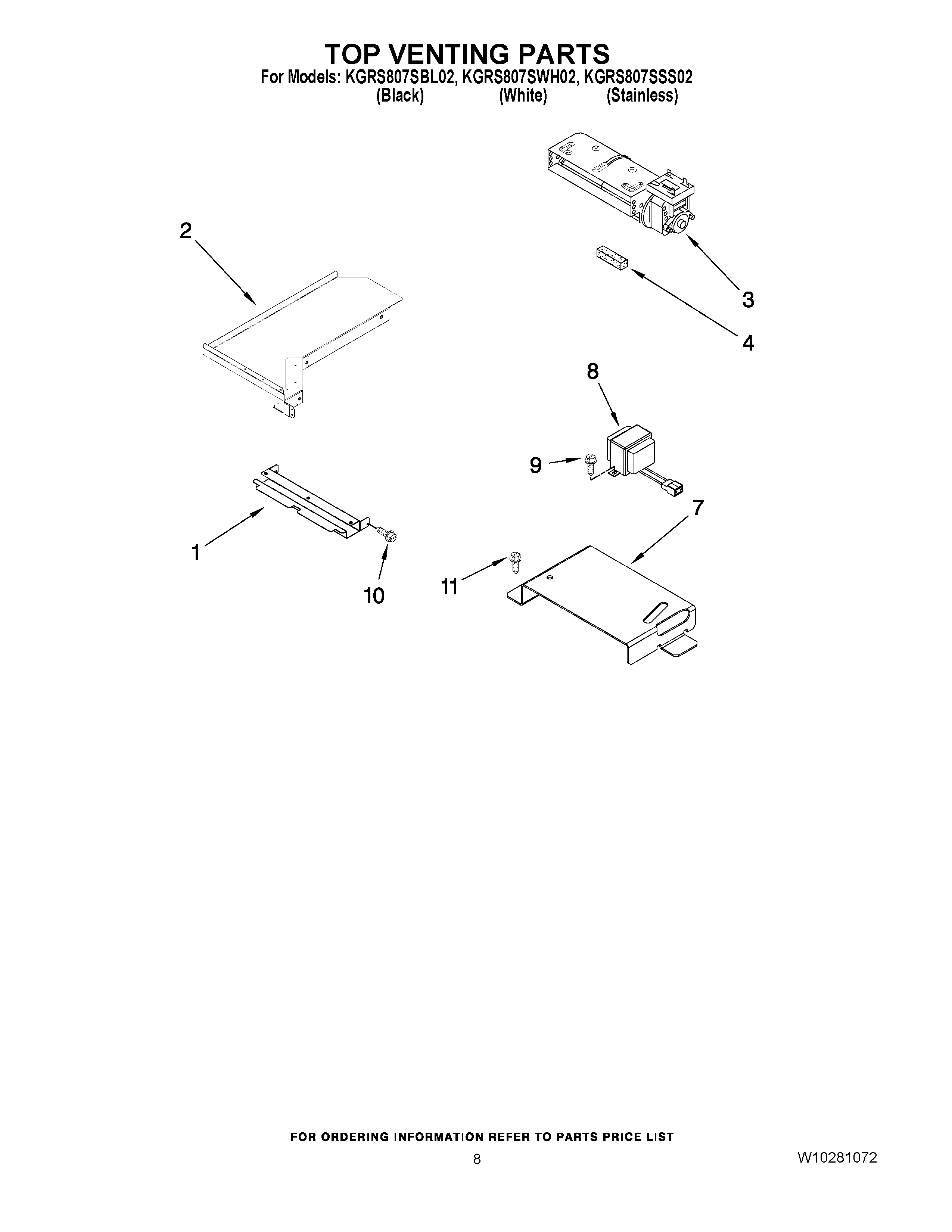

KGRS807SSS02 05 – TOP VENTING PARTS

Written by

Products

Position	Product
1	FRONT, AIR DUCT
2	Top, Air Duct (Left)
2	Top, Air Duct (Right)
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
7	WP9757829 Whirlpool Mounting Bracket
8	WPW10111628 Whirlpool Transformer
9	WP3196557 Whirlpool Screw
10	Screw
11	WP4449809 Whirlpool Screw
