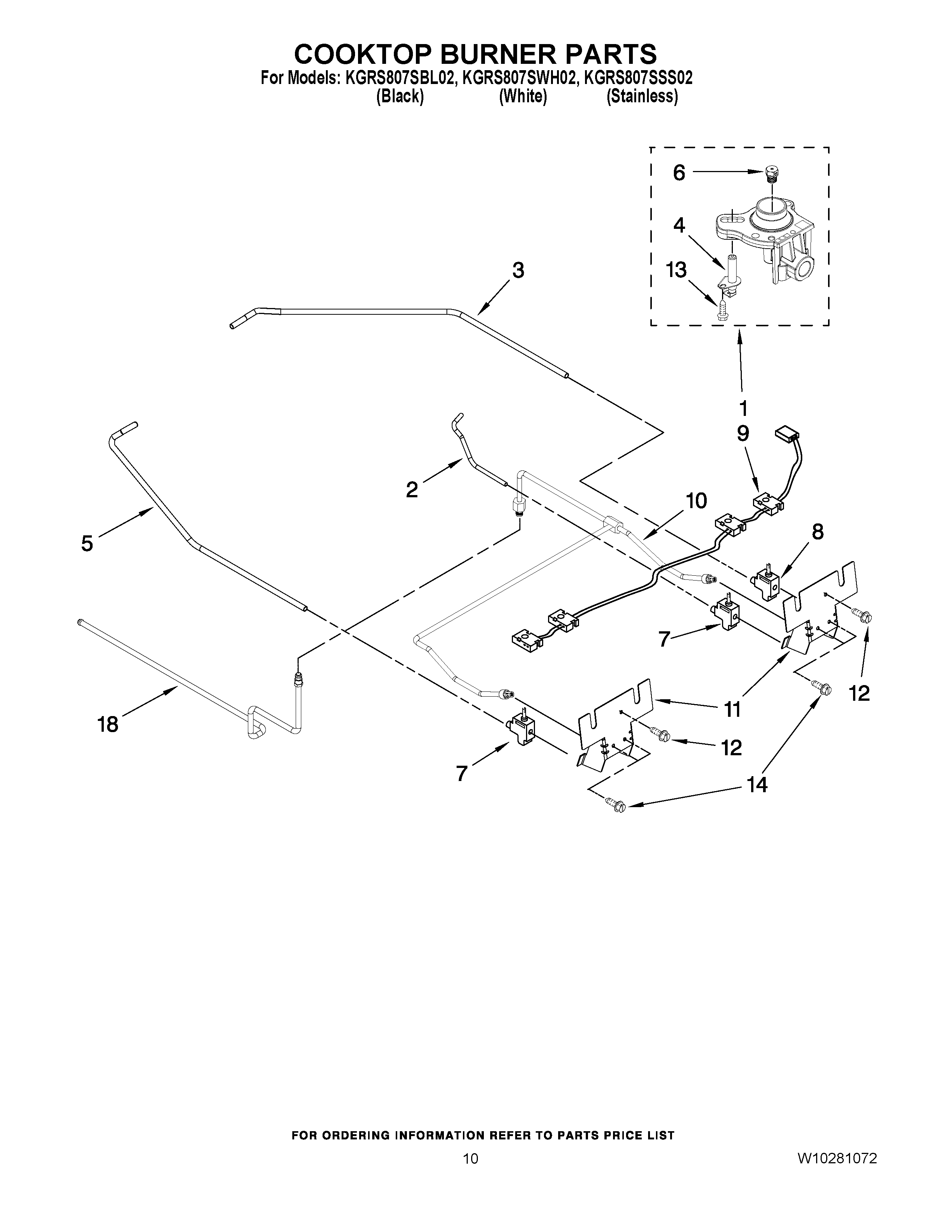

KGRS807SSS02 07 – COOKTOP BURNER PARTS

Products

Position	Product
1	WPW10128455 Whirlpool Orifice Holder
1	WPW10128446 Whirlpool Orifice Holder
2	TUBING, BURNER(RF)
3	TUBING, BURNER(RR)
4	WPW10110378 Whirlpool Surface Igniter
5	TUBING, BURNER(LR)
6	Orifice (RR)
6	9762937 Whirlpool Oven Orifice
7	WP4456816 Whirlpool Burner Valve
8	WP4456817 Whirlpool Burner Valve
9	WP9756824 Whirlpool Wire Harness
10	Tube, Manifold
11	9761641 Whirlpool Oven Manifold Pipe
11	9761642 Whirlpool Manifold Pipe
12	WP3196557 Whirlpool Screw
13	WP8273062 Whirlpool Screw
14	BOLT, VALVE (4)
18	4453754 Whirlpool Oven Burner Tube
