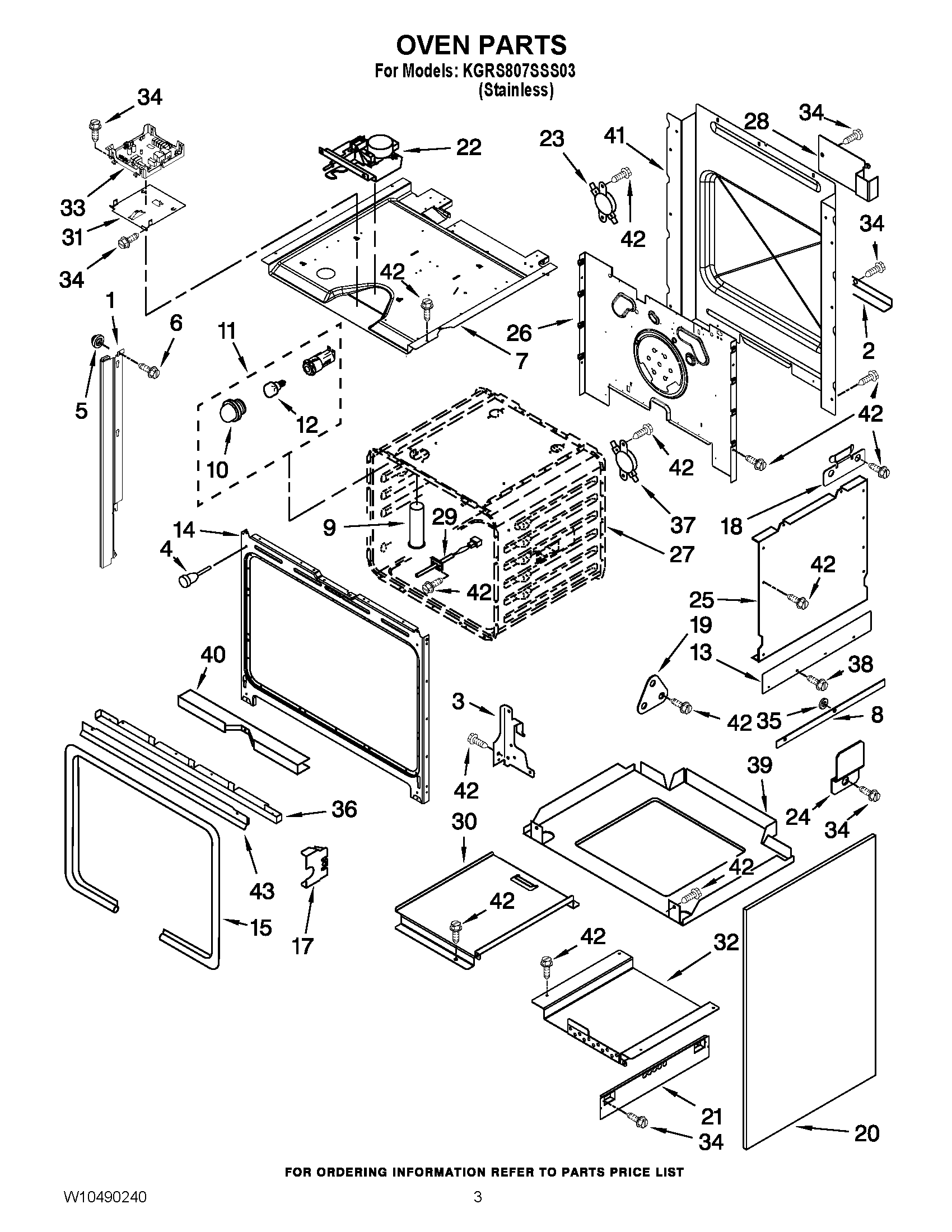

KGRS807SSS03 02 – OVEN PARTS

Products

Position	Product
NI	WPL 9756817
NI	INSULATION, COVER BA
NI	WPL W10095410
NI	WPL 9756470
1	TRIM, SIDE (RIGHT STAINLESS)
1	TRIM, SIDE (LEFT STAINLESS)
2	Brace, Main Back
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4448444 Whirlpool Grommet
6	WP3400832 Whirlpool Screw
7	Top Chassis
8	WPL 9759722
9	Tube, Vent
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	BRACKET,SIDE PANEL
20	BODY, SIDE
21	Brace, Side Panel
22	WPW10195934 Whirlpool Door Latch
23	WP9757807 Whirlpool High Limit Thermostat
24	Clip, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	Cover, Rear Standoff
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	Slide, GOC
32	W10083460 Whirlpool Slide Assembly
33	Central, Appliance
34	WP3196557 Whirlpool Screw
35	WPL 9760481
36	Vent, Bottom Upper (Stainless)
37	WP9759242 Whirlpool Thermostat
38	WP4449743 Whirlpool Screw
39	Gasket
39	Base, Chassis
40	WP4448933 Whirlpool Retainer
41	WPL 9758583
42	SCREW
43	Vent, Bottom Lower (Stainless)
