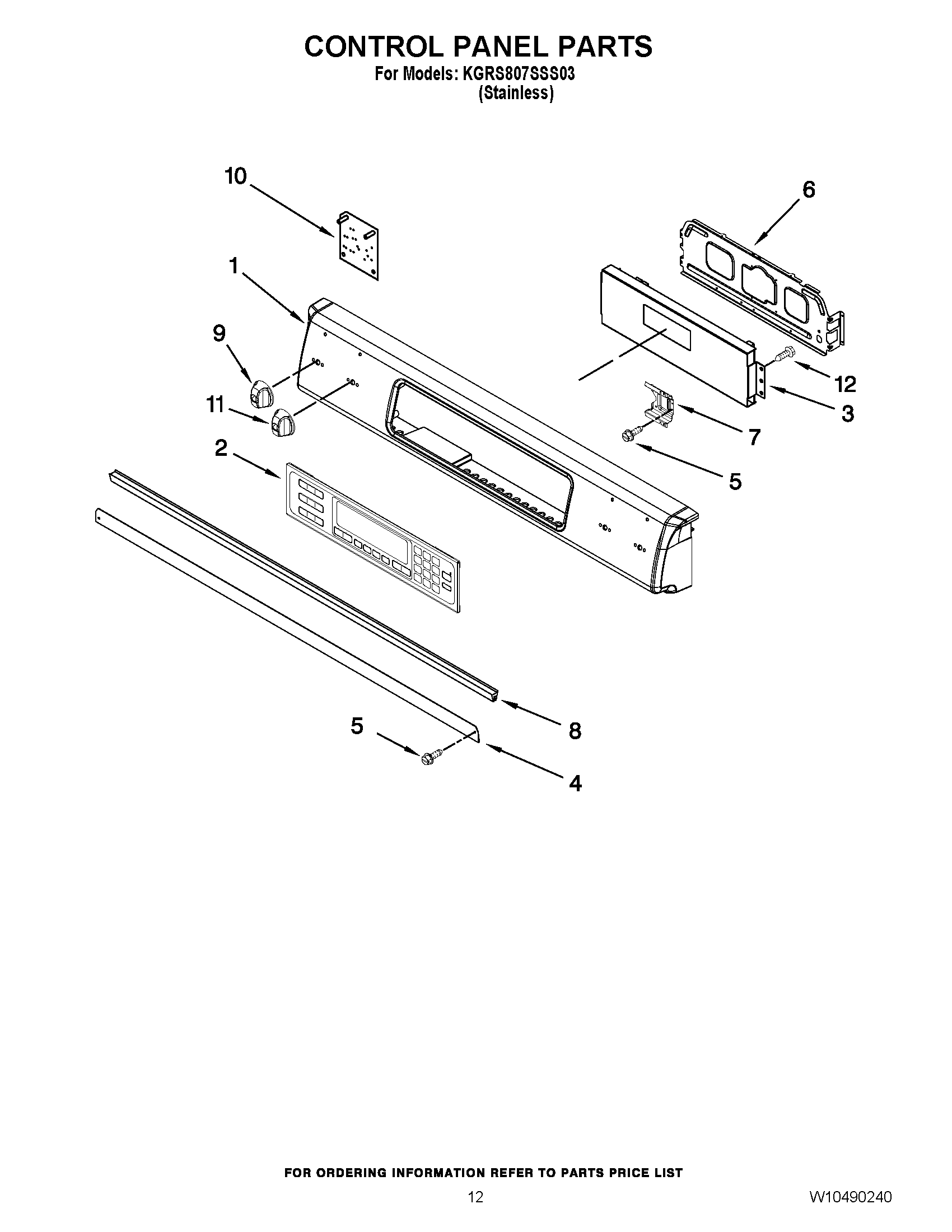

KGRS807SSS03 09 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Stainless)
2WP9761566 Whirlpool Membrane Switch
3WP9762794-includeCORE Whirlpool WP9762794 Electronic Control Board + Core
4Shield, Console Vent
5WP3196557 Whirlpool Screw
6Support, Gas Valve
7Bracket, Thermostat (2)
8W10116195 Whirlpool Vent Gasket
9WPW10156265 Whirlpool Knob
10WPW10331686 Whirlpool Oven Spark Module
11Knob (LF)
12Screw
