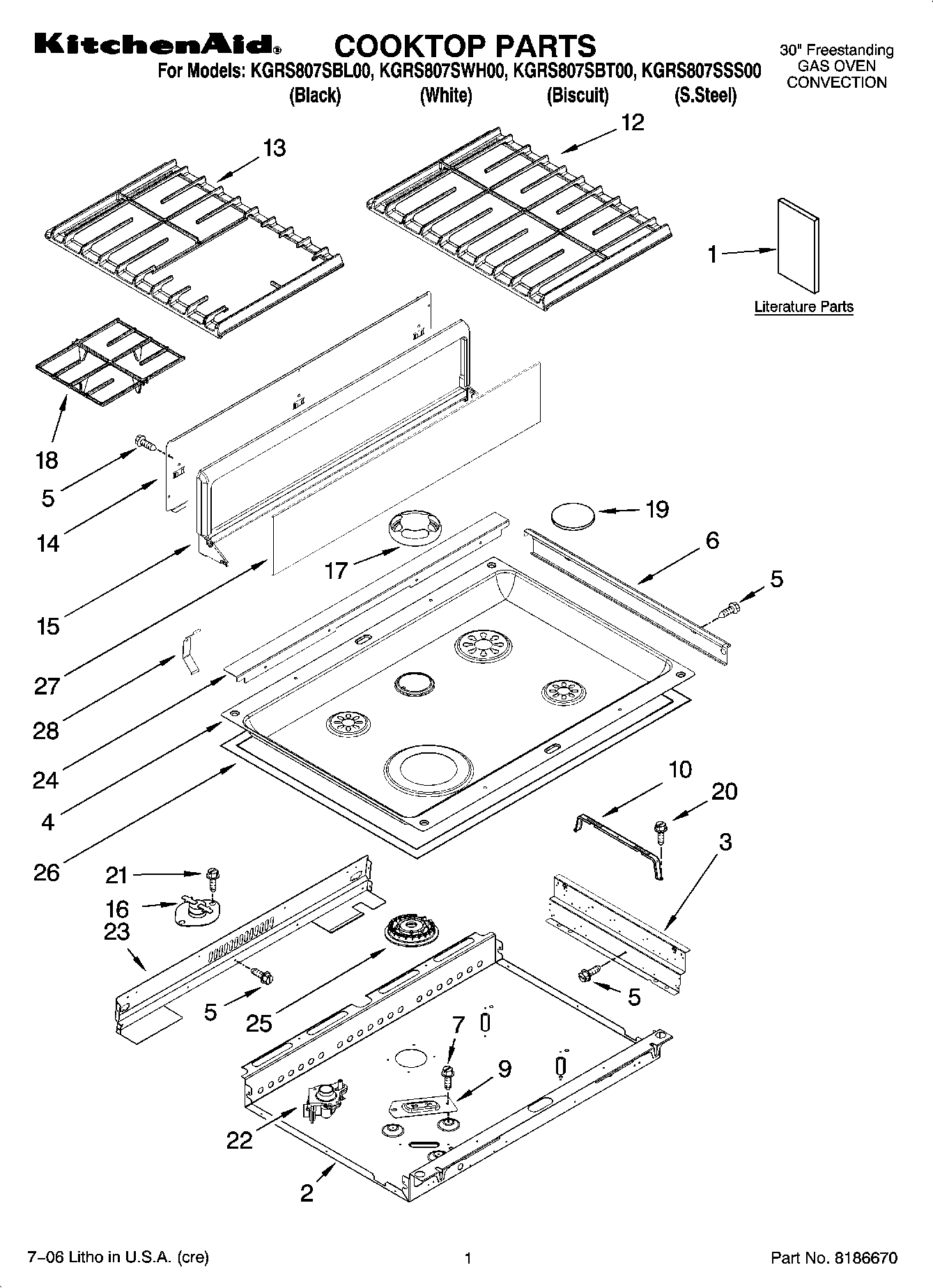

KGRS807SWH00 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet (French)
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Safe Cooking Tips
1Tech Sheet (English)
1Easy Set Guide
2Burner Box
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (Biscuit)
4Cooktop (White)
5WP3196557 Whirlpool Screw
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (Black LH)
7WP12990527 Whirlpool Microwave Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
12Grate, Burner Right (Satin Moleskin)
12Grate, Burner (RH)
12Grate, Burner Right (Satin Cumberland)
13Grate, Burner (LH)
13Grate, Burner Left (Stain Moleskin)
13Grate, Burner Left (Satin Cumberland)
14Panel, Backsplash
15Backsplash (Biscuit)
15Backsplash
15Gasket (Gray)
15Backsplash (White)
15Backsplash (Black)
15Gasket, Backsplash
16WP9759944 Whirlpool Thermostat
17Vent, Center (Black)
17Vent, Center (White)
17Vent, Center (Biscuit)
18Grate, Insert (Satin Moleskin)
18Grate, Insert (Satin Cumberland)
18GRATE-BRNR
19WP8284669 Whirlpool Burner Cap
199761563CB Whirlpool Burner Cap
199761563SN Whirlpool Burner Cap
19WP9761562SN Whirlpool Burner Cap
199761563SD Whirlpool Burner Cap
19WP9761562SD Whirlpool Burner Cap
20WP4449809 Whirlpool Screw
21W10491985 Whirlpool Screw
22WPW10128455 Whirlpool Orifice Holder
22WPW10128446 Whirlpool Orifice Holder
23WPL 9759627
24WP9763436 Whirlpool Rear Cover
25WPW10406243 Whirlpool Burner Head Auxiliary 6K
25WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26Gasket
27Glass, Backsplash (White)
27Glass, Backsplash
27WPL 9761749BT
28Clip, Retainer (3)
