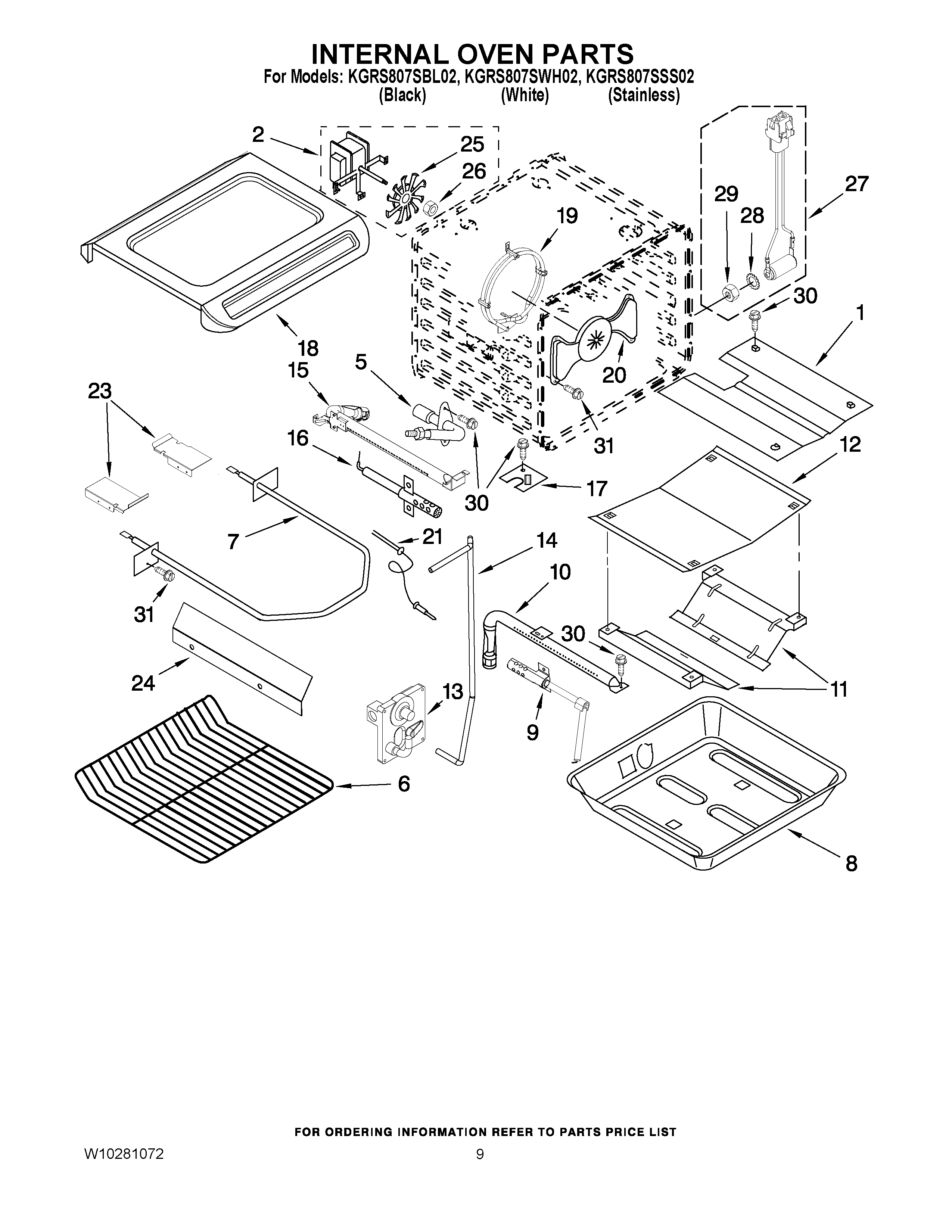

KGRS807SWH02 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
2	W10794022 Whirlpool Oven Cooktop Fan Motor
5	9757779 Whirlpool Oven Fitting
6	WPW10179152 Whirlpool Rack Oven
7	Element, Broil
8	WPW10145744 Whirlpool Support
9	WP9760229 Whirlpool Oven Igniter
9	W11684507 Whirlpool Screw
10	WP9760228 Whirlpool Oven Burner
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
19	9760777 Whirlpool Oven Element
20	Cover, Fan
21	WP9755542 Whirlpool Oven Meat Probe
23	Shield, Element (Right)
23	Shield, Element (Left)
24	Diverter, Air
25	W10758272 Whirlpool Convection Fan
26	WPW10116349 Whirlpool Nut
27	8186589 Whirlpool Jack Probe
28	WP9755547 Whirlpool Lockwasher
29	WP9755546 Whirlpool Locknut
30	SCREW
31	WP4449154 Whirlpool Screw
