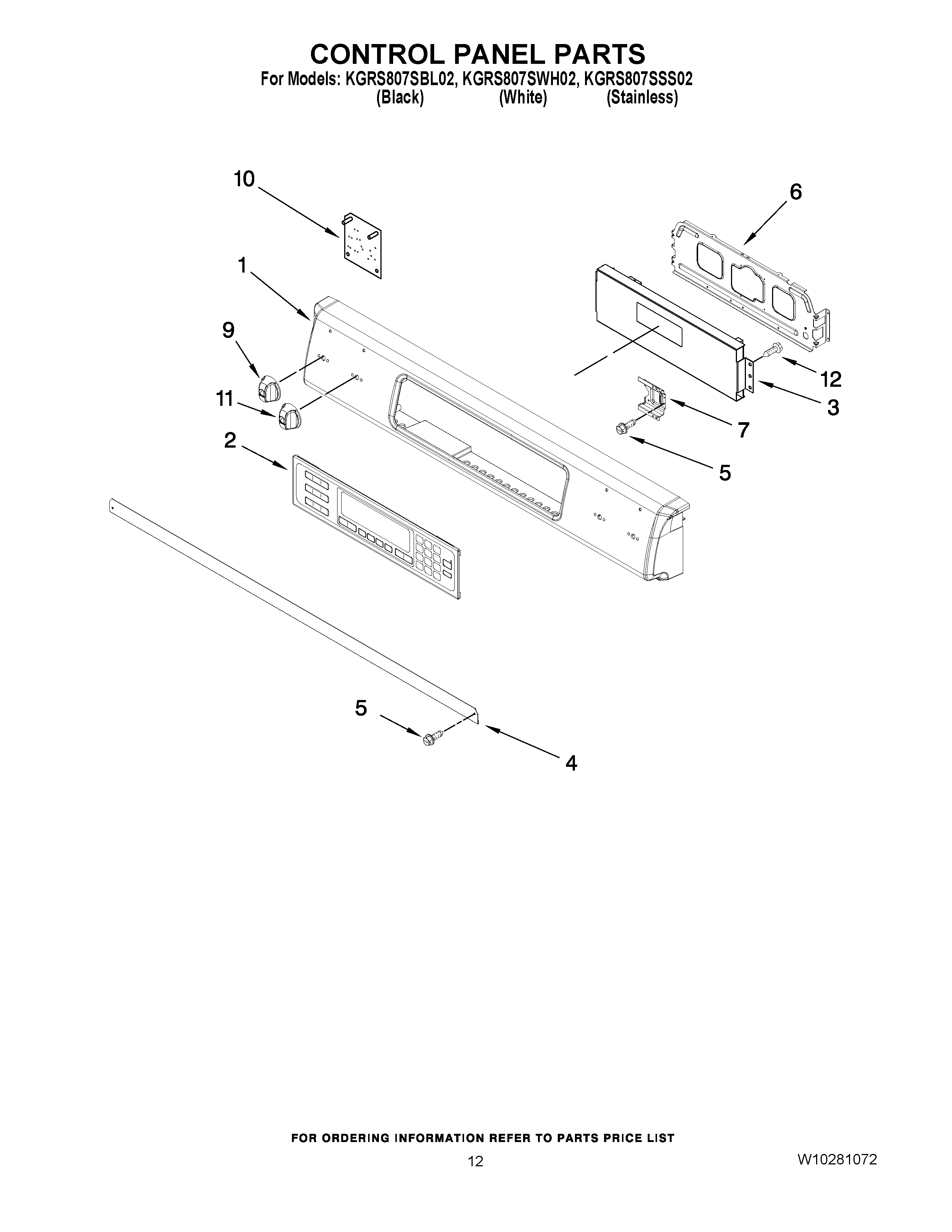

KGRS807SWH02 09 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Stainless)
1	WPW10110720 Whirlpool Control Panel
1	WPW10110718 Whirlpool Control Panel
2	WP9761566 Whirlpool Membrane Switch
3	WP9762794-includeCORE Whirlpool WP9762794 Electronic Control Board + Core
4	Shield, Console Vent
5	WP3196557 Whirlpool Screw
6	Support, Gas Valve
7	Bracket, Thermostat (2)
9	W10851044 Whirlpool Knob Assembly
9	WPW10156265 Whirlpool Knob
9	W10193275 Whirlpool Knob
10	WPW10331686 Whirlpool Oven Spark Module
11	KNOB, TCB LF (WHITE)
11	KNOB, TCB LF (BLACK)
11	Knob (LF)
12	Screw
