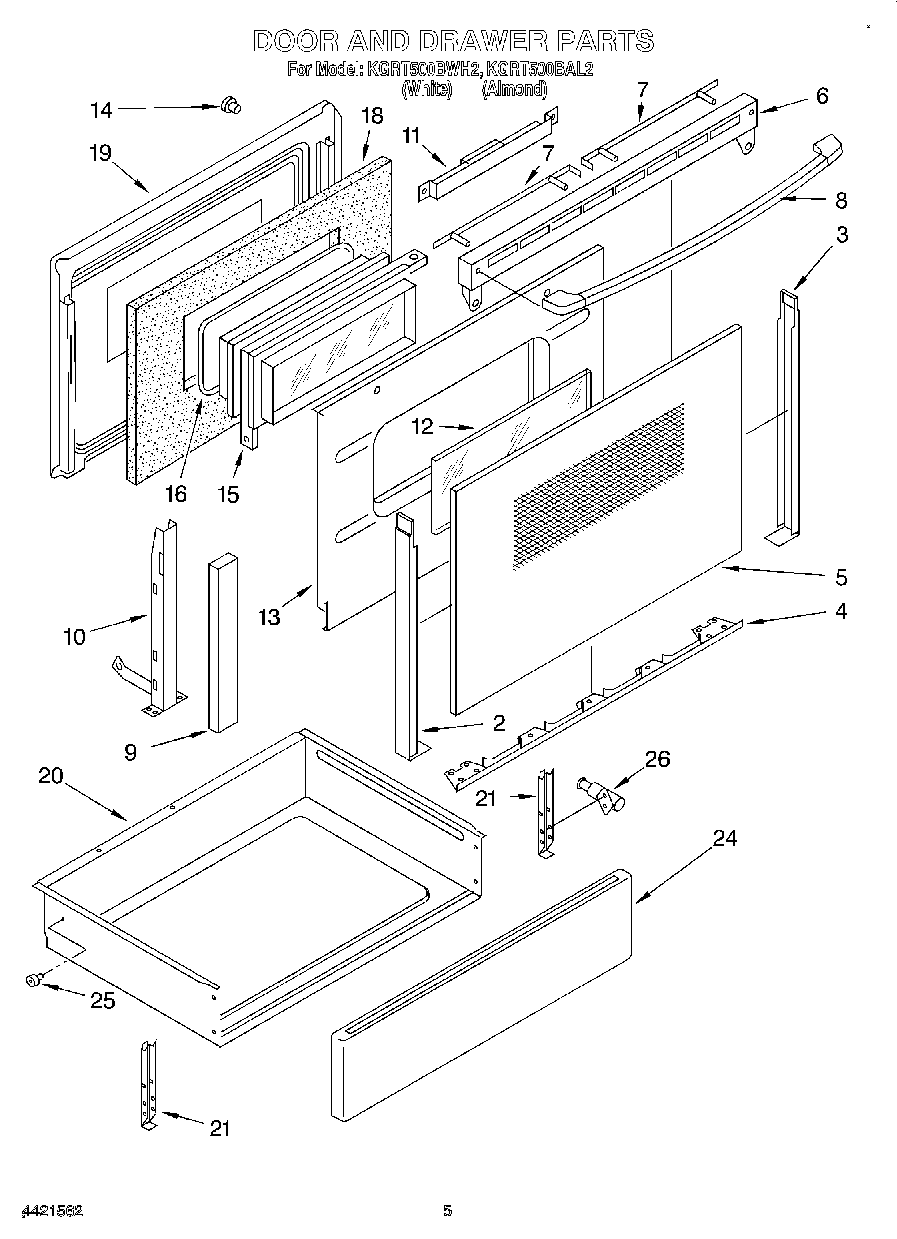

KGRT500BAL2 04 – DOOR & DRAWER

Products

Position	Product
2	Trim, Door-Left (Almond)
2	Trim, Door-Left (White)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Almond)
4	Trim, Door Bottom (Almond)
4	Trim, Door Bottom (White)
5	Glass, Door (Almond)
5	Glass, Door (White)
6	Vent, Door (White)
6	Vent, Door (Black)
6	Back Splash (Screw (4) 10AB x 1/2“)
7	Vent Back
8	Handle, Door (White)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (Almond Mdl.)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	Channel, Heat
11	WP4159387 Whirlpool Compactor Screw
12	Baffle, Glass
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	Window Pack (2)
16	Screw
16	Seal, Window
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Screw (4) 10 x 1/2
21	Bracket, Drawer
24	Front, Drawer (Almond)
24	Front, Drawer (White)
25	814229 Whirlpool Primary Roller
26	WPL 9780806
26	Latch, Drawer
