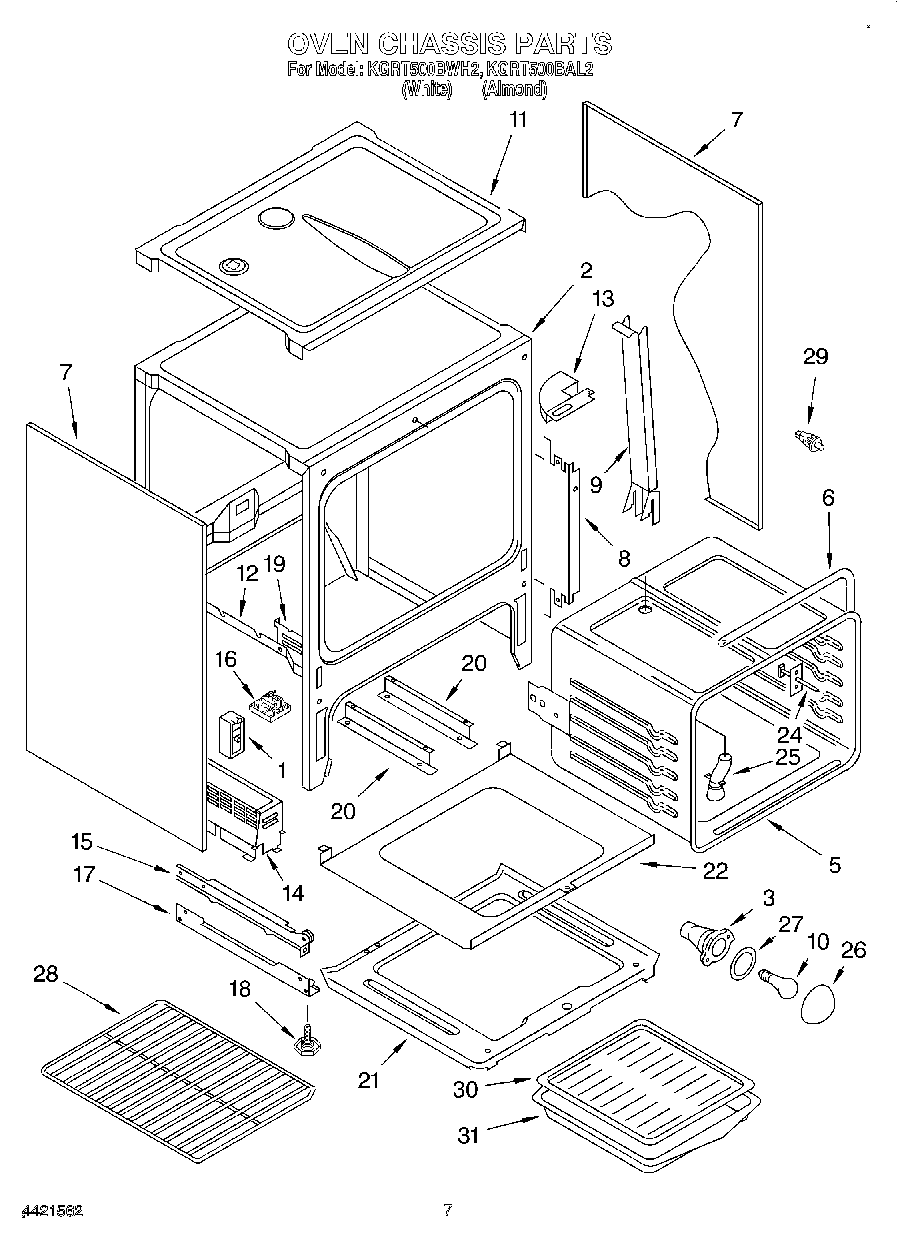

KGRT500BAL2 05 – OVEN CHASSIS

KGRT500BAL2 05 – OVEN CHASSIS

Written by

in

KGRT500BAL2 05 – OVEN CHASSIS

Products

PositionProduct
1WP4454392 Whirlpool Spark Module
2Chassis, Front
3W11594027 Whirlpool Range Oven Light Socket
5Oven Liner
6Gasket Oven
7Oven , Side L or R (White)
7Oven , Side L or R (Almond)
8Shield, Insulation
9Duct, Side Fan
10RANGE ONLY 40W 120V APPL BULB
11Burner Box
11Screw, (2)
11Screw
12Oven Bottom
13Duct, Top
14Support, Fan
15Rail, Drawer (Right)
15Drawer Rail, Left
16Screw, (3) No.8 x 1“
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
19Screw (2) 8 x 3/8
20Support Rail, Pan
21Shield
22Plate, Reflector
24Sensor, Heat
24Screw
25Vent Tube
25WP4159387 Whirlpool Compactor Screw
26WP9781049 Whirlpool Light Lens
27WP3184533 Whirlpool Range Light Lens Gasket
28Rack, Standard
29Switch, Door
31WPL 9751745
31Insulation
31Insulation, Rear
314396923 Whirlpool Broil Pan Set Gray Porcelain
31WPL 9751164
31WPL 9751844
31WA906B Whirlpool Cooktop Glass Scraper
31W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
