KGRT500BWH3 01 – COOKTOP

KGRT500BWH3 01 – COOKTOP

Written by

in

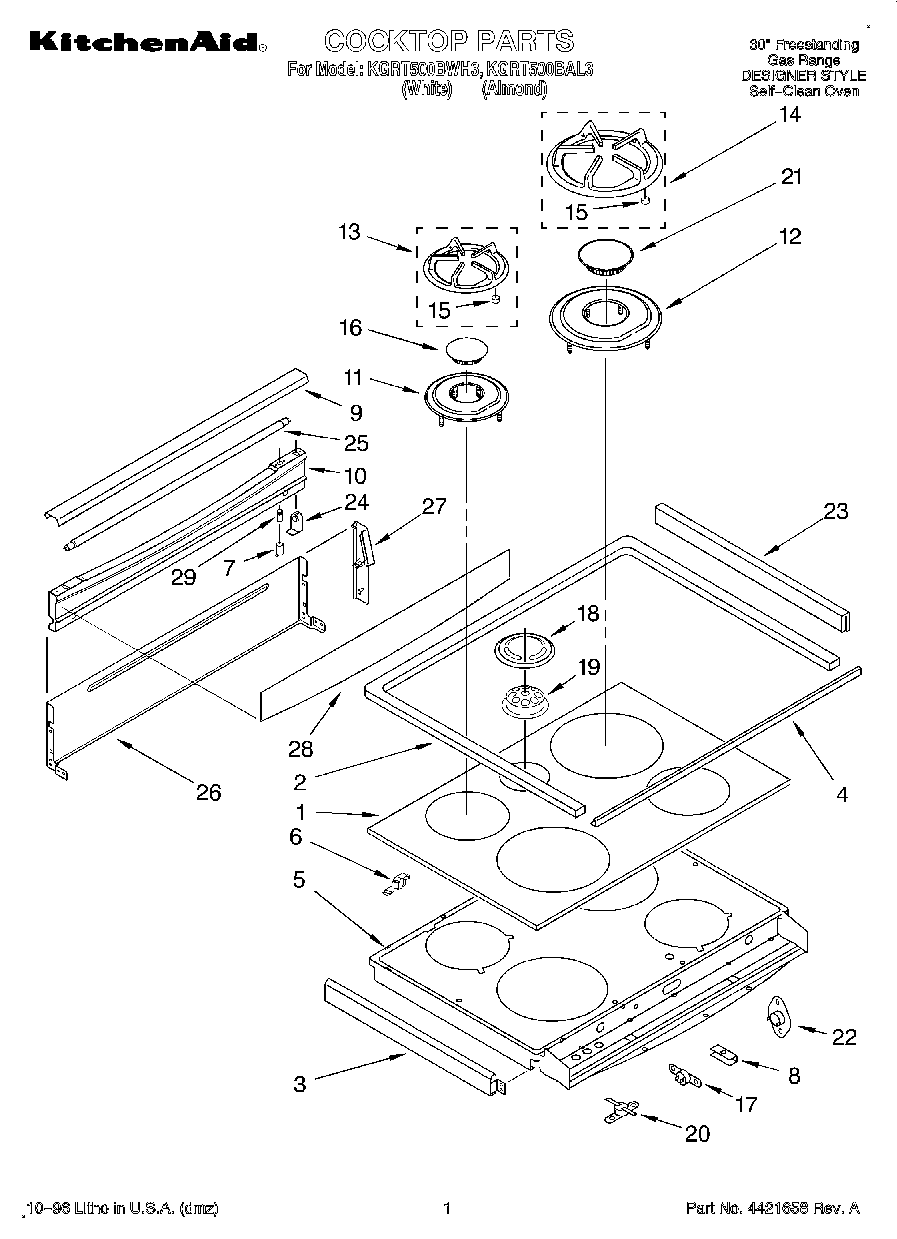

KGRT500BWH3 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (White)
2WP9780939 Whirlpool Cooktop Gasket
3Trim, Cooktop (Almond (Right))
3Trim, Cooktop (White (Right))
3Trim, Cooktop (Left Hand) (Almond)
3(Trim, Cooktop (Left Hand)) (White)
4Gasket, Cooktop (Almond)
4Gasket, Cooktop (Grey)
5Support, Element
6Bracket, Pivot
7Starter, Holder
8Screw, 10-16 x 1
8Support Clip (4)
9Cover, Light (Almond)
9Cover, Light (White)
10Backsplash (White)
10Backsplash (Almond)
11Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
11Bezel, Cooktop (Small) (White)
12Nut (4)
12Bezel, Cooktop (Large) (White)
12Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
13Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
13Grate, Small (LF & RR) (Includes No. 12) (White Model)
14Grate, Large (RF & LR) (Includes No. 12) (White)
14Grate, Large (RF & LR) (Includes No. 12) (Almond)
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16Cap, Semi Rapid Small (2) (Almond Burner (2))
16Cap, Semi Rapid Small (2) (White)
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18WPL 9751271GW
18Cap, Vent (Almond Mdl.)
19WPL 9751366
20WP9759944 Whirlpool Thermostat
21Cap, Rapid Burner Large (2) (Almond)
21Cap, Rapid Burner Large (2) (White)
22WPL 9752006
23Seal, Rubber
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Back Splash (Screw (4) 10AB x 1/2“)
26Cover, Backsplash
27(Endcap, Backsplash (Left Hand)) (Almond)
27Endcap, Backsplash (White (Right))
27Endcap, Backsplash (Almond (Right))
27(Endcap, Backsplash (Left Hand)) (White)
28Glass, Backsplash
29Starter, Light
