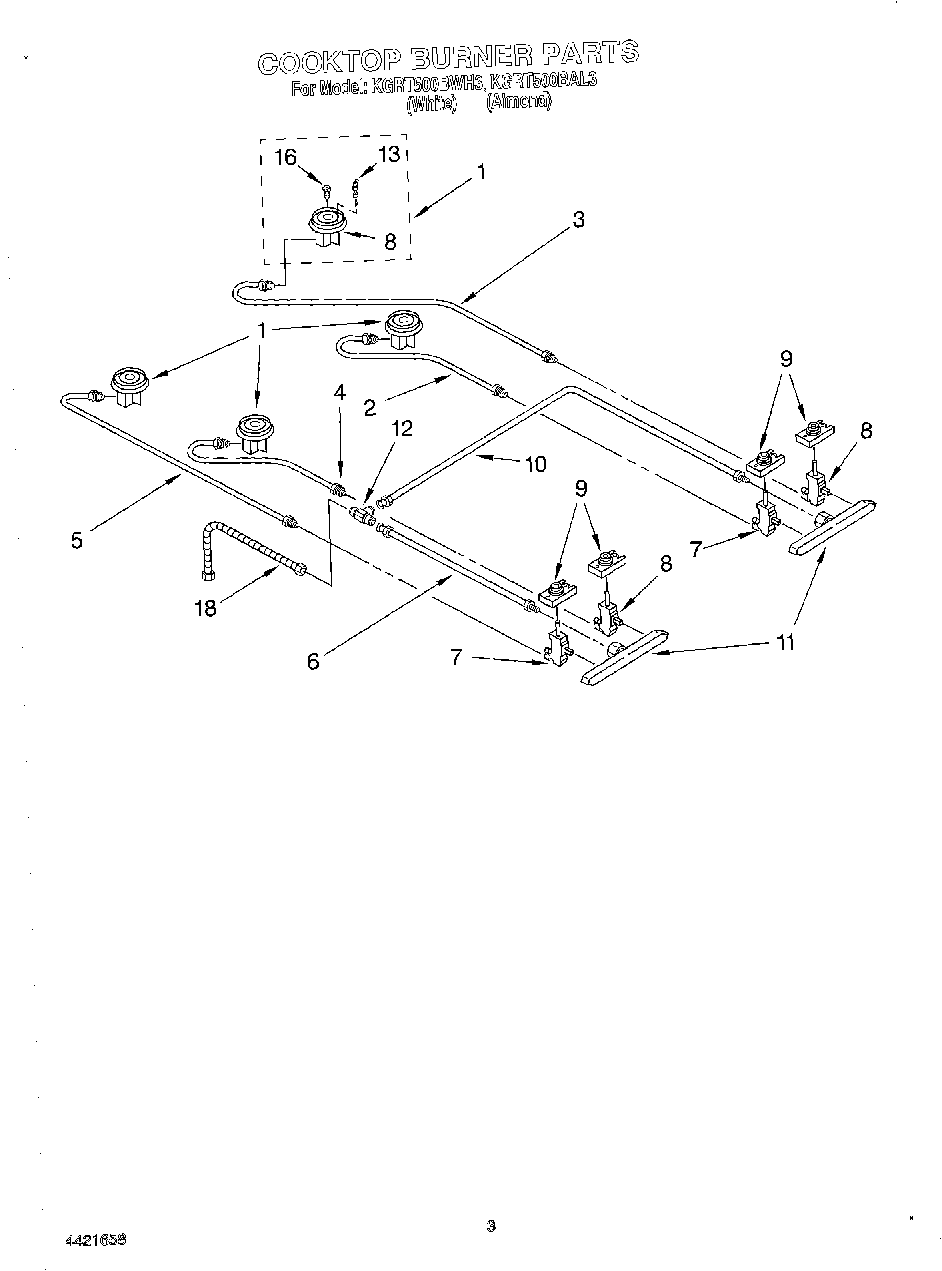

KGRT500BWH3 02 – COOKTOP BURNER

Products

Position	Product
1	WPL 3185821
1	WPL 3185822
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Tubing, Manifold
7	Valve, Burner (Small (2))
8	Valve, Burner (Large (2))
8	Bolt (Gas Valve)
9	Switch, Ignitor (4)
10	Tubing, Manifold (Right)
11	Manifold (2)
12	Tee, Flare
13	Nut
13	Electrode
16	Orifice, Burner (Small Burner)
16	Orifice, Burner (Large Burner)
18	Tubing, Flex
