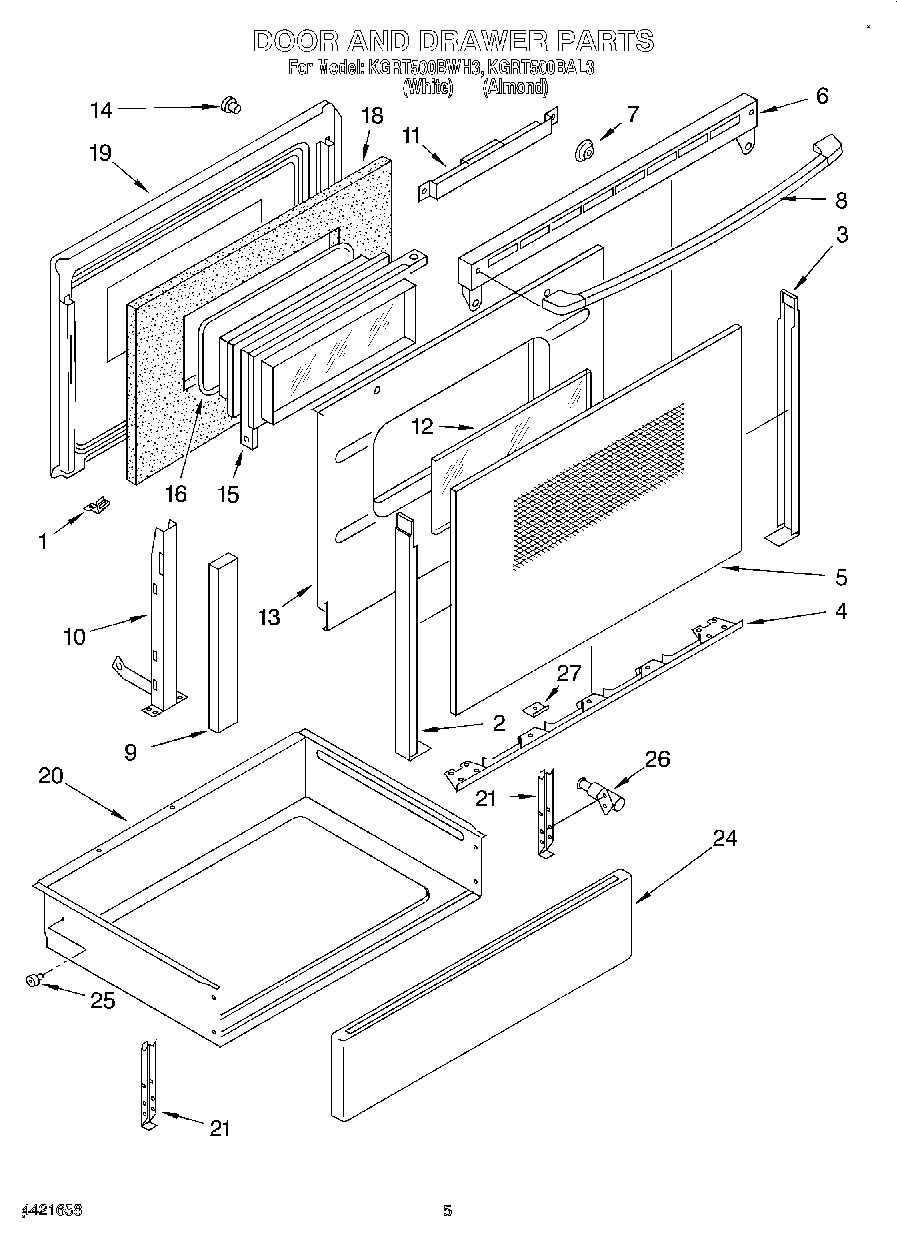

KGRT500BWH3 04 – DOOR AND DRAWER

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (White)
2	Trim, Door-Left (Almond)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Almond)
4	Trim, Door Bottom (White)
4	Trim, Door Bottom (Almond)
5	Glass, Door (White)
5	Glass, Door (Almond)
6	Vent, Door (Almond)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (White)
7	Spacer, Door Vent
8	Handle, Door (Almond Mdl.)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (White)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	Channel, Heat
11	WP4159387 Whirlpool Compactor Screw
12	Baffle, Glass
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	Window Pack (2)
16	Seal, Window
16	Screw
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
21	Screw (4) 10 x 1/2
24	Front, Drawer (Almond)
24	Front, Drawer (White)
24	WP90296 Whirlpool Clip
25	814229 Whirlpool Primary Roller
26	Latch, Drawer
26	WPL 9780806
27	Retainer, Glass
