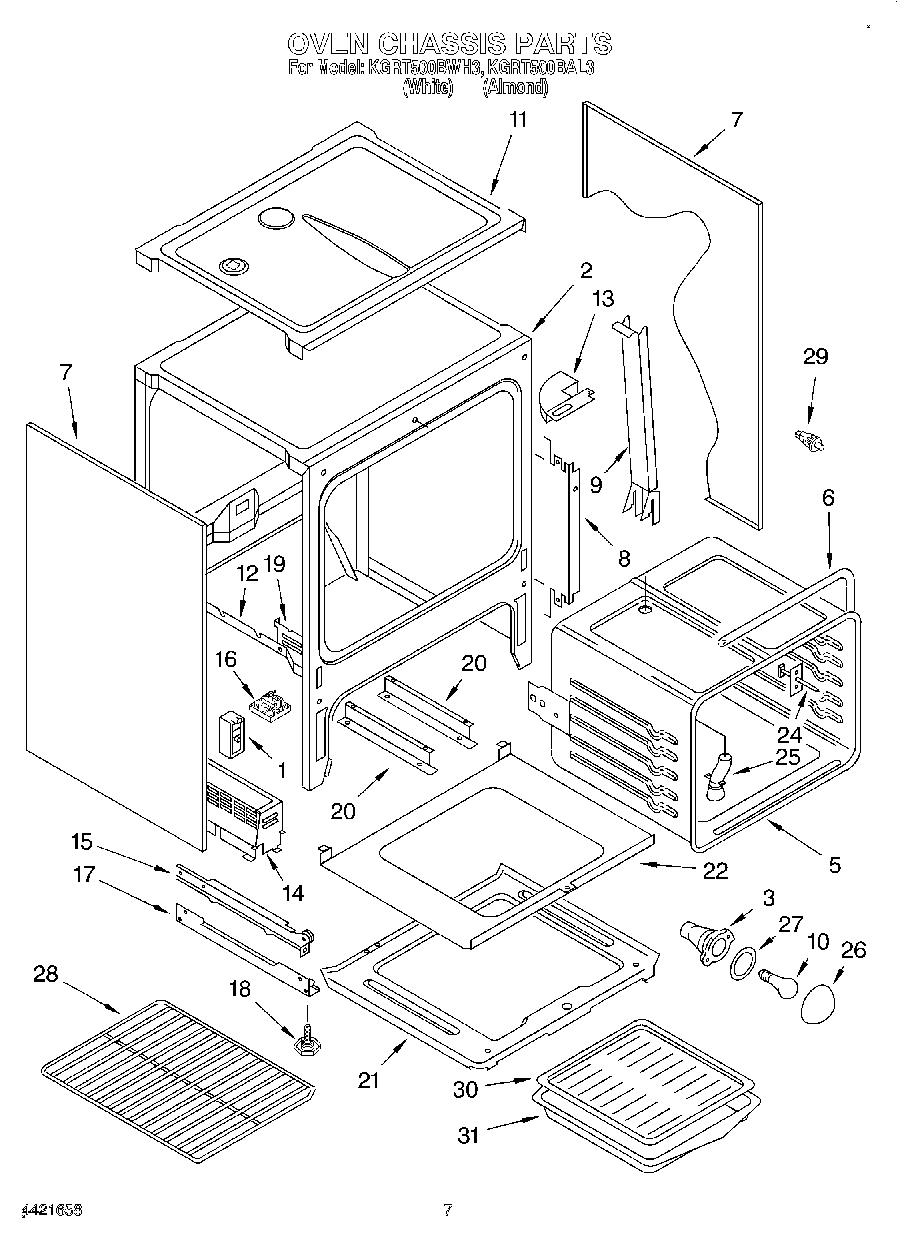

KGRT500BWH3 05 – OVEN CHASSIS

Products

Position	Product
1	WP4454392 Whirlpool Spark Module
2	Chassis, Front
3	W11594027 Whirlpool Range Oven Light Socket
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (White)
8	Shield, Insulation
9	Duct, Side Fan
10	RANGE ONLY 40W 120V APPL BULB
11	Screw, (2)
11	Screw
11	Burner Box
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Screw, (3) No.8 x 1“
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (2) 8 x 3/8
19	Hinge, Receiver (2)
20	Support Rail, Pan
21	Shield
22	Plate, Reflector
24	Screw
24	Sensor, Heat
25	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	WP9781049 Whirlpool Light Lens
27	WP3184533 Whirlpool Range Light Lens Gasket
28	Rack, Standard
29	Switch, Door
31	4396923 Whirlpool Broil Pan Set Gray Porcelain
