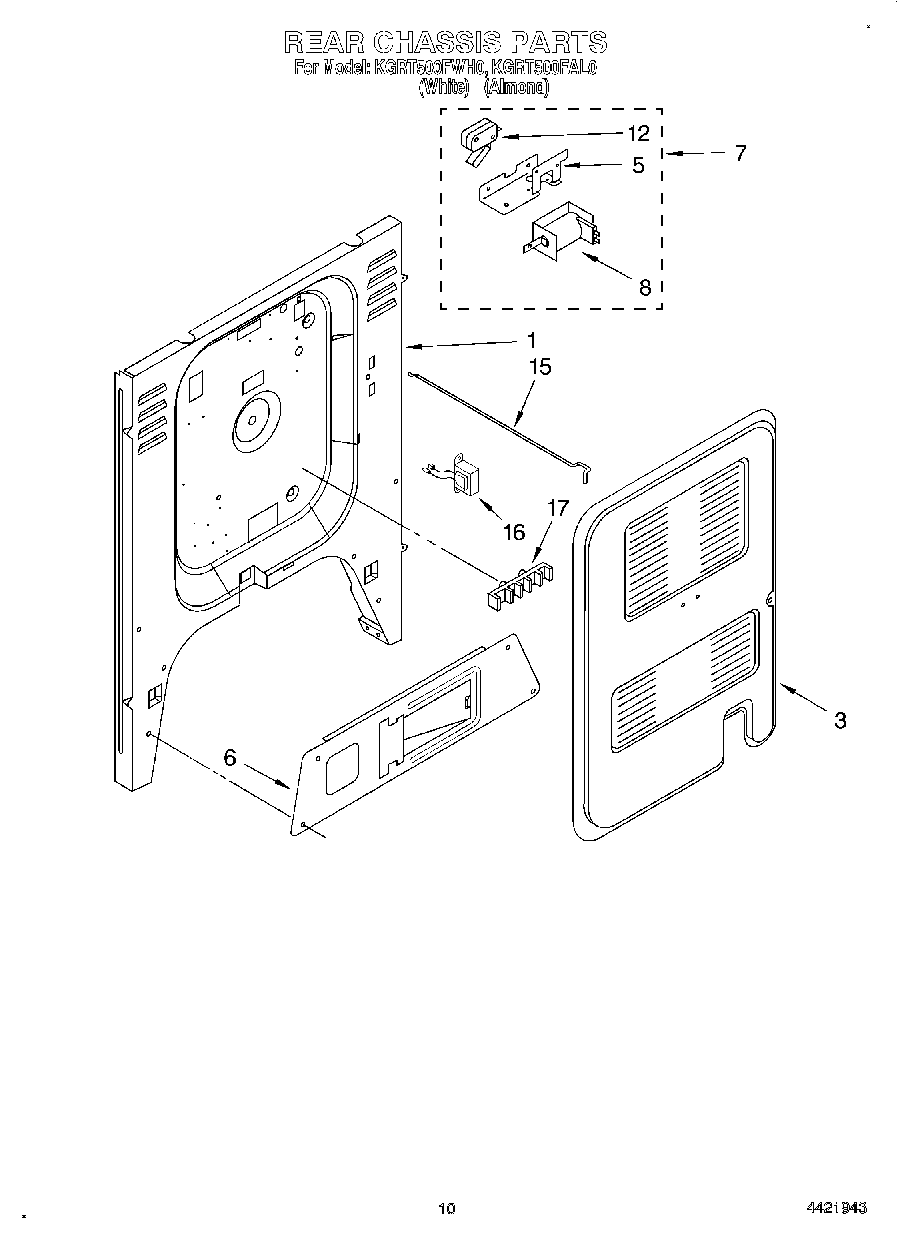

KGRT500FAL0 07 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Smart & Easy Guide)
	WPW10339879 Whirlpool Wire Tie
	8528351 Whirlpool Clip
	WPL 9751868
	WPL 9750376
	WPL 9751750
	WPL 9752769
	WPL 9781055
	WPL 3190208
	WPL 9751875
	WPL 9752176
	WPL 9752770
	WPL LIT9752397
	WPL LIT9752668
	WPL LIT9752669
	WPL LIT9752689
1	Back panel, Chassis
1	340184 Whirlpool Screw
3	Screw, (2) 10 x 3/8
3	Panel, Rear Cover
5	Bracket, Lock
6	Bracket, Regulator Valve
7	Oven Lock Assembly
8	Washer
8	Solenoid
8	Screw, (2) 10-32 x 5/16
12	Nut (2)
12	Screw, (2)
12	Switch, Interlock
15	Rod, Lock
16	Ballast, Lamp
16	WP4159387 Whirlpool Compactor Screw
17	Insulation, Rear
17	Paint, Spray (13 Oz.) (Platinum)
17	Enamal, Toast (1 Qt. Uncut)
17	Platinum (Uncut)
17	WPL 72112
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	WPL 799832
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WA906B Whirlpool Cooktop Glass Scraper
17	WPL 9752717
17	Golden Harvest (Uncut)
17	350956 Whirlpool Spray Assembly
17	72017 Whirlpool Appliance Touch-Up Paint White
17	799344 Whirlpool Refrigerator Paint
17	WP72107 Whirlpool Touchup
17	Almond (Uncut)
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	72113 Whirlpool Touch-Up Paint
17	WPL 9751844
17	WPL 9751164
17	Toast
17	Golden Harvest
17	350930 Whirlpool White Spray Paint
17	Grease
17	8212471 Whirlpool Oven Paint
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	242831 Whirlpool Oven Wire
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	3400964 Whirlpool Oven Clip
17	WPL 9751745
17	paint, spray 13 oz. (coffee)
17	Paint, Spray 13 Oz. (Avocado)
17	285006 Whirlpool Spray
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	Wire, 25` Roll (Black 14 Ga.)
17	Screw, (2) 10-16 x 1
17	Insulation
17	WP8203546 Whirlpool Terminal Block
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25“ Roll (White 14 GA.)
17	1
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Wire (12 Ga. 150 c Black)
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
