KGRT500FAL1 02 – COOKTOP BURNER

KGRT500FAL1 02 – COOKTOP BURNER

Written by

in

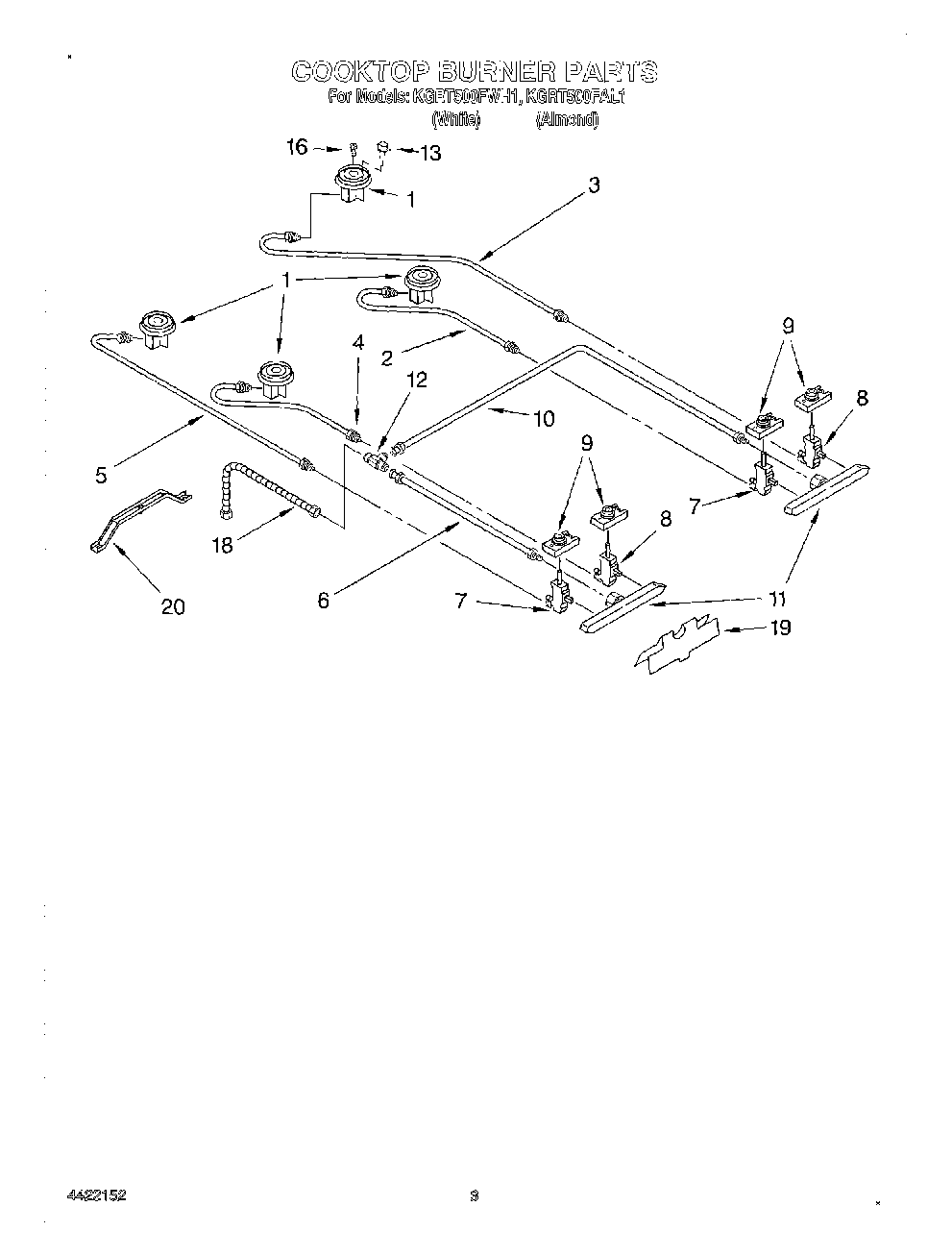

KGRT500FAL1 02 – COOKTOP BURNER

Products

PositionProduct
1Burner, Cooktop (Small (2))
1Burner, Cooktop (Large (2))
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold (Left)
7Valve, Burner (Small (2))
8Valve, Burner (Large (2))
8Bolt (Gas Valve)
9Switch, Ignitor (4)
10Tubing, Manifold (Right)
11Manifold (2)
12Tee, Flare
13Electrode
13Nut
16Orifice, Burner (Large Burner)
16Orifice, Burner (Small Burner)
18Tubing, Flex
19Bracket, Manifold
20Bracket, Burner
