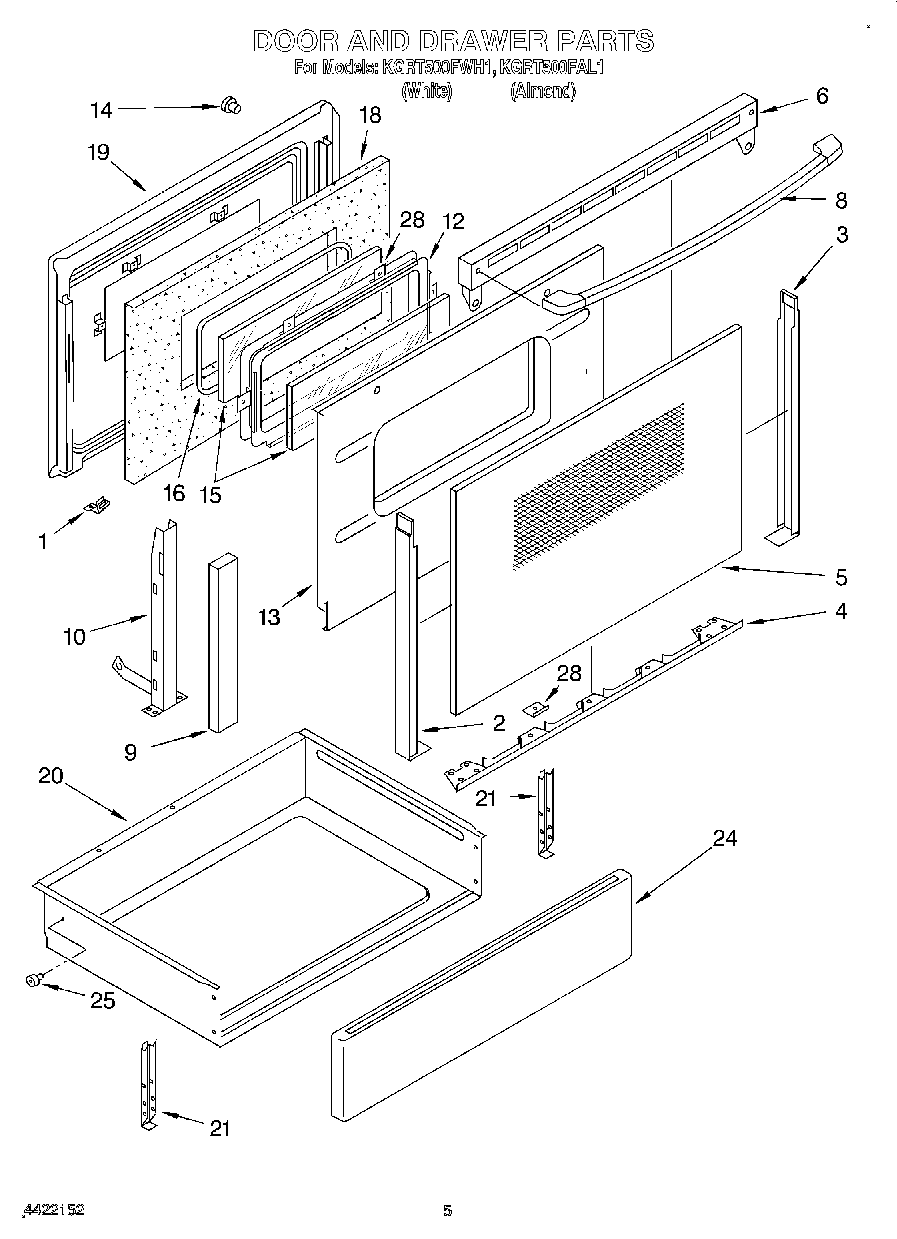

KGRT500FAL1 04 – DOOR AND DRAWER

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (Almond)
2	Trim, Door-Left (White)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Almond)
4	Trim, Door Bottom (White)
4	Trim, Door Bottom (Almond)
5	Glass, Door (Almond)
5	Glass, Door (White)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (Almond)
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (White)
6	Back Splash (Screw (4) 10AB x 1/2“)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (White)
8	Handle, Door (Almond)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	WP9781654 Whirlpool Door Glass
16	Seal, Window
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Screw (4) 10 x 1/2
21	Bracket, Drawer
24	Front, Drawer (Almond)
24	Front, Drawer (White)
25	814229 Whirlpool Primary Roller
28	WP4159387 Whirlpool Compactor Screw
28	Spacer, Door (8)
