KGRT500FAL2 02 – COOKTOP BURNER

KGRT500FAL2 02 – COOKTOP BURNER

Written by

in

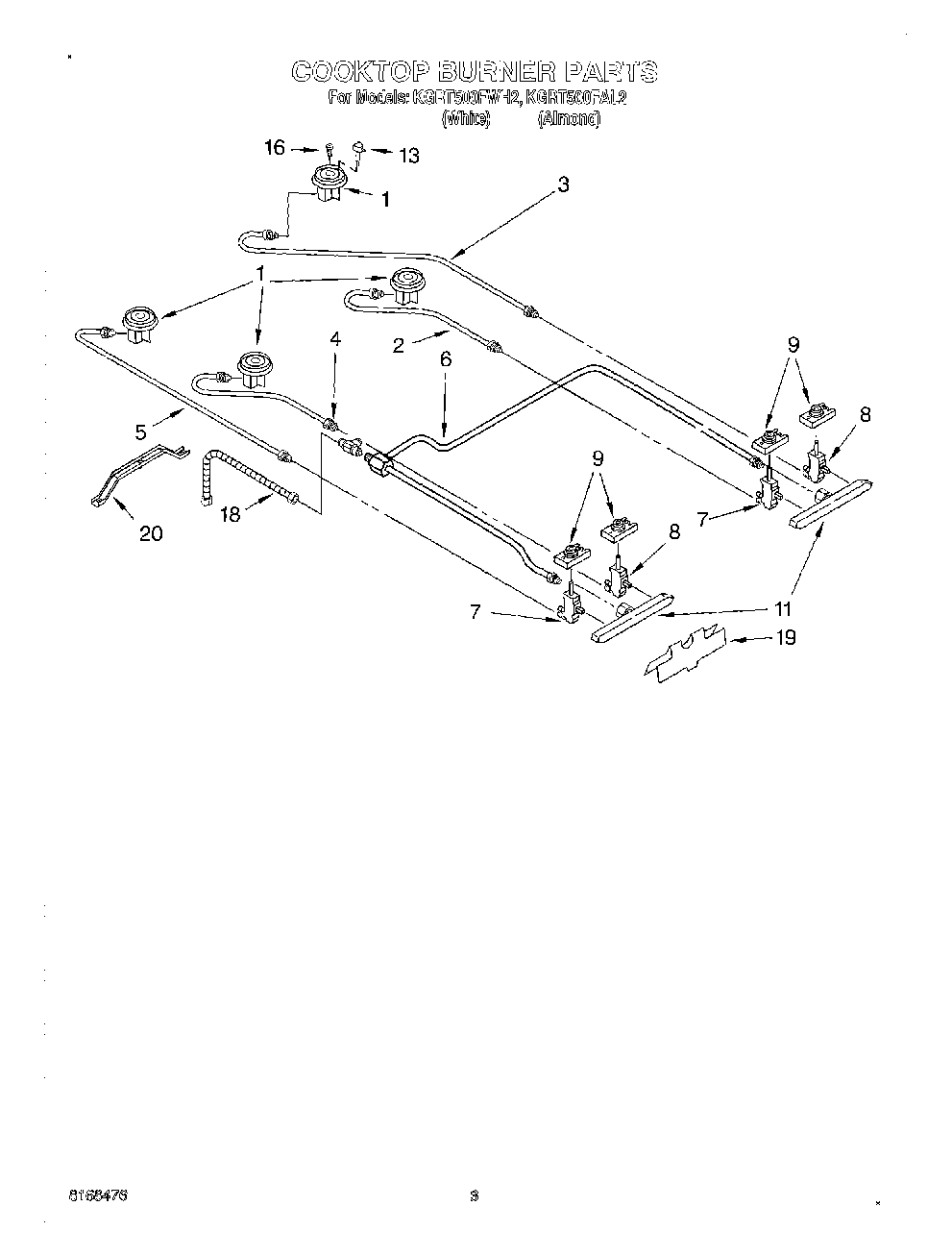

KGRT500FAL2 02 – COOKTOP BURNER

Products

PositionProduct
1Burner, Cooktop (Large (2))
1Burner, Cooktop (Small (2))
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Valve, Burner (Small (2))
8Valve, Burner (Large (2))
8Bolt (Gas Valve)
9Switch, Ignitor (4)
11Manifold (2)
13Electrode
13Speed Nut
16Orifice, Burner (Large Burner)
16Orifice, Burner (Small Burner)
18Tubing, Flex
19Bracket, Manifold
20Bracket, Burner
