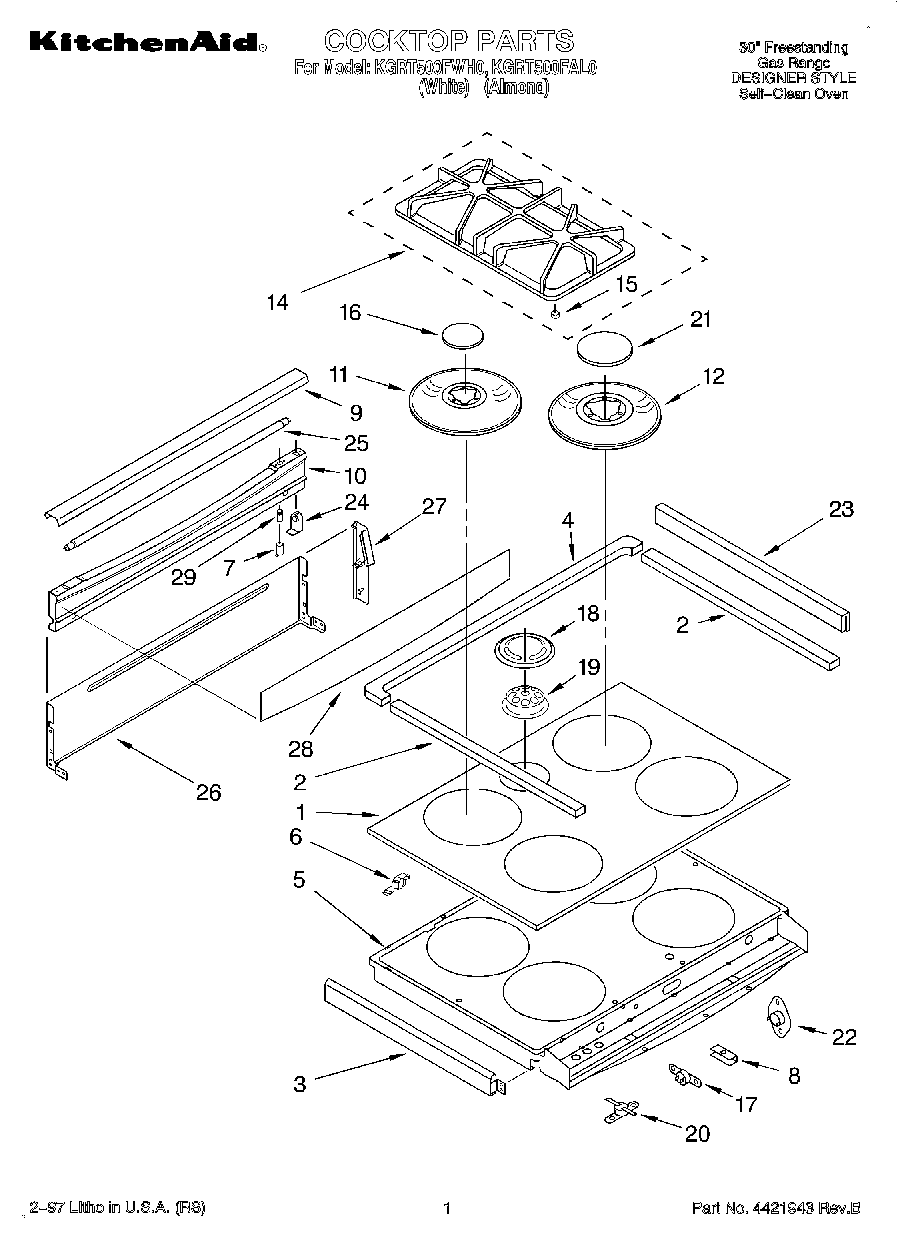

KGRT500FWH0 01 – COOKTOP

KGRT500FWH0 01 – COOKTOP

Written by

in

KGRT500FWH0 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (White)
2WP9780939 Whirlpool Cooktop Gasket
3Trim, Cooktop (Left Hand) (Almond)
3Trim, Cooktop (Almond (Right))
3Trim, Cooktop (White (Right))
3(Trim, Cooktop (Left Hand)) (White)
4Gasket, Cooktop (Grey)
4Gasket, Cooktop (Almond)
5Support, Element
6Bracket, Pivot
7Starter, Holder
8Support Clip (4)
8Screw, 10-16 x 1
9Cover, Light (Almond)
9Cover, Light (White)
10Backsplash (Almond)
10Backsplash (White)
11Bezel, Small LR-RF (Gray)
11Bezel, Small LR-RF (Black)
12Bezel, Large RR-LF (Black)
12Bezel, Large RR-LF (Gray)
14Grates, 2 Burner (Gray)
14Grates, 2 Burner (Black)
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16Cap, Small (2) (Black)
16Cap, Small (2) (Gray)
17Thermostat SPST (205)
17WP4159387 Whirlpool Compactor Screw
18Cap, Vent (Almond Mdl.)
18WPL 9751271GW
19WPL 9751366
20WP9759944 Whirlpool Thermostat
21Cap, Large (2) (Gray)
21Cap, Large (2) (Black)
22WPL 9752006
23Seal, Rubber
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Back Splash (Screw (4) 10AB x 1/2“)
26Cover, Backsplash
27Endcap, Backsplash (White (Right))
27Endcap, Backsplash (Almond (Right))
27(Endcap, Backsplash (Left Hand)) (White)
27(Endcap, Backsplash (Left Hand)) (Almond)
28Glass, Backsplash
29Starter, Light
