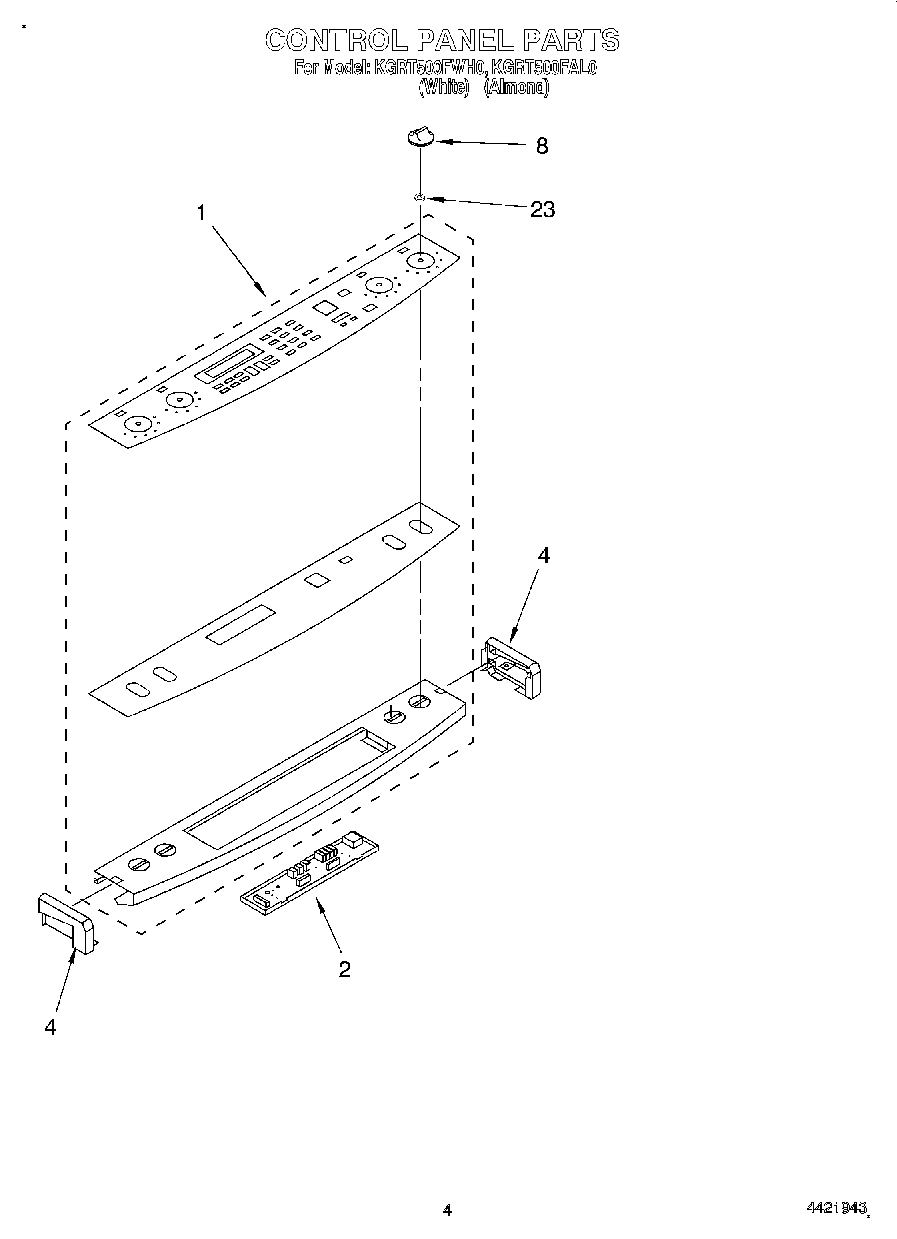

KGRT500FWH0 03 – CONTROL PANEL

KGRT500FWH0 03 – CONTROL PANEL

Written by

in

KGRT500FWH0 03 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (Almond Mdl.)
1Console, Glass (White Mdl.)
2Screw
2Timer, Electronic
4End Cap (White, Right)
4End Cap Right Hand (Almond)
4End Cap (Left Hand) (White)
4End Cap (Left Hand) (Almond)
4WP4159387 Whirlpool Compactor Screw
8Knobs, Control (White)
8Knobs, Control (Almond Mdl.)
23Washer, Console (4) (White Mdl.)
23Washer, Console (4) (Almond Mdl.)
