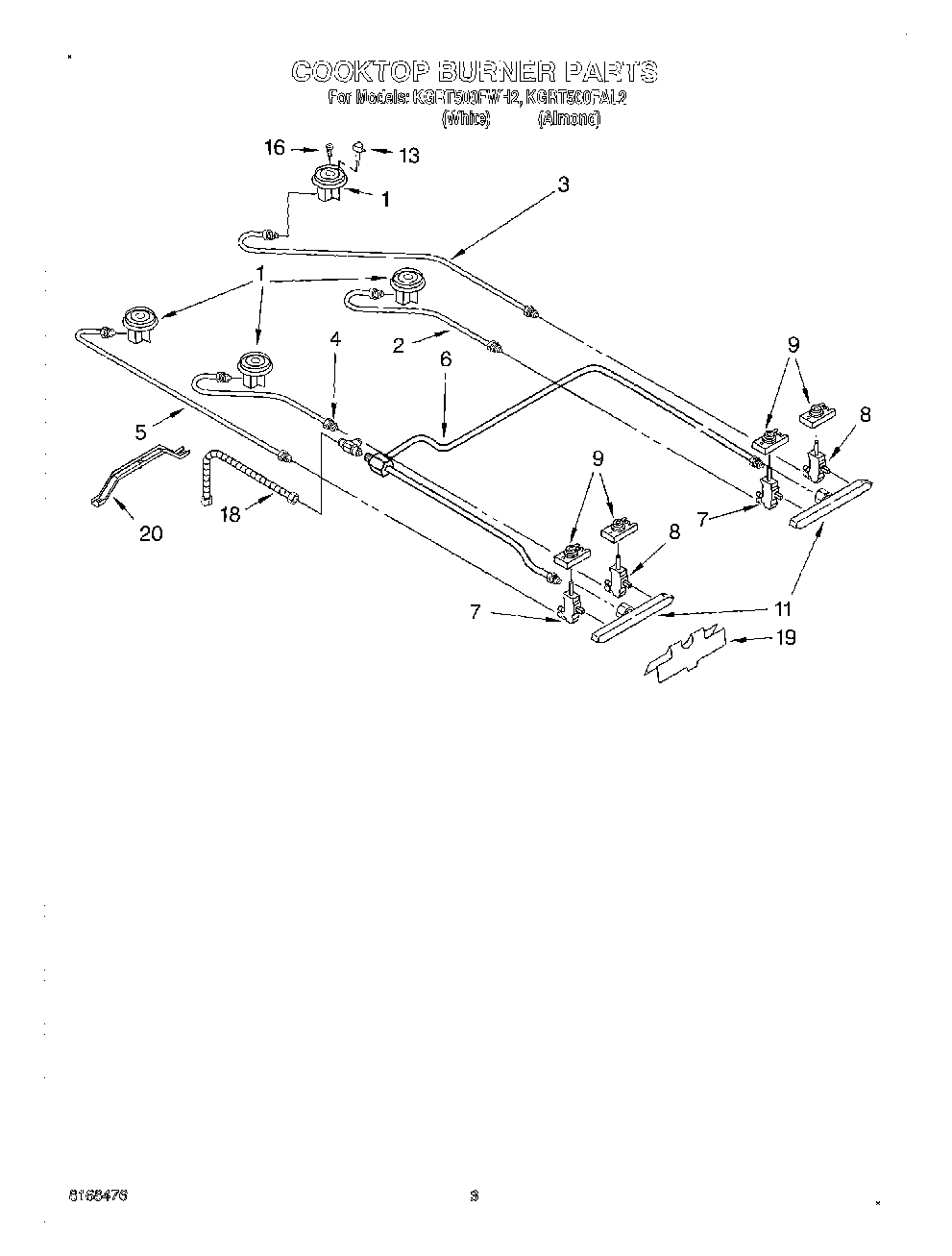

KGRT500FWH2 02 – COOKTOP BURNERadmin2025-04-26T11:31:11+00:00KGRT500FWH2 02 – COOKTOP BURNER
Products
| Position | Product |
|---|
| 1 | Burner, Cooktop (Large (2)) |
| 1 | Burner, Cooktop (Small (2)) |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Tubing, Manifold |
| 7 | Valve, Burner (Small (2)) |
| 8 | Valve, Burner (Large (2)) |
| 8 | Bolt (Gas Valve) |
| 9 | Switch, Ignitor (4) |
| 11 | Manifold (2) |
| 13 | Electrode |
| 13 | Speed Nut |
| 16 | Orifice, Burner (Large Burner) |
| 16 | Orifice, Burner (Small Burner) |
| 18 | Tubing, Flex |
| 19 | Bracket, Manifold |
| 20 | Bracket, Burner |
