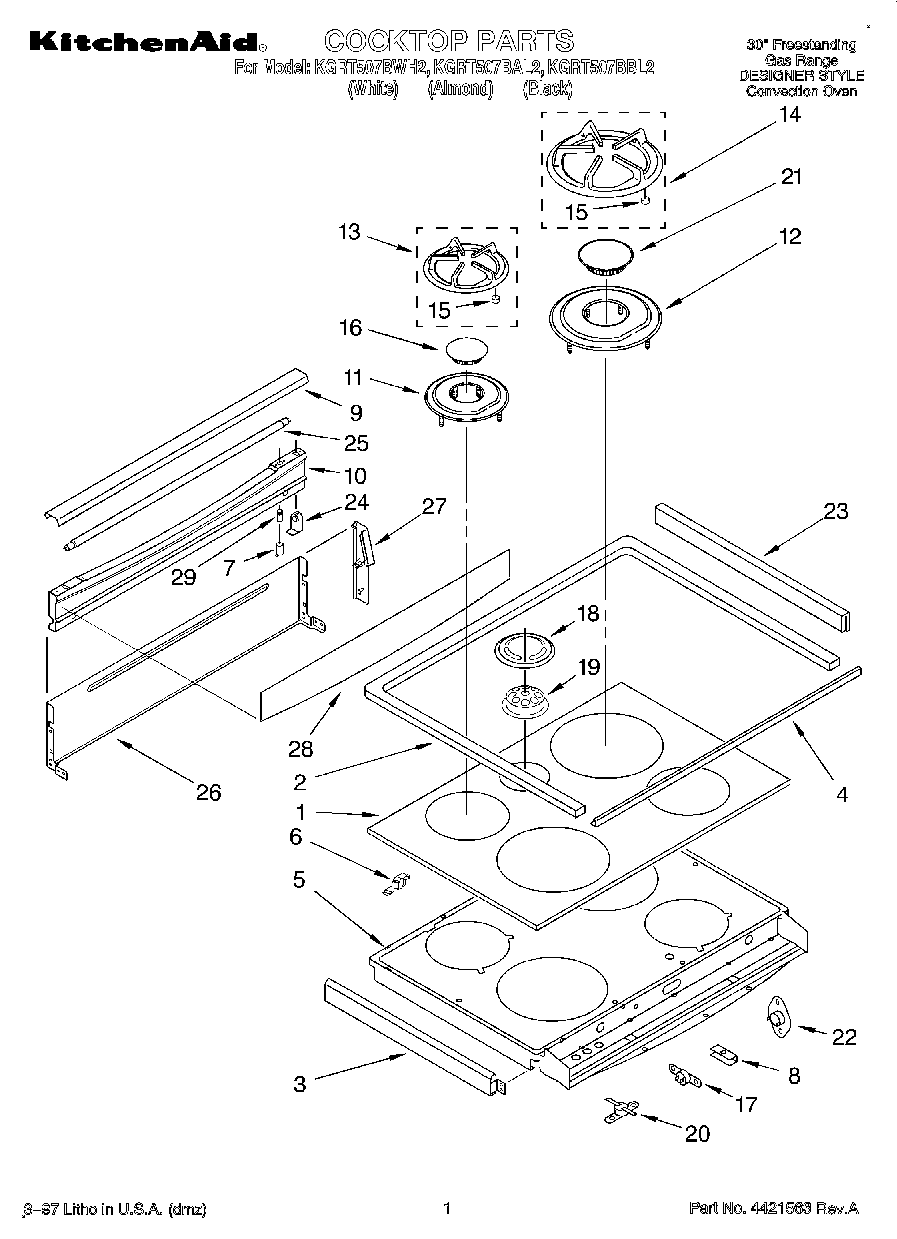

KGRT507BAL2 01 – COOKTOP, LITERATURE

Products

Position	Product
	WPL LIT9751686
	WPL LIT9751683
	WPL LIT9780959
	WPL LIT9751761
	WPL LIT9752390
	WPL LIT9752669
1	Cooktop, Ceran (Almond)
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Black)
2	WP9780939 Whirlpool Cooktop Gasket
3	Trim, Cooktop (Black (Right))
3	Trim, Cooktop (White (Right))
3	Trim, Cooktop (Almond (Right))
3	Trim, Cooktop (Left Hand) (Almond)
3	WPL 9751276PB
3	(Trim, Cooktop (Left Hand)) (White)
4	Gasket, Cooktop (Almond)
4	Gasket, Cooktop (Black)
4	Gasket, Cooktop (Grey)
5	Support, Element
6	Bracket, Pivot
7	Starter, Holder
8	Screw, 10-16 x 1
8	Support Clip (4)
9	Cover, Light (Black)
9	Cover, Light (Almond)
9	Cover, Light (White)
10	Backsplash (Almond)
10	Backsplash (Black)
10	Backsplash (White)
11	Bezel, Cooktop (Small) (Black)
11	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
11	Bezel, Cooktop (Small) (White)
12	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
12	Bezel, Cooktop (Large) (Black)
12	Nut (4)
12	Bezel, Cooktop (Large) (White)
13	Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
13	Grate, Small (LF & RR) (Includes No. 12) (White Model)
13	Grate, Small (LF & RR) (Includes No. 12) (Black Model)
14	Grate, Large (RF & LR) (Includes No. 12) (White)
14	Grate, Large (RF & LR) (Includes No. 12) (Black)
14	Grate, Large (RF & LR) (Includes No. 12) (Almond)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	Cap, Semi Rapid Small (2) (Almond Burner (2))
16	Cap, Semi Rapid Small (2) (White)
16	Cap, Semi Rapid Small (2) (Black)
17	WP4159387 Whirlpool Compactor Screw
17	Thermostat SPST (205)
18	Cap, Vent (Almond Mdl.)
18	WPL 9751271GW
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	Cap, Rapid Burner Large (2) (White)
21	Cap, Rapid Burner Large (2) (Almond)
21	Cap, Rapid Burner Large (2) (Black)
22	WPL 9752006
23	Seal, Rubber
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Back Splash (Screw (4) 10AB x 1/2“)
26	Cover, Backsplash
27	Endcap, Backsplash (White (Right))
27	Endcap, Backsplash (Black (Left))
27	(Endcap, Backsplash (Left Hand)) (Almond)
27	(Endcap, Backsplash (Left Hand)) (White)
27	Endcap, Backsplash (Almond (Right))
27	Endcap, Backsplash (Black (Right))
28	Glass, Backsplash
29	Starter, Light
