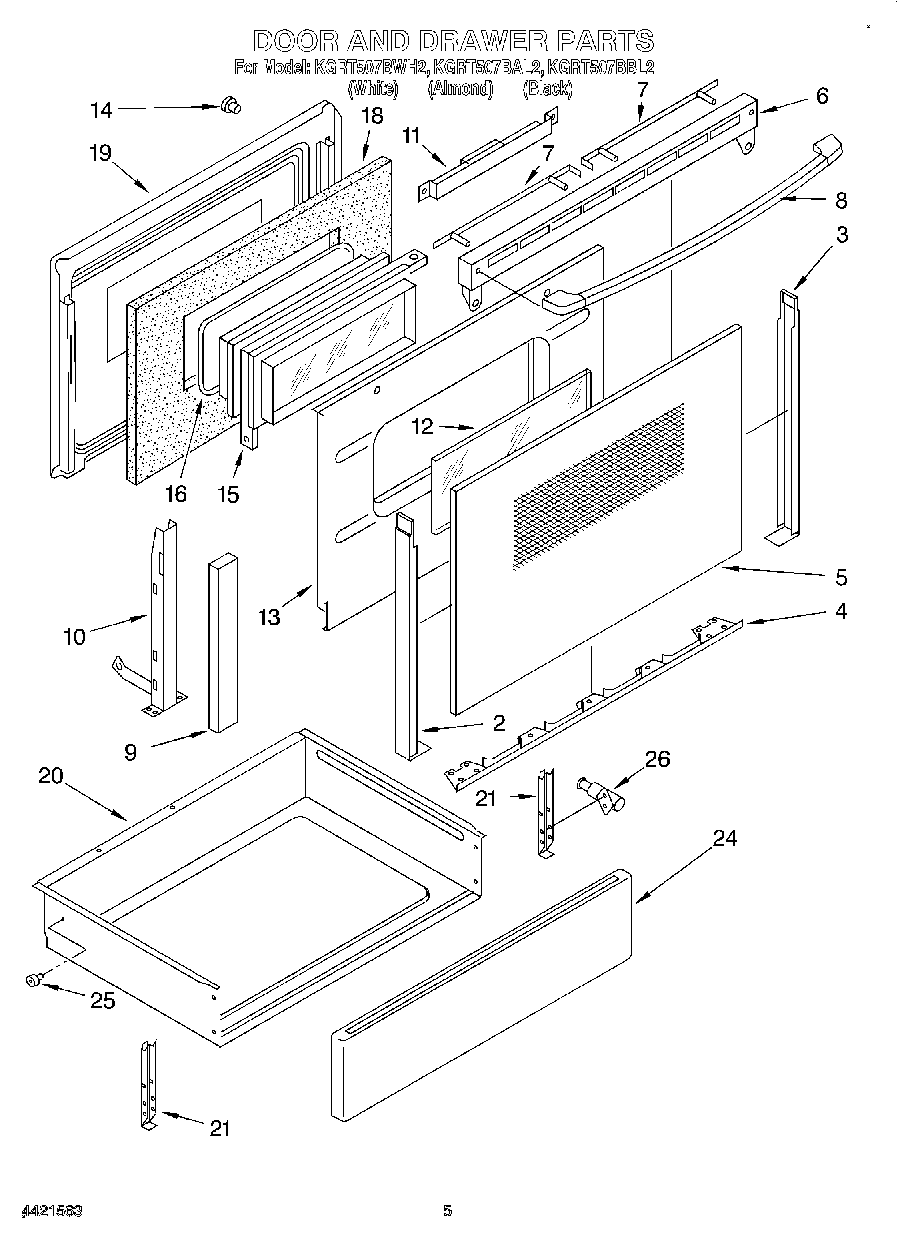

KGRT507BAL2 04 – DOOR AND DRAWER
Written by
in
KGRT507BAL2 04 – DOOR AND DRAWER
Products
Position
Product
2
Trim, Door-Left (Black)
2
Trim, Door-Left (Almond)
2
Trim, Door-Left (White)
3
Trim, Door-Right (Almond)
3
Trim, Door-Right (Black)
3
Trim, Door-Right (White)
4
Trim, Door Bottom (White)
4
Trim, Door Bottom (Almond)
4
Trim, Door Bottom (Black)
5
Glass, Door (White)
5
Glass, Door (Almond)
5
Glass, Door (Black)
6
Back Splash (Screw (4) 10AB x 1/2“)
6
Vent, Door (White)
6
Vent, Door (Almond)
6
Vent, Door (Black)
7
Vent Back
8
Handle, Door (Almond Mdl.)
8
Handle, Door (Black)
8
WPW10001180 Whirlpool Refrigerator Screw
8
Handle, Door (White)
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
11
WP4159387 Whirlpool Compactor Screw
11
Channel, Heat
12
Baffle, Glass
13
Shield Door
14
238614 Whirlpool Bumper Hinge
15
Window Pack (2)
16
Seal, Window
16
Screw
18
WPW10208653 Whirlpool Insulation
19
Liner, Door
20
Drawer & Roller
21
Bracket, Drawer
21
Screw (4) 10 x 1/2
24
Front, Drawer (Almond)
24
Front, Drawer (White)
24
Front, Drawer (Black)
25
814229 Whirlpool Primary Roller
26
Latch, Drawer
26
WPL 9780806
←
