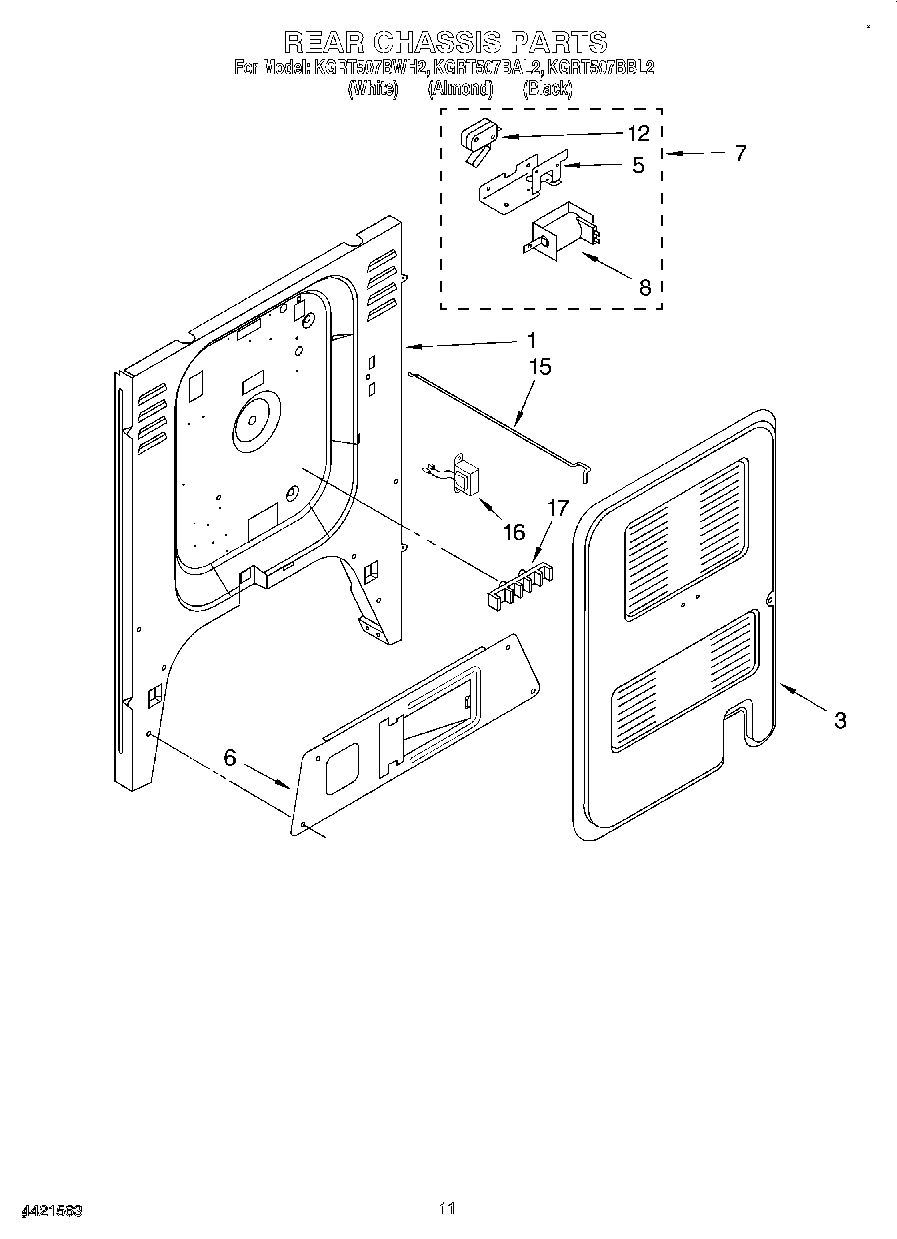

KGRT507BAL2 08 – REAR CHASSIS, OPTIONAL

KGRT507BAL2 08 – REAR CHASSIS, OPTIONAL

Written by

in

KGRT507BAL2 08 – REAR CHASSIS, OPTIONAL

Products

Position	Product
1	Back panel, Chassis
1	340184 Whirlpool Screw
3	Screw, (2) 10 x 3/8
3	Panel, Rear Cover
5	Bracket, Lock
6	Bracket, Regulator Valve
7	Oven Lock Assembly
8	Washer
8	Screw, (2) 10-32 x 5/16
8	Solenoid
12	Nut (2)
12	Screw, (2)
12	Switch, Interlock
15	Rod, Lock
16	Ballast, Lamp
16	WP4159387 Whirlpool Compactor Screw
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	1
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Wire (12 Ga. 150 c Black)
17	Wire (14 Ga. 150 c Yellow)
17	WPL 3190207
17	WP8203546 Whirlpool Terminal Block
17	WPL 3190058
17	WPL 3190208
17	WPL 9751708
17	WPL 9781055
17	Harness, Wire (Probe)
17	WPL 9751868
17	WPL 9751750
17	Grease
17	8212471 Whirlpool Oven Paint
17	Screw, (2) 10-16 x 1
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	WPL 799832
17	242831 Whirlpool Oven Wire
17	WPL 9750376
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	8528351 Whirlpool Clip
17	285006 Whirlpool Spray
17	WPW10339879 Whirlpool Wire Tie
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	350930 Whirlpool White Spray Paint
