KGRT507BAL3 01 – COOKTOP

KGRT507BAL3 01 – COOKTOP

Written by

in

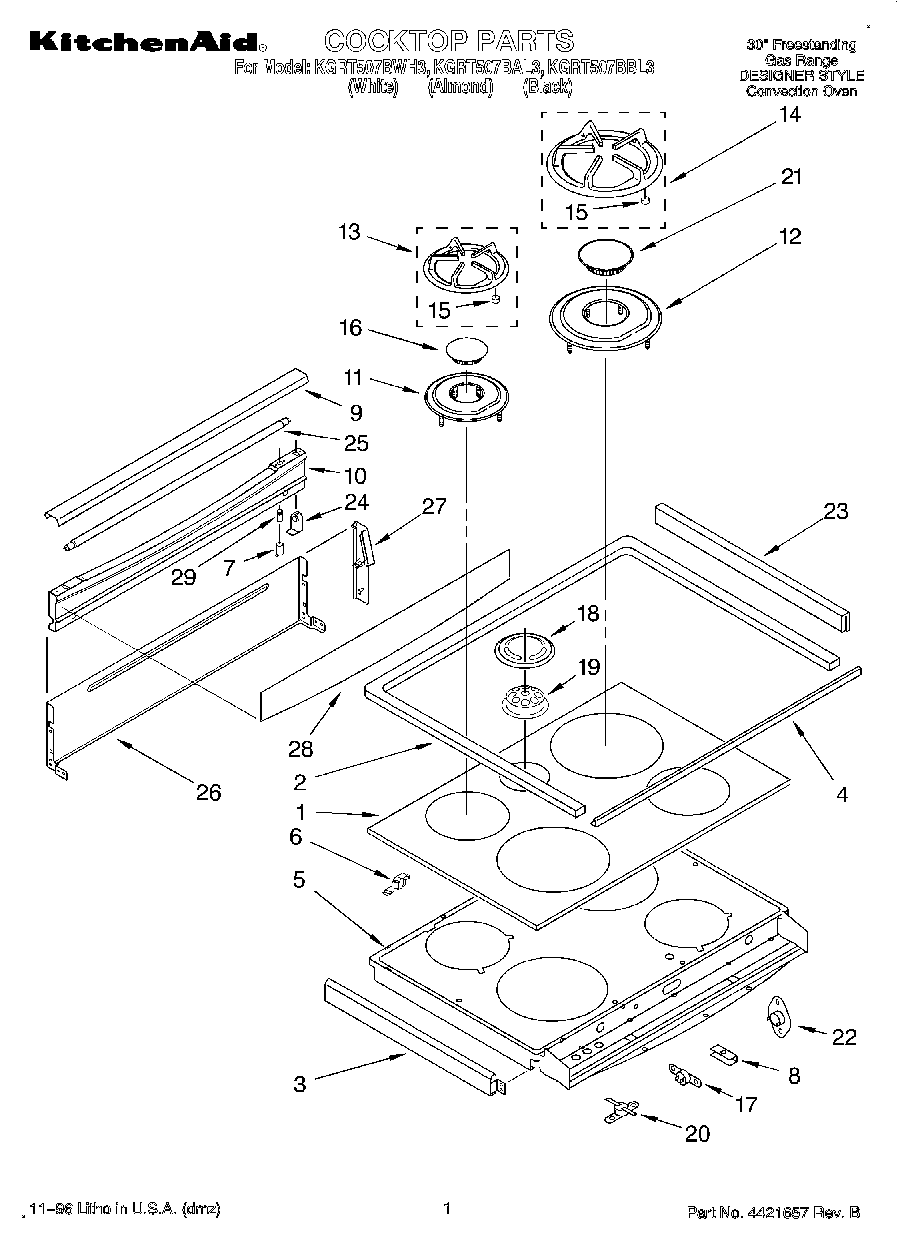

KGRT507BAL3 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Black)
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (White)
2WP9780939 Whirlpool Cooktop Gasket
3WPL 9751276PB
3Trim, Cooktop (Left Hand) (Almond)
3Trim, Cooktop (White (Right))
3Trim, Cooktop (Almond (Right))
3(Trim, Cooktop (Left Hand)) (White)
3Trim, Cooktop (Black (Right))
4Gasket, Cooktop (Grey)
4Gasket, Cooktop (Black)
4Gasket, Cooktop (Almond)
5Support, Element
6Bracket, Pivot
7Starter, Holder
8Screw, 10-16 x 1
8Support Clip (4)
9Cover, Light (White)
9Cover, Light (Black)
9Cover, Light (Almond)
10Backsplash (Black)
10Backsplash (White)
10Backsplash (Almond)
11Bezel, Cooktop (Small) (Black)
11Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
11Bezel, Cooktop (Small) (White)
12Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
12Bezel, Cooktop (Large) (White)
12Bezel, Cooktop (Large) (Black)
12Nut (4)
13Grate, Small (LF & RR) (Includes No. 12) (Black Model)
13Grate, Small (LF & RR) (Includes No. 12) (White Model)
13Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
14Grate, Large (RF & LR) (Includes No. 12) (Almond)
14Grate, Large (RF & LR) (Includes No. 12) (Black)
14Grate, Large (RF & LR) (Includes No. 12) (White)
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16Cap, Semi Rapid Small (2) (Black)
16Cap, Semi Rapid Small (2) (White)
16Cap, Semi Rapid Small (2) (Almond Burner (2))
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18Cap, Vent (Almond Mdl.)
18WPL 9751271GW
18WPL 9751271GB
19WPL 9751366
20WP9759944 Whirlpool Thermostat
21Cap, Rapid Burner Large (2) (Black)
21Cap, Rapid Burner Large (2) (White)
21Cap, Rapid Burner Large (2) (Almond)
22WPL 9752006
23Seal, Rubber
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
26Back Splash (Screw (4) 10AB x 1/2“)
27Endcap, Backsplash (Black (Left))
27Endcap, Backsplash (White (Right))
27Endcap, Backsplash (Almond (Right))
27(Endcap, Backsplash (Left Hand)) (Almond)
27Endcap, Backsplash (Black (Right))
27(Endcap, Backsplash (Left Hand)) (White)
28Glass, Backsplash
29Starter, Light
