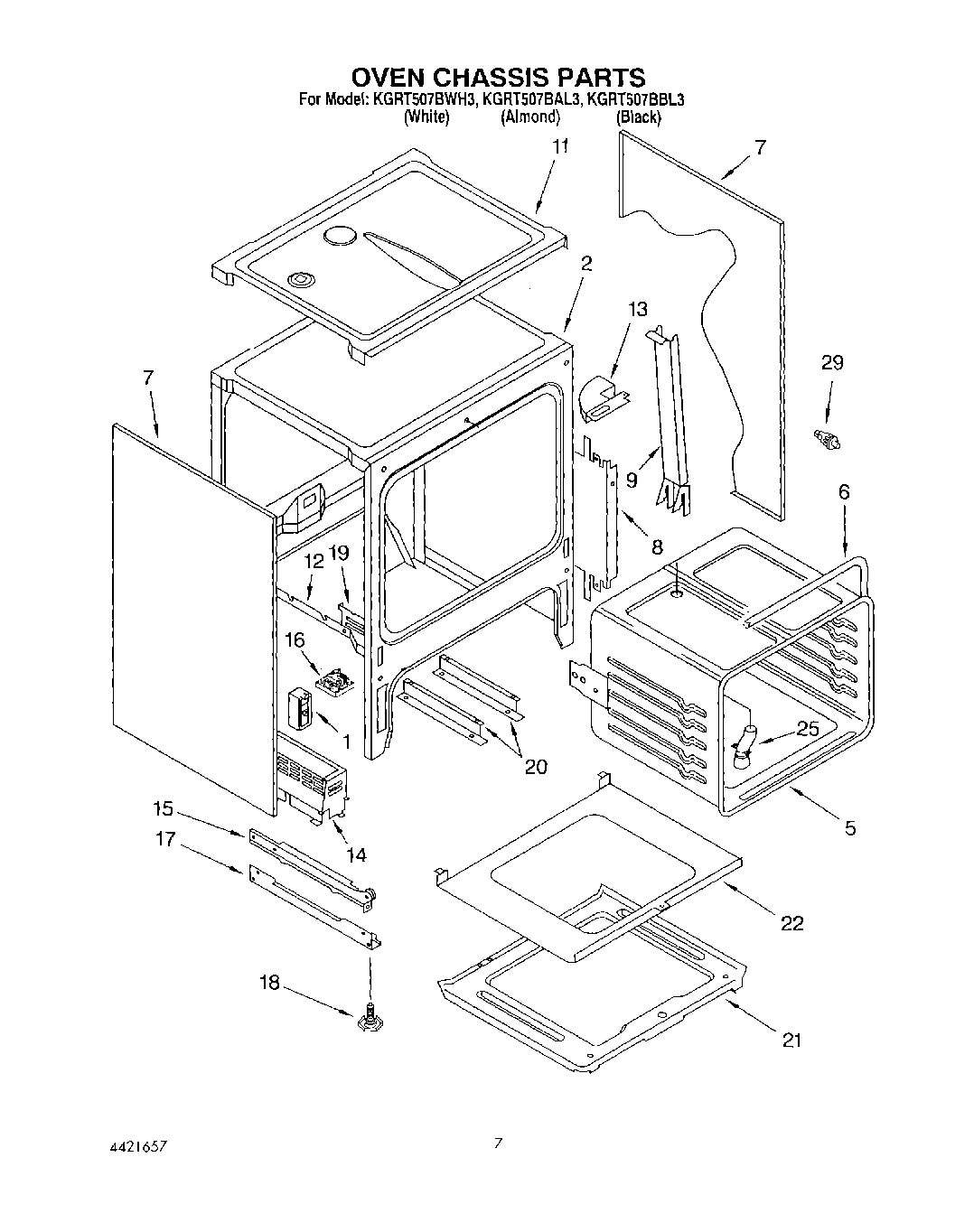

KGRT507BAL3 05 – OVEN CHASSIS

Products

Position	Product
1	WP4454392 Whirlpool Spark Module
2	Chassis, Front
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (Black)
7	Oven , Side L or R (White)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
11	Screw, (2)
11	Screw
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Screw, (3) No.8 x 1“
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (2) 8 x 3/8
19	Hinge, Receiver (2)
20	Support Rail, Pan
21	Shield
22	Plate, Reflector
25	Vent Tube
25	WP4159387 Whirlpool Compactor Screw
29	Switch, Door
