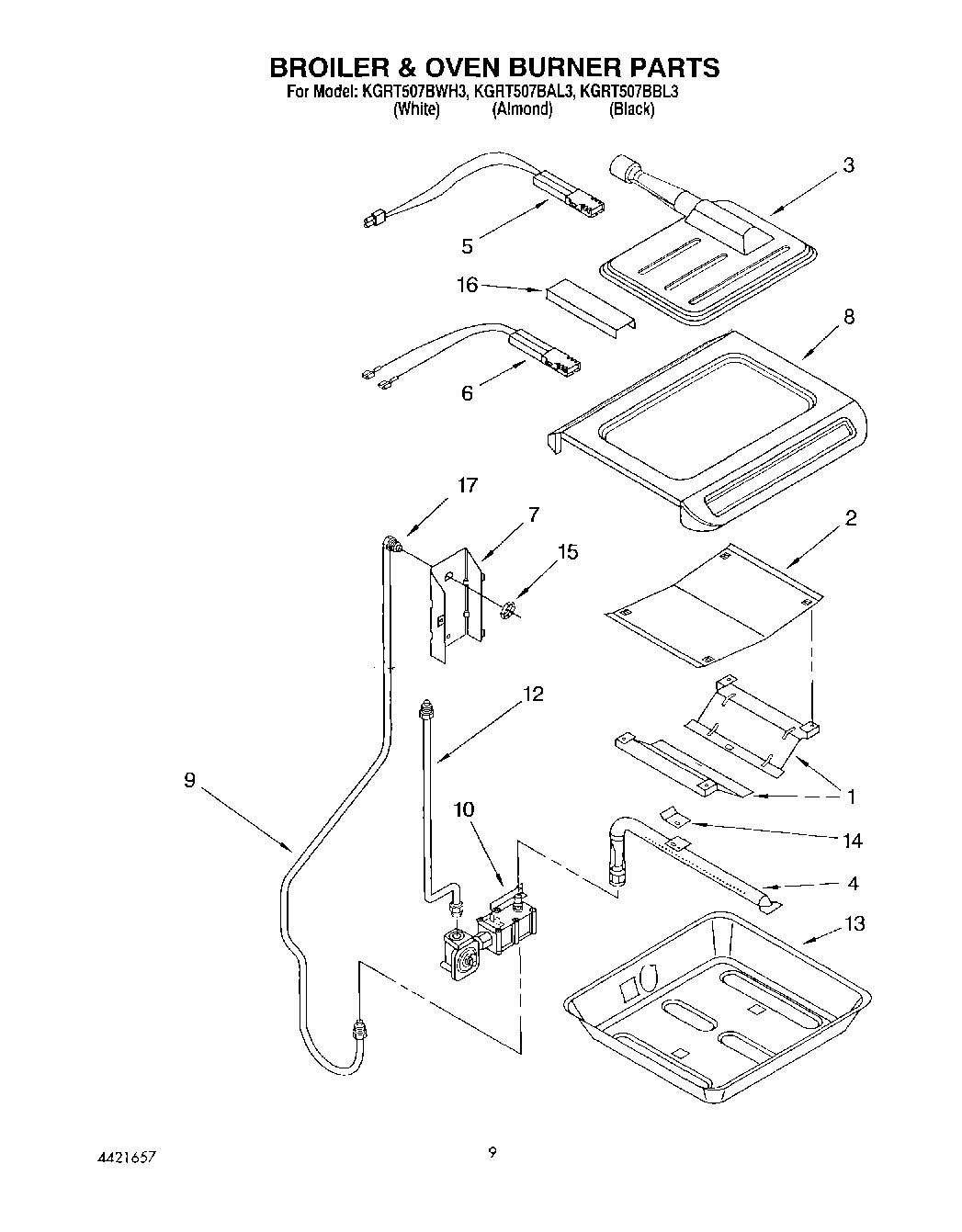

KGRT507BAL3 06 – BROILER AND OVEN BURNER

Products

Position	Product
1	Shield, Oven (2)
2	Flame Shield, Bake
3	Burner, Broiler
3	Screw, 10-24 x 1/2
4	Burner, Bake
5	WP9782065 Whirlpool Oven Igniter
6	WP9751123 Whirlpool Oven Igniter
7	WP4159387 Whirlpool Compactor Screw
7	Bracket, Broil Shooter
8	Pan, Oven Bottom
9	Tubing, Broil
10	Screw. 1/4-20 x 1/2 (4)
10	WP9755424 Whirlpool Gas Valve
12	Tubing, Valve
13	Pan Support, Bake
14	Screw, 10 x 3/8
14	Bracket, Bake
15	Nut 18 5/8
16	Bracket, Gas Broiler
17	Orifice 54
