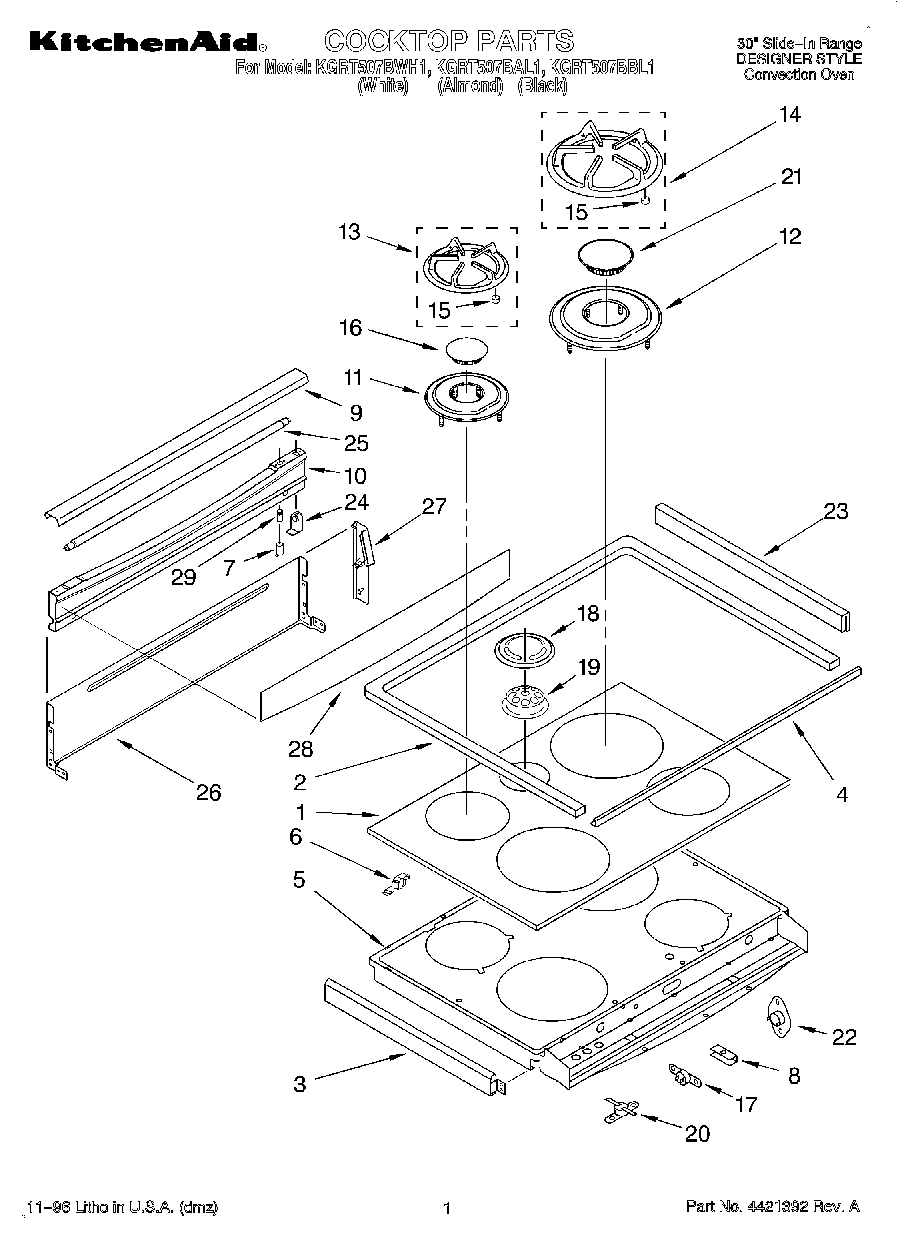

KGRT507BWH1 01 – COOKTOP, LITERATURE

KGRT507BWH1 01 – COOKTOP, LITERATURE

Written by

in

KGRT507BWH1 01 – COOKTOP, LITERATURE

Products

PositionProduct
WPL LIT9751686
WPL LIT9751683
WPL LIT9780959
WPL LIT9751761
WPL LIT9752390
WPL LIT9752669
1Cooktop, Ceran (White)
1Cooktop, Ceran (Almond)
1Cooktop, Ceran (Black)
2WP9780939 Whirlpool Cooktop Gasket
3(Trim, Cooktop (Left Hand)) (White)
3Trim, Cooktop (White (Right))
3Trim, Cooktop (Almond (Right))
3Trim, Cooktop (Left Hand) (Almond)
3WPL 9751276PB
3Trim, Cooktop (Black (Right))
4Gasket, Cooktop (Almond)
4Gasket, Cooktop (Black)
4Gasket, Cooktop (Grey)
5Support, Element
6Bracket, Pivot
7Starter, Holder
8Screw, 10-16 x 1
8Support Clip (4)
9Cover, Light (Black)
9Cover, Light (Almond)
9Cover, Light (White)
10Backsplash (Almond)
10Backsplash (Black)
10Backsplash (White)
11Bezel, Cooktop (Small) (Black)
11Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
11Bezel, Cooktop (Small) (White)
12Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
12Bezel, Cooktop (Large) (Black)
12Nut (4)
12Bezel, Cooktop (Large) (White)
13Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
13Grate, Small (LF & RR) (Includes No. 12) (White Model)
13Grate, Small (LF & RR) (Includes No. 12) (Black Model)
14Grate, Large (RF & LR) (Includes No. 12) (White)
14Grate, Large (RF & LR) (Includes No. 12) (Black)
14Grate, Large (RF & LR) (Includes No. 12) (Almond)
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16Cap, Semi Rapid Small (2) (Almond Burner (2))
16Cap, Semi Rapid Small (2) (White)
16Cap, Semi Rapid Small (2) (Black)
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18WPL 4421505
18WPL 4421506
18WPL 4421507
19WPL 9751366
20WP9759944 Whirlpool Thermostat
21Cap, Rapid Burner Large (2) (Almond)
21Cap, Rapid Burner Large (2) (Black)
21Cap, Rapid Burner Large (2) (White)
22WPL 9752006
23Seal, Rubber
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
26Back Splash (Screw (4) 10AB x 1/2“)
27(Endcap, Backsplash (Left Hand)) (Almond)
27Endcap, Backsplash (White (Right))
27Endcap, Backsplash (Almond (Right))
27(Endcap, Backsplash (Left Hand)) (White)
27Endcap, Backsplash (Black (Left))
27Endcap, Backsplash (Black (Right))
28Glass, Backsplash
29Starter, Light
