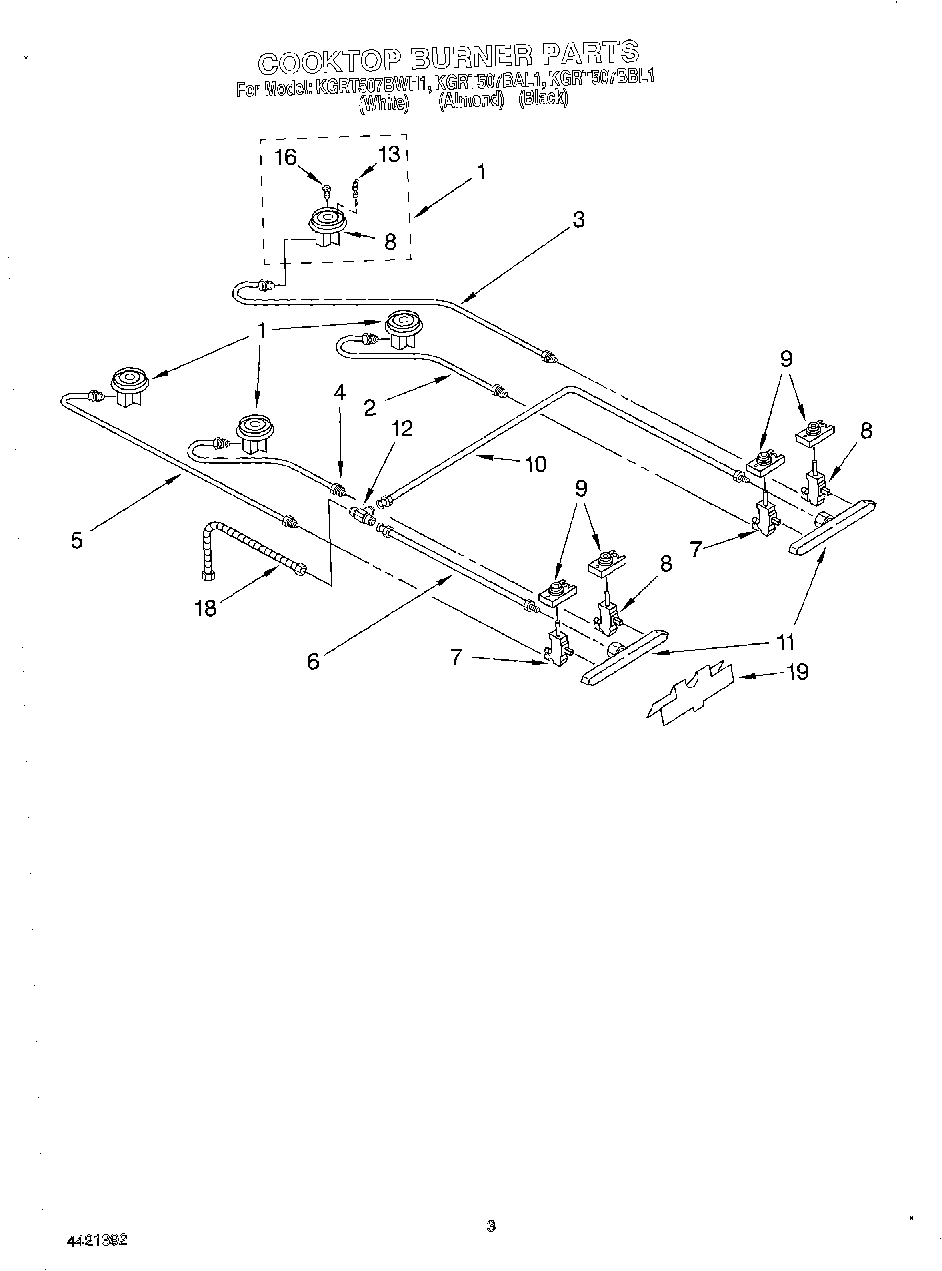

KGRT507BWH1 02 – COOKTOP BURNER

KGRT507BWH1 02 – COOKTOP BURNER

Written by

in

KGRT507BWH1 02 – COOKTOP BURNER

Products

PositionProduct
1WPL 3185821
1WPL 3185822
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Valve, Burner (Small (2))
8Bolt (Gas Valve)
8Valve, Burner (Large (2))
9Switch, Ignitor (4)
10Tubing, Manifold (Right)
11Manifold (2)
12Tee, Flare
13Nut
13Electrode
16Orifice, Burner (Large Burner)
16Orifice 54
18Tubing, Flex
19Bracket, Manifold
