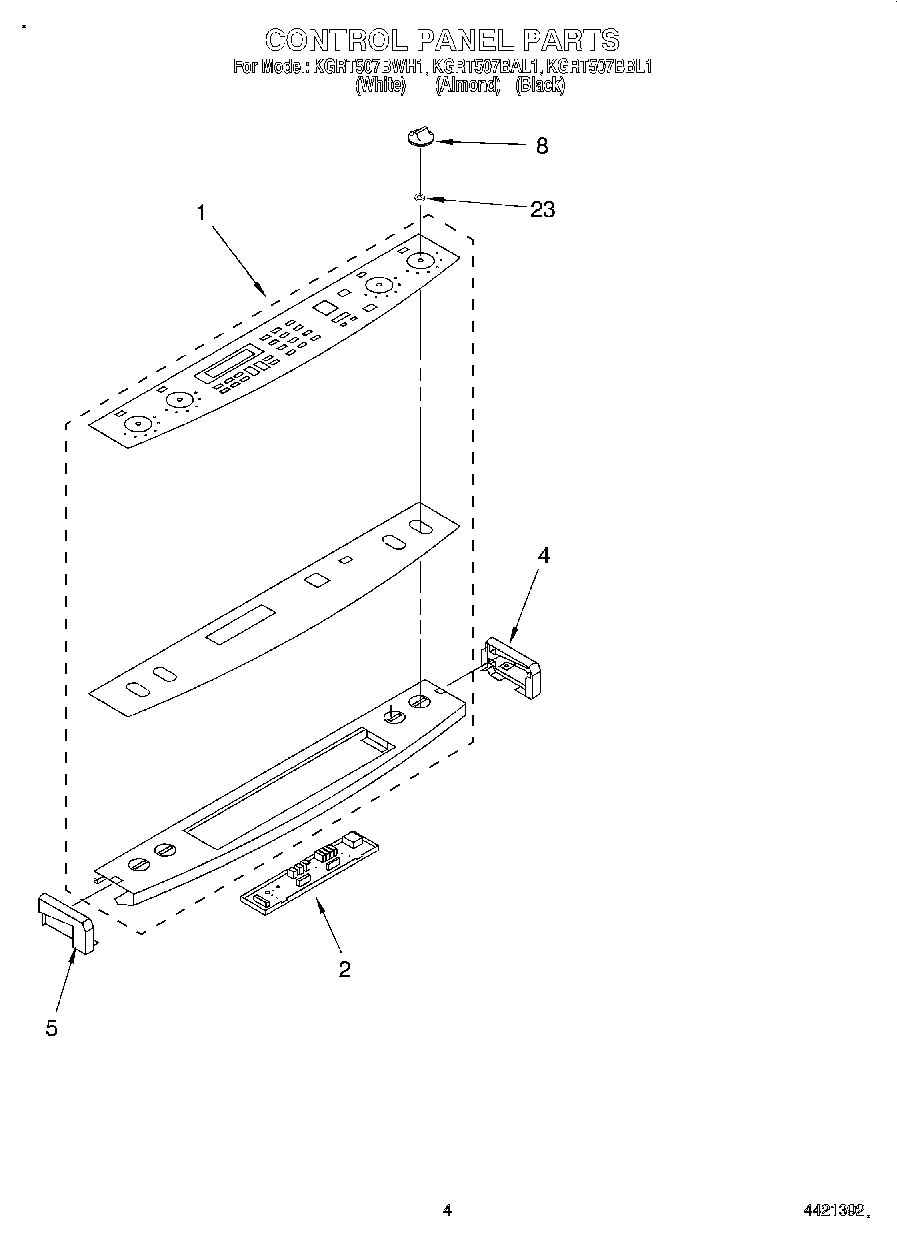

KGRT507BWH1 03 – CONTROL PANEL
Written by
in
KGRT507BWH1 03 – CONTROL PANEL
Products
Position
Product
1
Console, Glass (White Mdl.)
1
Console, Glass (Almond Mdl.)
1
Console, Glass (Black Mdl.)
2
Screw
2
Timer, Electronic
4
End Cap (Black, Right)
4
End Cap (White, Right)
4
End Cap Right Hand (Almond)
5
End Cap (Black, Left)
5
End Cap (Left Hand) (White)
5
End Cap (Left Hand) (Almond)
5
WP4159387 Whirlpool Compactor Screw
8
Knobs, Control (Almond Mdl.)
8
Knobs, Control (White)
8
W10405147 Whirlpool Knob
23
Washer, Console (4) (White Mdl.)
23
Washer, Console (4) (Almond Mdl.)
23
Washer, Console (4) (Black Mdl.)
←
