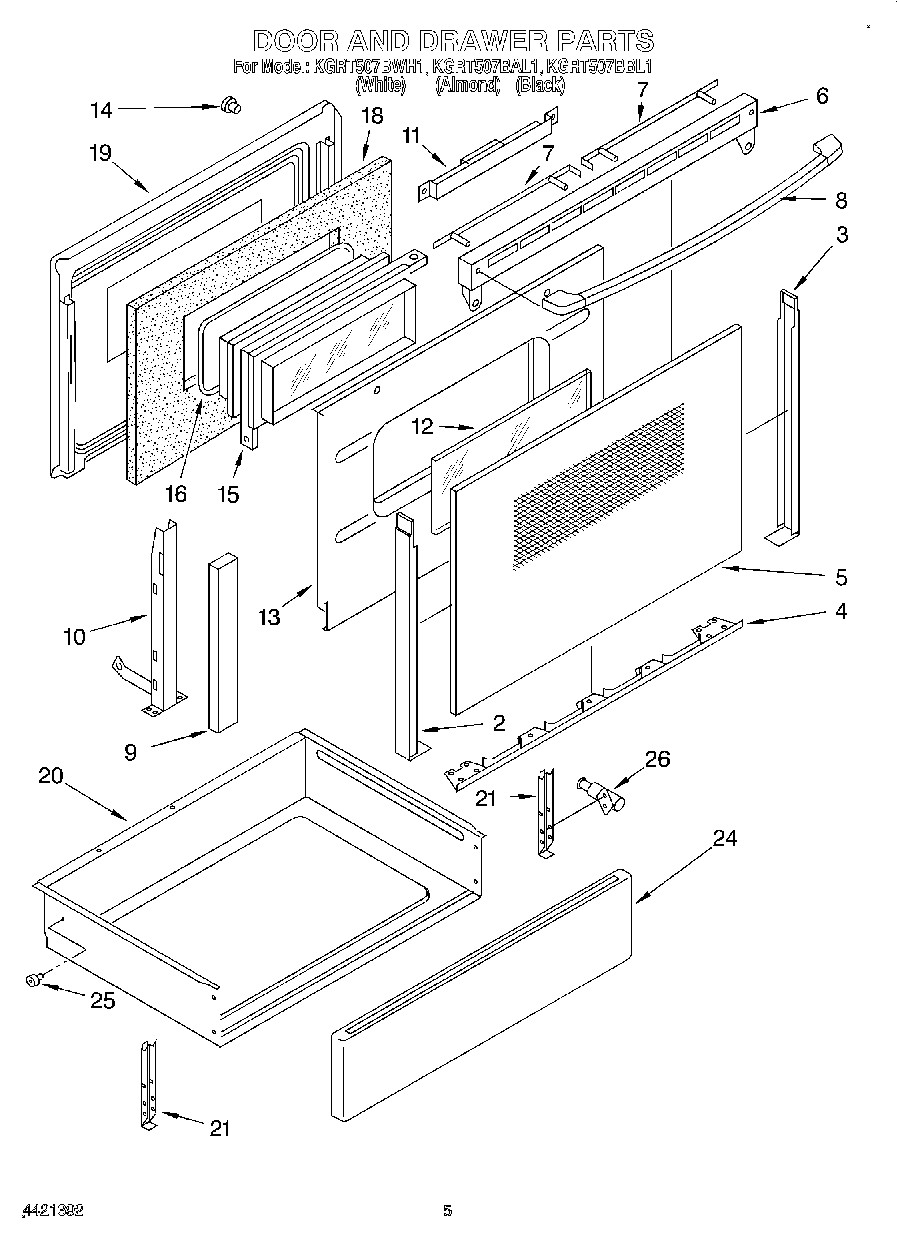

KGRT507BWH1 04 – DOOR & DRAWER

Products

Position	Product
2	Trim, Door-Left (Almond)
2	Trim, Door-Left (Black)
2	Trim, Door-Left (White)
3	Trim, Door-Right (Black)
3	Trim, Door-Right (Almond)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (White)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (Almond)
5	Glass, Door (Almond)
5	Glass, Door (White)
5	Glass, Door (Black)
6	Vent, Door (Black)
6	Vent, Door (White)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Vent, Door (Almond)
7	Vent Back
8	Handle, Door (Almond Mdl.)
8	Handle, Door (Black)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (White)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	WP4159387 Whirlpool Compactor Screw
11	Channel, Heat
12	Baffle, Glass
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	Window Pack (2)
16	Seal, Window
16	Screw
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
21	Screw (4) 10 x 1/2
24	Front, Drawer (Black)
24	Front, Drawer (Almond)
24	Front, Drawer (White)
25	814229 Whirlpool Primary Roller
26	WPL 9780806
26	Latch, Drawer
