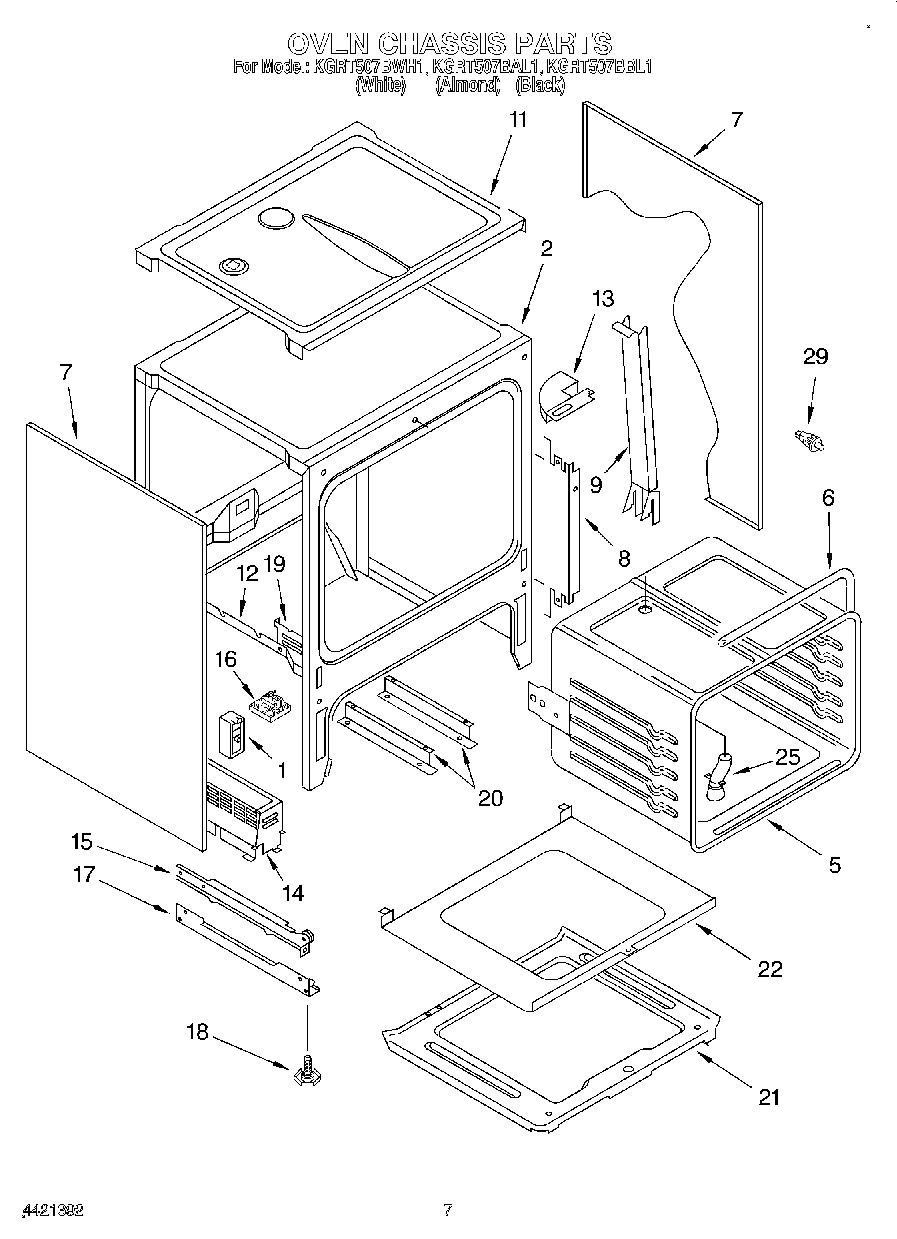

KGRT507BWH1 05 – OVEN CHASSIS

Products

PositionProduct
1WP4454392 Whirlpool Spark Module
2Chassis, Front
5Oven Liner
6Gasket Oven
7Oven , Side L or R (Almond)
7Oven , Side L or R (White)
7Oven , Side L or R (Black)
8Shield, Insulation
9Duct, Side Fan
11Screw
11Burner Box
11Screw, (2)
12Oven Bottom
13Duct, Top
14Support, Fan
15Rail, Drawer (Right)
15Drawer Rail, Left
16Screw, (3) No.8 x 1“
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
19Screw (2) 8 x 3/8
20Support Rail, Pan
21Shield
22Plate, Reflector
25WP4159387 Whirlpool Compactor Screw
25Vent Tube
29W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29WPL 9751844
29WPL 9751164
29WPL 9751745
29Insulation, Rear
29Insulation
29Switch, Door
29WA906B Whirlpool Cooktop Glass Scraper
