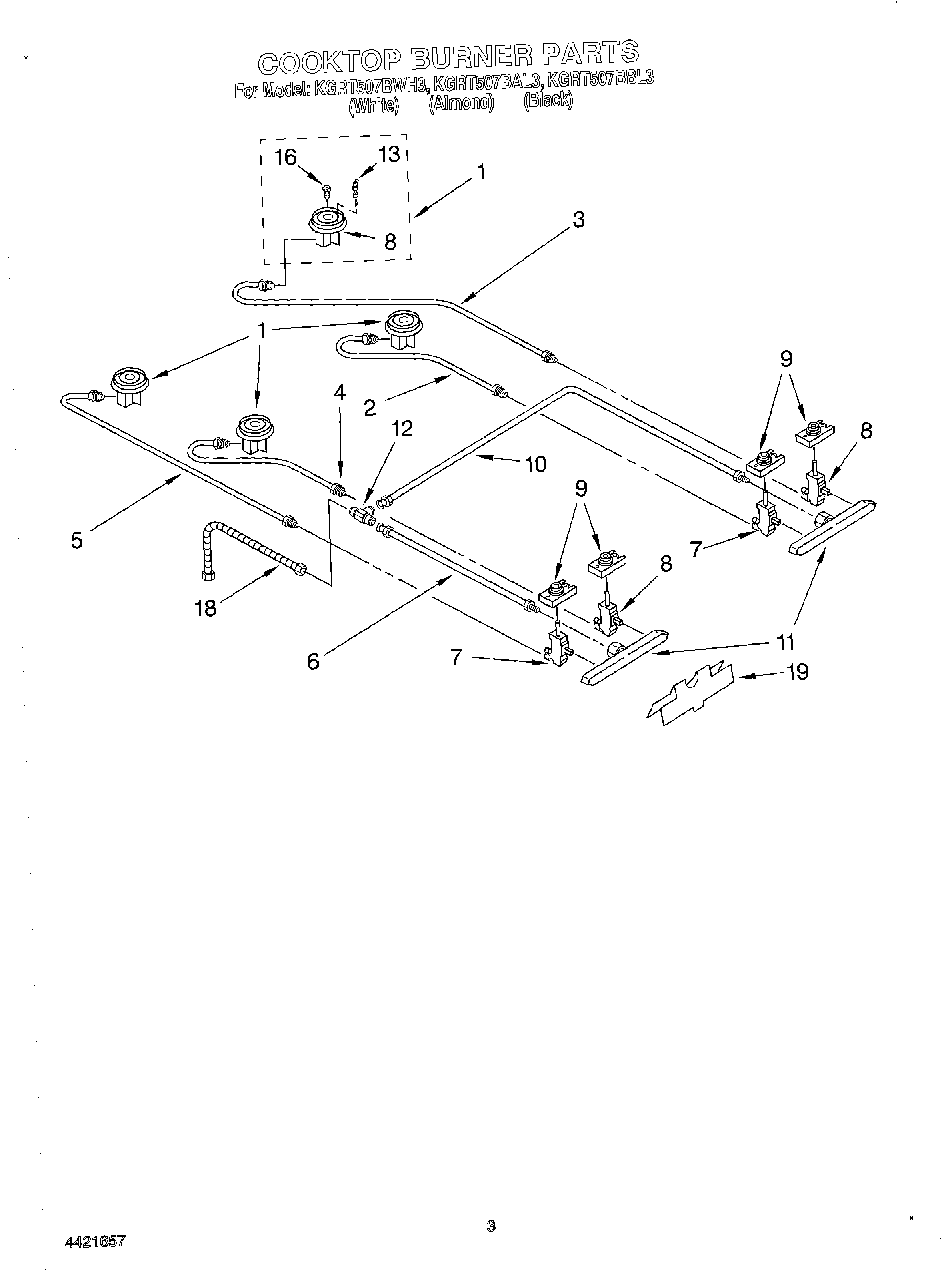

KGRT507BWH3 02 – COOKTOP BURNER

Products

PositionProduct
1WPL 3185821
1WPL 3185822
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Valve, Burner (Small (2))
8Bolt (Gas Valve)
8Valve, Burner (Large (2))
9Switch, Ignitor (4)
10Tubing, Manifold (Right)
11Manifold (2)
12Tee, Flare
13Nut
13Electrode
16Orifice, Burner (Large Burner)
16Orifice, Burner (Small Burner)
18Tubing, Flex
19Bracket, Manifold
