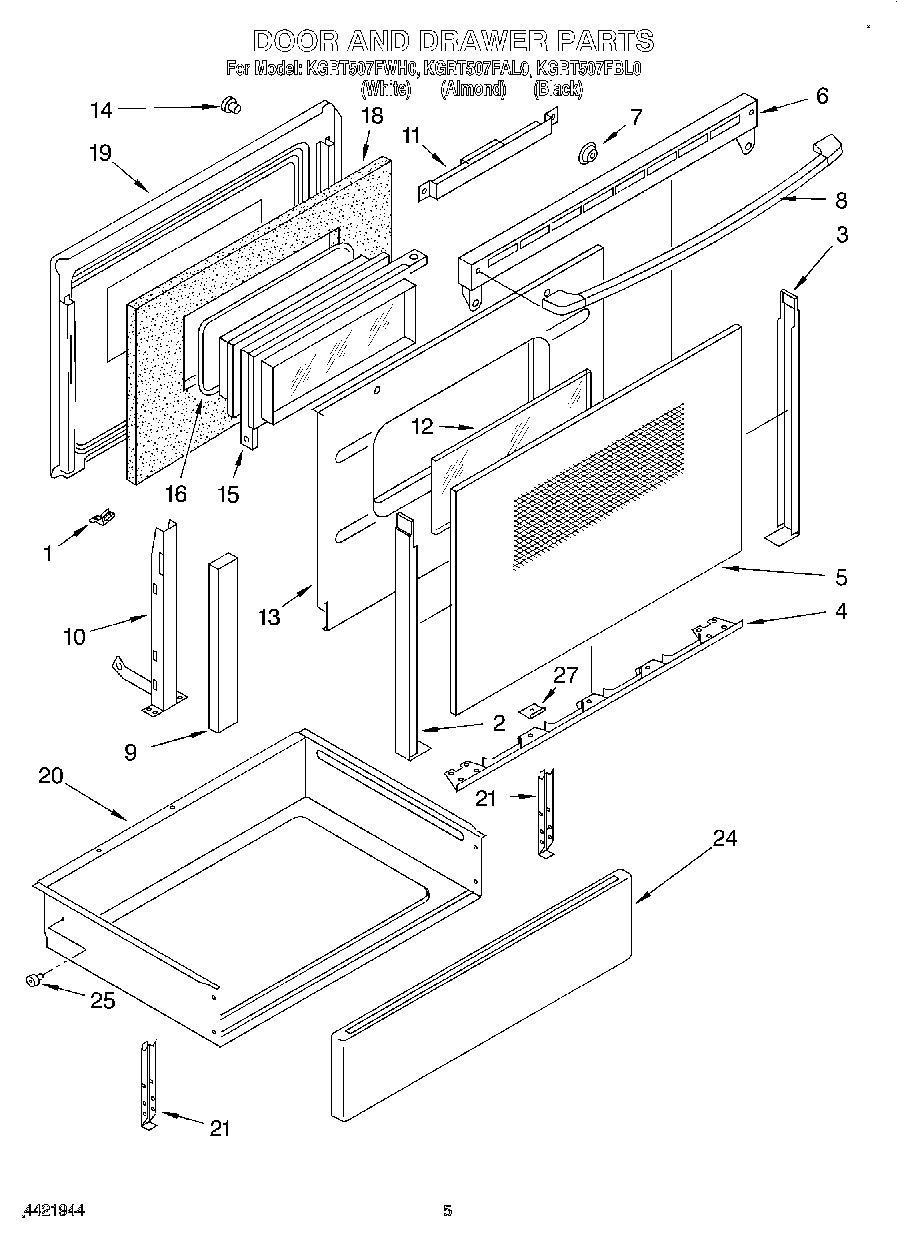

KGRT507FAL0 04 – DOOR AND DRAWER

KGRT507FAL0 04 – DOOR AND DRAWER

Written by

in

KGRT507FAL0 04 – DOOR AND DRAWER

Products

PositionProduct
1Retainer, Glass
2Trim, Door-Left (Almond)
2Trim, Door-Left (Black)
2Trim, Door-Left (White)
3Trim, Door-Right (Almond)
3Trim, Door-Right (White)
3Trim, Door-Right (Black)
4Trim, Door Bottom (Black)
4Trim, Door Bottom (White)
4Trim, Door Bottom (Almond)
5Glass, Door (White)
5Glass, Door (Almond)
5Glass, Door (Black)
6Vent, Door (Almond)
6Vent, Door (Gasket, Vent)
6Vent, Door (White)
6Vent, Door (Black)
6Vent, Door (Seal, Door Vent Side)
7Spacer, Door Vent
8Handle, Door (Almond Mdl.)
8Handle, Door (White)
8Handle, Door (Black)
8WPW10001180 Whirlpool Refrigerator Screw
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
11Channel, Heat
11WP4159387 Whirlpool Compactor Screw
12Baffle, Glass
13Shield, Door
14238614 Whirlpool Bumper Hinge
15Window Pack (2)
16Screw
16Seal, Window
18WPW10208653 Whirlpool Insulation
19Liner, Door
20Drawer & Roller
21Bracket, Drawer
21Screw (4) 10 x 1/2
24Front, Drawer (Black)
24Front, Drawer (Almond)
24Front, Drawer (White)
25WP90296 Whirlpool Clip
25814229 Whirlpool Primary Roller
27Retainer, Glass
