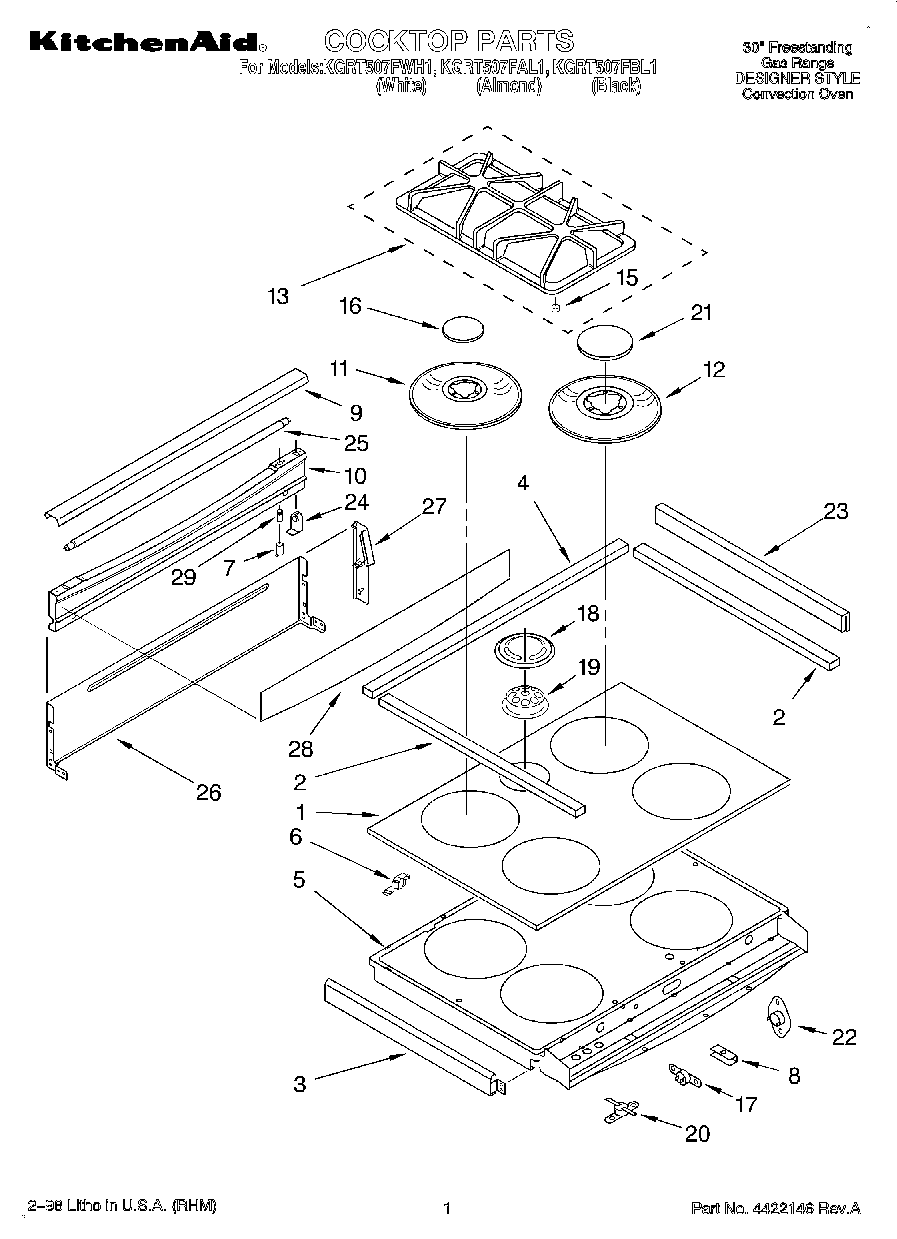

KGRT507FBL1 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Almond)
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Black)
2	WP9780939 Whirlpool Cooktop Gasket
3	Trim, Cooktop (Almond (Right))
3	WPL 9751276PB
3	Trim, Cooktop (White (Right))
3	Trim, Cooktop (Left Hand) (Almond)
3	(Trim, Cooktop (Left Hand)) (White)
3	Trim, Cooktop (Black (Right))
4	Gasket, Cooktop (Grey)
4	Gasket, Cooktop (Black)
4	Gasket, Cooktop (Almond)
5	Support, Element
6	Bracket, Pivot
7	Starter, Holder
8	Support Clip (4)
8	Screw, 10-16 x 1
9	Cover, Light (Black)
9	Cover, Light (White)
9	Cover, Light (Almond)
10	Backsplash (White)
10	Backsplash (Almond)
10	Backsplash (Black)
11	Bezel, Small LR-RF (Black)
11	Bezel, Small LR-RF (Gray)
12	Bezel, Large RR-LF (Black)
12	Bezel, Large RR-LF (Gray)
13	Grates, 2 Burner (Black)
13	Grates, 2 Burner (Gray)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	Cap, Small (2) (Black)
16	Cap, Small (2) (Gray)
17	Thermostat SPST (205)
17	WP4159387 Whirlpool Compactor Screw
18	WPL 9751271GB
18	WPL 9751271GW
18	Cap, Vent (Almond Mdl.)
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	Cap, Large (2) (Gray)
21	Cap, Large (2) (Black)
22	WPL 9752006
23	Seal, Rubber
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Cover, Backsplash
26	Back Splash (Screw (4) 10AB x 1/2“)
27	Endcap, Backsplash (Almond (Right))
27	(Endcap, Backsplash (Left Hand)) (White)
27	(Endcap, Backsplash (Left Hand)) (Almond)
27	Endcap, Backsplash (White (Right))
27	Endcap, Backsplash (Black (Right))
27	Endcap, Backsplash (Black (Left))
28	Glass, Backsplash
29	Starter, Light
