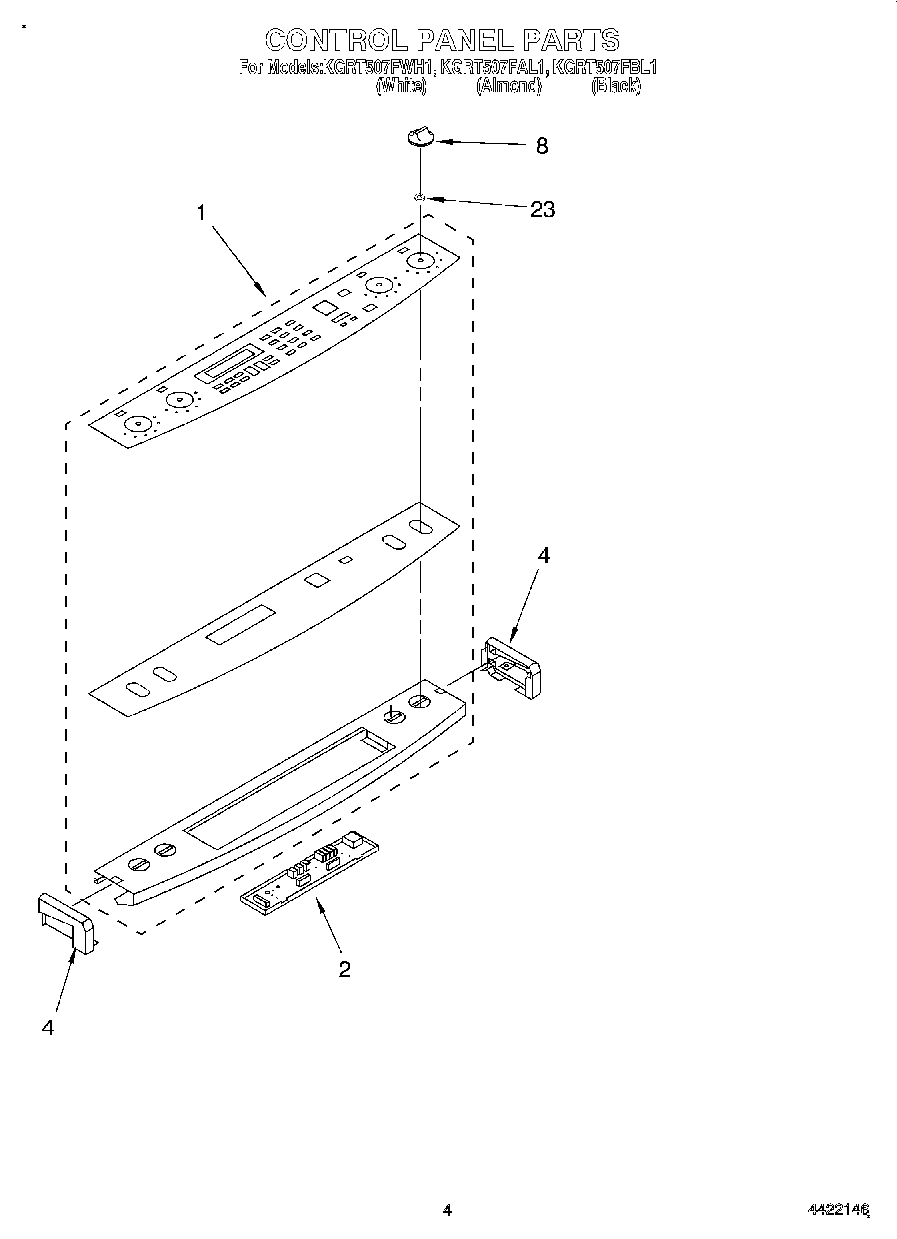

KGRT507FBL1 03 – CONTROL PANELadmin2025-04-26T11:30:43+00:00KGRT507FBL1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Console, Glass (White Mdl.) |
| 1 | Console, Glass (Almond Mdl.) |
| 1 | Console, Glass (Black Mdl.) |
| 2 | Screw |
| 2 | Timer, Electronic |
| 4 | End Cap (Black, Right) |
| 4 | End Cap (White, Right) |
| 4 | End Cap (Black, Left) |
| 4 | End Cap Right Hand (Almond) |
| 4 | End Cap (Left Hand) (White) |
| 4 | End Cap (Left Hand) (Almond) |
| 4 | WP4159387 Whirlpool Compactor Screw |
| 8 | Knobs, Control (Almond Mdl.) |
| 8 | Knobs, Control (White) |
| 8 | W10405147 Whirlpool Knob |
| 23 | Washer, Console (4) (White Mdl.) |
| 23 | Washer, Console (4) (Almond Mdl.) |
| 23 | Washer, Console (4) (Black Mdl.) |
