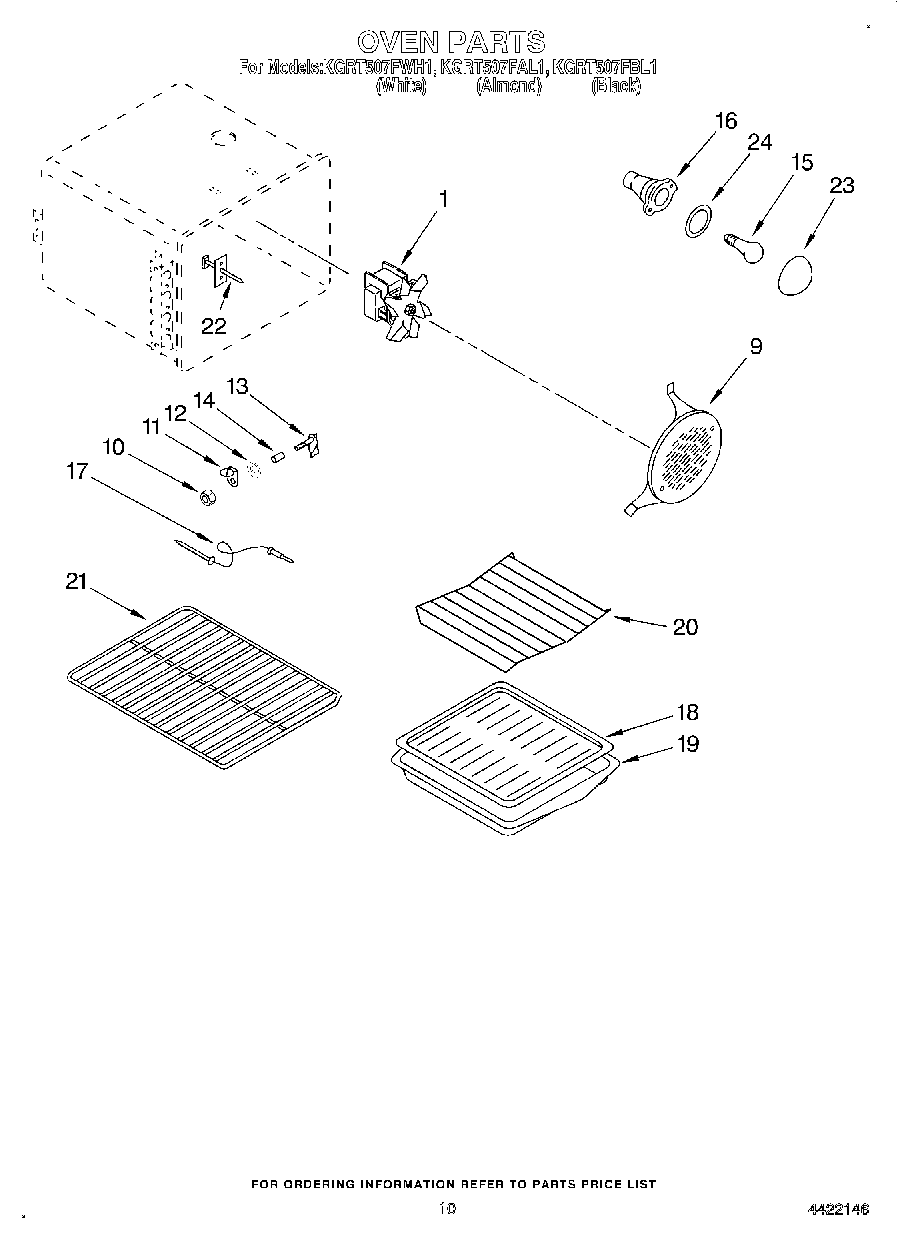

KGRT507FBL1 07 – OVEN

Products

PositionProduct
1Screw (4) 10 x 1/2
1Fan Assembly
9Baffle, Convection
9Screw (2) 8 x 3/8
10Lock-Nut, Cvr.Jack
11Jack Cover
12Gasket, Meat Probe
13Receptacle, Probe
14Spacer – Tubing
15RANGE ONLY 40W 120V APPL BULB
16W11594027 Whirlpool Range Oven Light Socket
17Probe
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Roasting
21Rack, Standard (3)
22Sensor, Heat
22Screw
23WP9781049 Whirlpool Light Lens
24WP3184533 Whirlpool Range Light Lens Gasket
