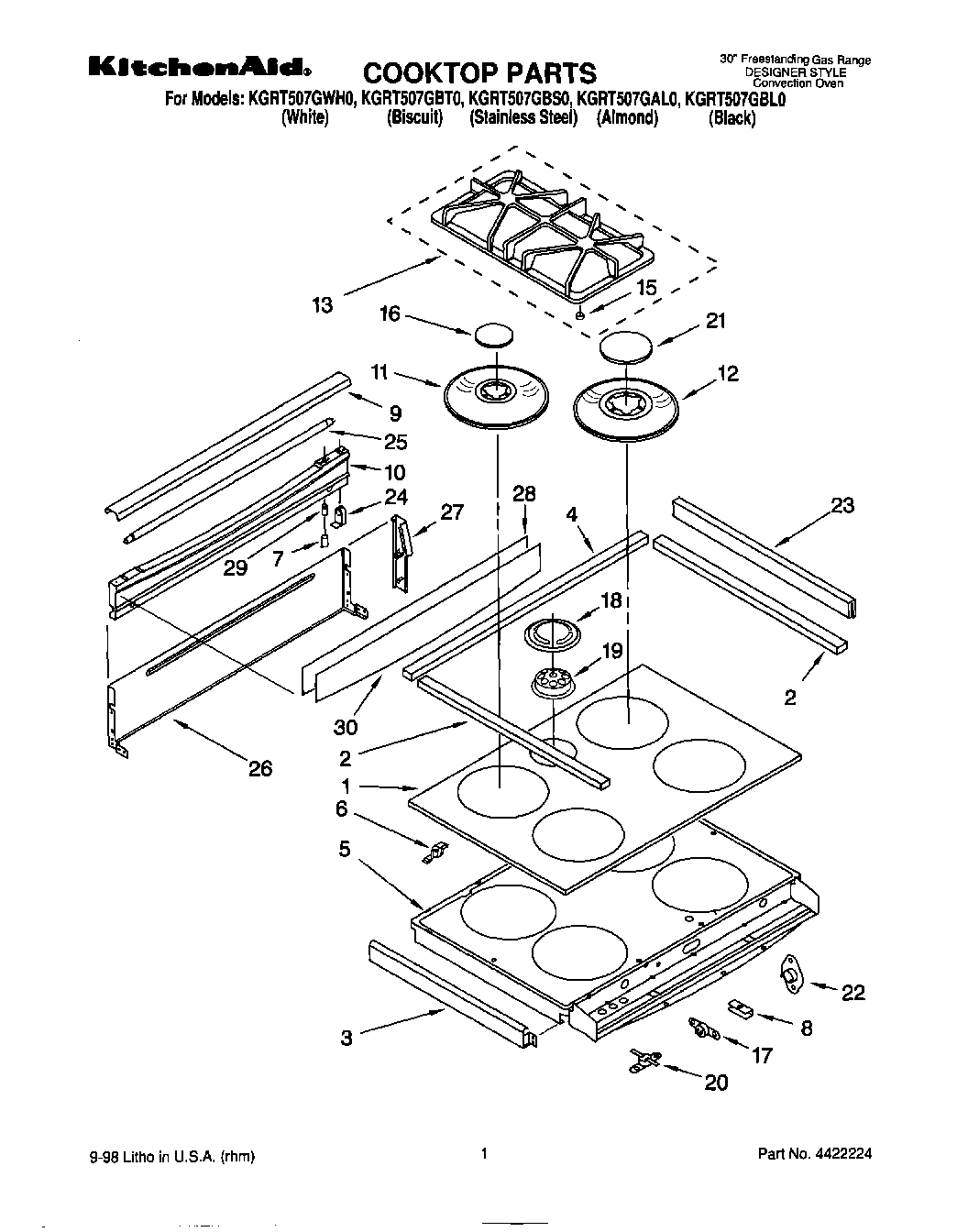

KGRT507GAL0 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Biscuit)
1	Cooktop, Ceran (Black)
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Almond)
2	WP9780939 Whirlpool Cooktop Gasket
3	Trim, Cooktop (Almond (Right))
3	Trim, Cooktop (White (Right))
3	Trim, Cooktop (Left Hand) (Almond)
3	(Trim, Cooktop (Left Hand)) (White)
3	WPL 9751276PC
3	Trim, Cooktop (Black (Right))
3	WPL 9751275PC
3	WPL 9751276PB
4	Gasket, Cooktop (Almond)
4	Gasket, Cooktop (Black)
5	Support, Element
6	Bracket, Pivot
7	Starter, Holder
8	Support Clip (4)
8	Screw, 10-16 x 1
9	Cover, Light (Black)
9	Cover, Light (Almond)
9	Cover, Light (White)
9	Cover, Light (Biscuit)
10	Backsplash (Biscuit)
10	Backsplash (Black)
10	Backsplash (White)
10	Backsplash (Almond)
11	Bezel, Small LR-RF (Gray)
11	Bezel, Small LR-RF (Moleskin)
11	Bezel, Small LR-RF (Black)
12	Bezel, Large RR-LF (Black)
12	Bezel, Large RR-LF (Gray)
12	Bezel, Large RR-LF (Moleskin)
13	Grates, 2 Burner (Gray)
13	Grate, 2 Burner (Moleskin)
13	Grates, 2 Burner (Black)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	Cap, Semi Rapid Small (2) (Black)
16	Cap, Burner Small (1) (Gray (Des. Wht Mdl))
16	Cap, Small (2) (Moleskin)
17	Thermostat SPST (205)
17	WP4159387 Whirlpool Compactor Screw
18	Cap, Vent (Almond Mdl.)
18	WPL 9751271GC
18	WPL 9751271GW
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	WPL 9752666GM
21	(Cap, Burner Large (3)) (Gray (Des. Wht Mdl))
21	Cap, Rapid Burner Large (2) (Black)
22	WPL 9752006
23	Seal, Rubber
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Back Splash (Screw (4) 10AB x 1/2“)
26	Cover, Backsplash
27	(Endcap, Backsplash (Left Hand)) (Almond)
27	Endcap, Backsplash (Black (Left))
27	Endcap, Backsplash (Black (Right))
27	(Endcap, Backsplash (Left Hand)) (White)
27	Endcap, Backsplash (Almond (Right))
27	Endcap, Backsplash (White (Right))
27	(Endcap, (Left Hand)) (Biscuit)
27	Endcap, Backsplash (Right Hand) (Biscuit)
28	Glass, Backsplash
28	WP9753292 Whirlpool Backsplash Glass
29	Starter, Light
30	WPL 9753291
