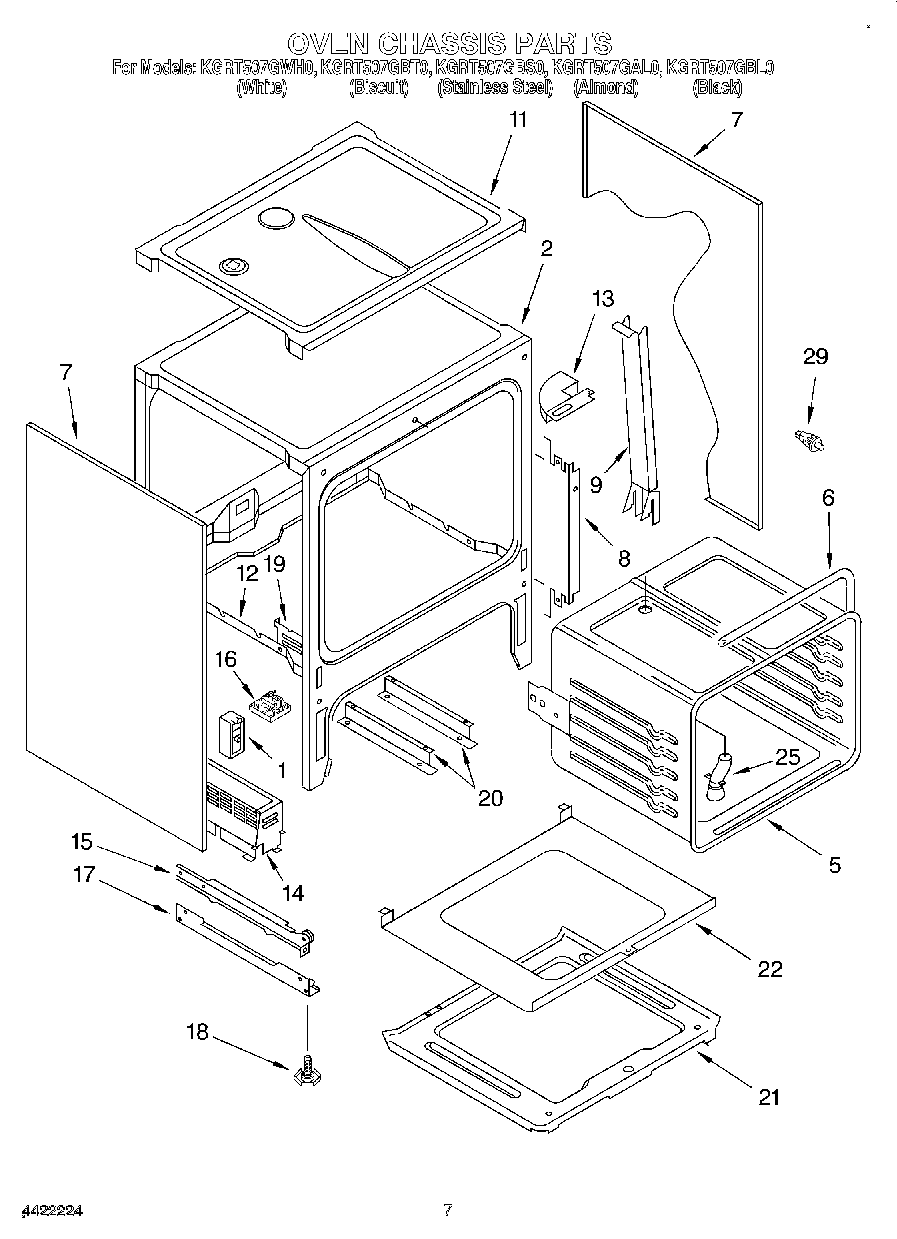

KGRT507GBS0 05 – OVEN CHASSIS

Products

Position	Product
1	8528351 Whirlpool Clip
1	WP4454392 Whirlpool Spark Module
2	Chassis, Front
5	Oven Liner
6	Gasket, Oven
7	Oven , Side L or R (White)
7	Oven , Side L or R (Biscuit)
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (Black)
8	Shield, Insulation
9	Duct, Side Fan
11	Screw
11	Screw, (2)
11	Burner Box
12	Retainer, Insulation
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Screw, (3) No.8 x 1``
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (2) 8 x 3/8
19	Hinge, Receiver (2)
20	Support Rail, Pan
21	Shield
22	Plate, Reflector
25	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
29	Switch, Door
