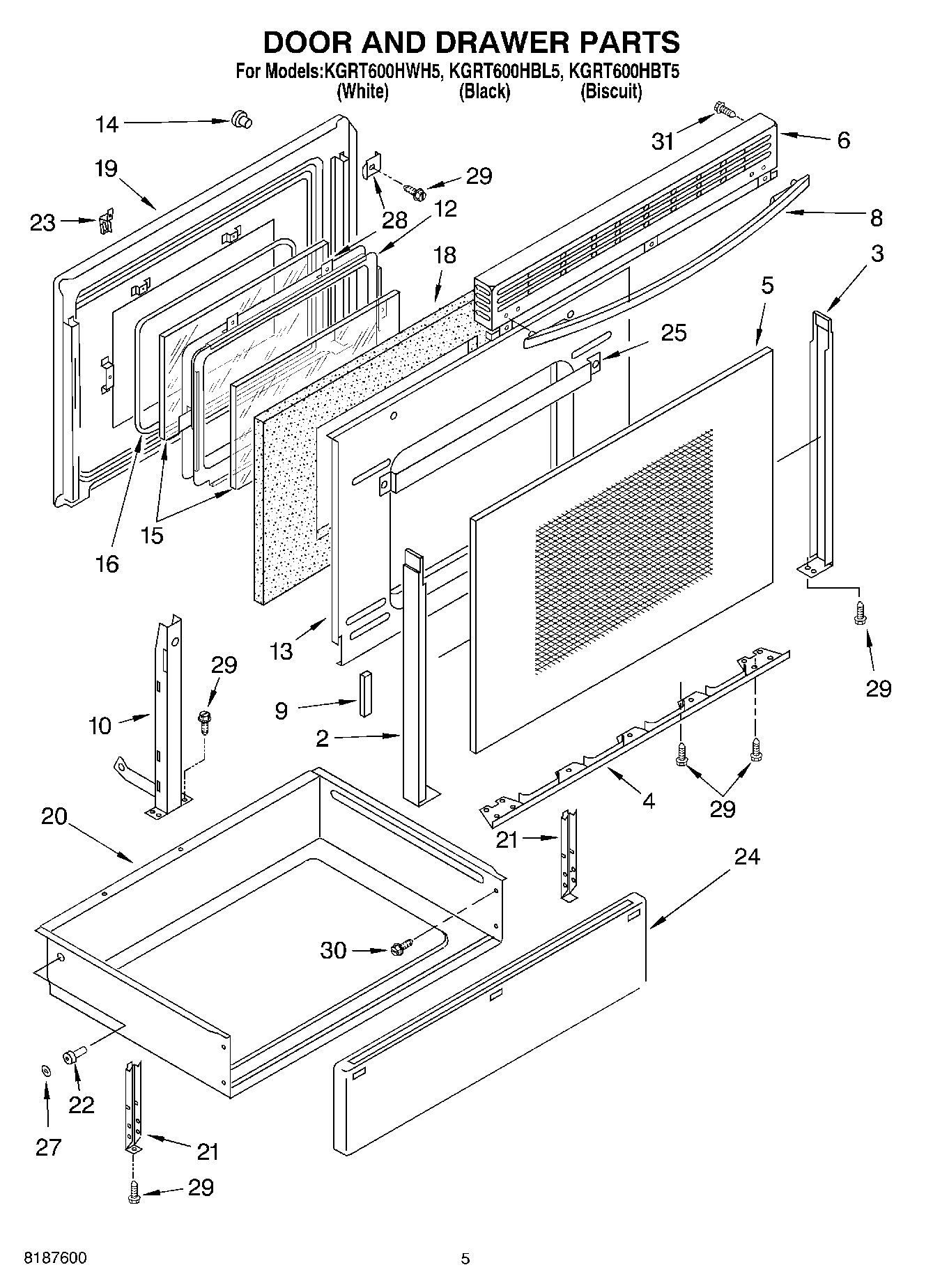

KGRT600HBL5 04 – DOOR AND DRAWER

Products

Position	Product
2	Trim, Door-Left (Black)
2	Trim, Door-Left (Biscuit)
2	Trim, Door-Left (White)
3	Trim, Door-Right (Black)
3	Trim, Door-Right (Biscuit)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (Biscuit)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (White)
5	Glass, Door Front (White)
5	Glass, Door Front (Biscuit)
5	Glass, Door (Black)
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (White)
6	Vent, Door (Biscuit)
6	Vent, Door (Black)
8	Handle, Door (Black)
8	Handle, Door (Biscuit)
8	Handle, Door (White)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
23	Retainer, Glass
24	Front, Drawer (Biscuit)
24	Front, Drawer (Black)
24	Front, Drawer (White)
25	Channel, Heat
27	WP90296 Whirlpool Clip
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
30	Screw (4) 10 x 1/2
31	WPW10001180 Whirlpool Refrigerator Screw
