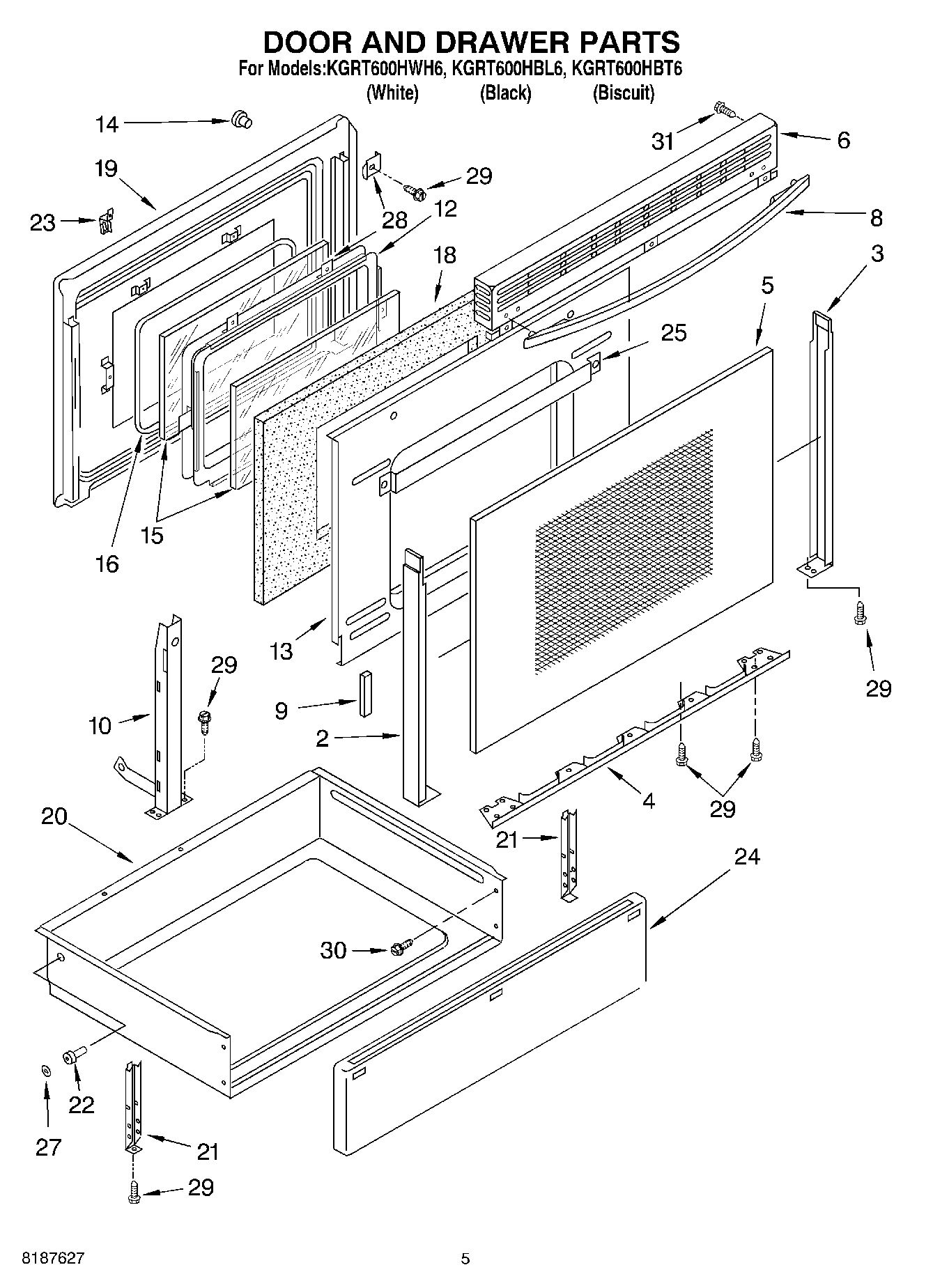

KGRT600HBL6 04 – DOOR AND DRAWER
Written by
in
KGRT600HBL6 04 – DOOR AND DRAWER
Products
Position
Product
2
Trim, Door-Left (Black)
2
Trim, Door-Left (Biscuit)
2
Trim, Door-Left (White)
3
Trim, Door-Right (Black)
3
Trim, Door-Right (Biscuit)
3
Trim, Door-Right (White)
4
Trim, Door Bottom (Biscuit)
4
Trim, Door Bottom (Black)
4
Trim, Door Bottom (White)
5
Glass, Door Front (White)
5
Glass, Door Front (Biscuit)
5
Glass, Door (Black)
6
Vent, Door (Seal, Door Vent Side)
6
Vent, Door (Gasket, Vent)
6
Vent, Door (White)
6
Vent, Door (Biscuit)
6
Vent, Door (Black)
8
Handle, Door (Black)
8
Handle, Door (Biscuit)
8
Handle, Door (White)
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
12
Frame, Window
13
Shield, Door
14
238614 Whirlpool Bumper Hinge
15
WP9781593 Whirlpool Door Glass
16
WP9755177 Whirlpool Wind Gasket
18
Insulation, Door
19
Liner, Door
20
Drawer & Roller
21
Bracket, Drawer
22
814229 Whirlpool Primary Roller
23
Retainer, Glass
24
Front, Drawer (Biscuit)
24
Front, Drawer (Black)
24
Front, Drawer (White)
25
Channel, Heat
27
WP90296 Whirlpool Clip
28
Spacer, Door (8)
29
WP4159387 Whirlpool Compactor Screw
30
Screw (4) 10 x 1/2
31
WPW10001180 Whirlpool Refrigerator Screw
←
