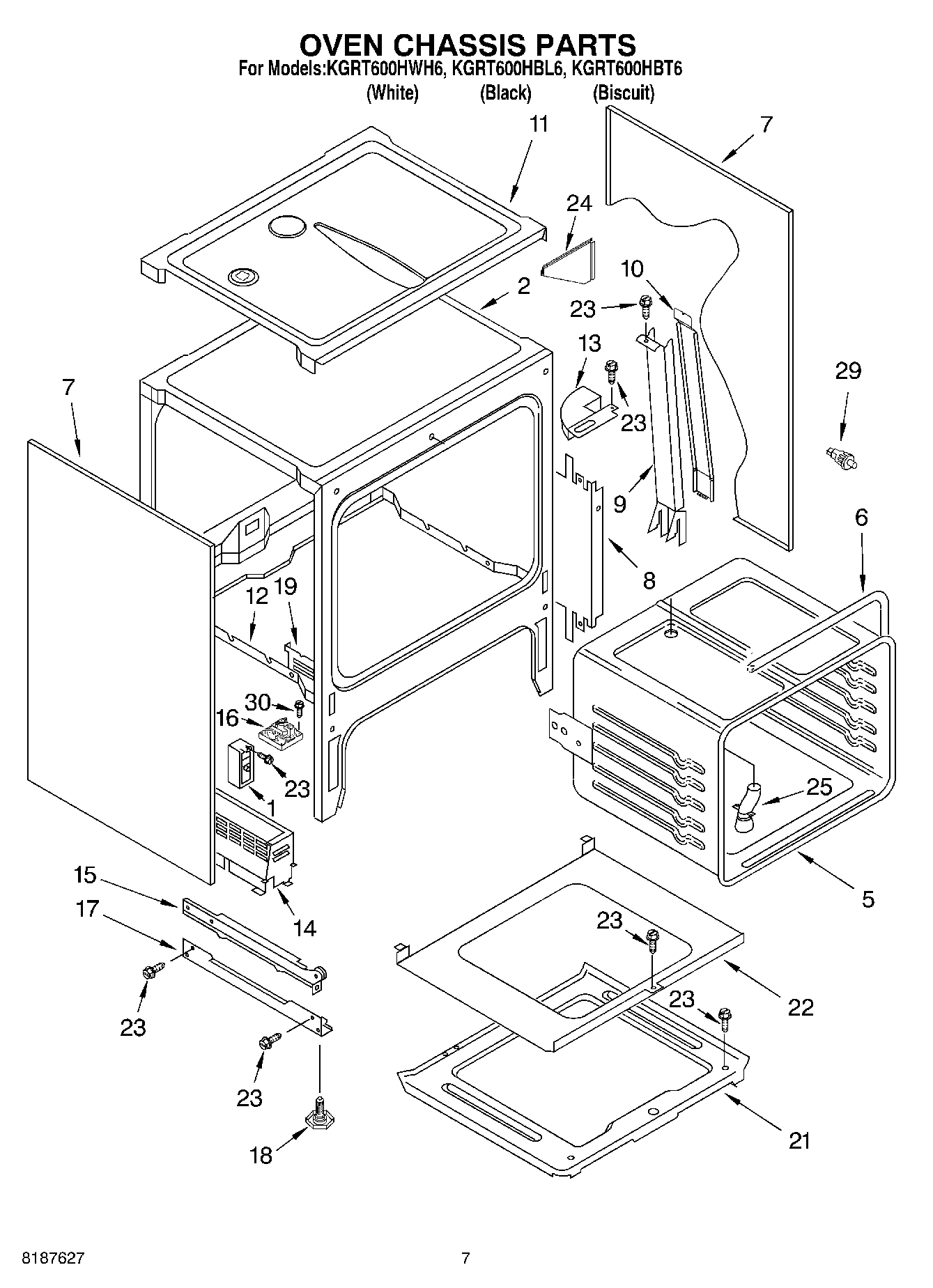

KGRT600HBL6 05 – OVEN CHASSIS

KGRT600HBL6 05 – OVEN CHASSIS

Written by

in

KGRT600HBL6 05 – OVEN CHASSIS

Products

PositionProduct
1WP8053421 Whirlpool Oven Spark Module
18528351 Whirlpool Clip
2Chassis, Front
5Oven Liner
6Gasket, Oven
7Body, Side (Black)
7Body, Side (Biscuit)
7Body, Side (White)
8Shield, Insulation
9Duct, Side Fan
10Fan Duct, Cover
11Burner Box
12Retainer, Insulation
13Duct, Top
14Support, Fan
15Rail, Drawer (Right)
15Drawer Rail, Left
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
21Shield
22Plate, Reflector
23WP4159387 Whirlpool Compactor Screw
24Shield, Heat
25Vent Tube
29Door Switch
30Screw, (3) No.8 x 1“
